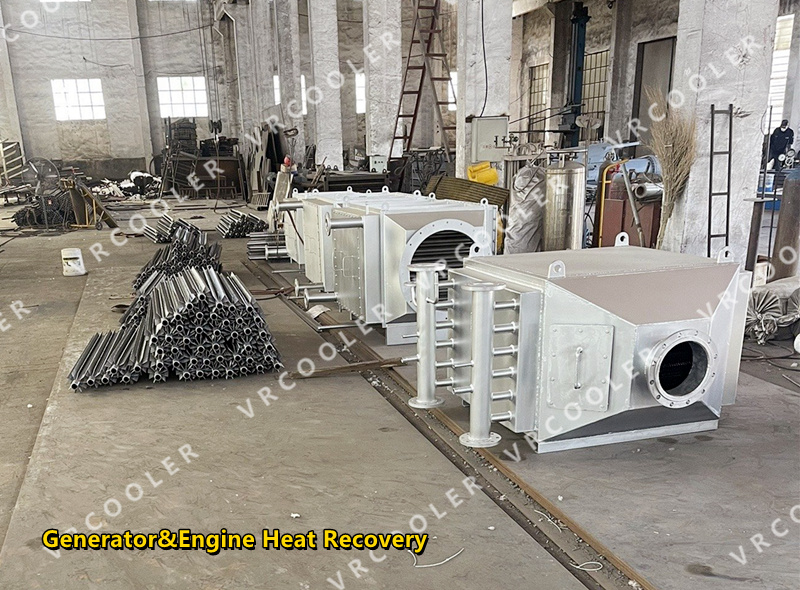

Exhaust Gas Heat Exchangers (EGHE) for CAT Gas Generator Power Plants

In CAT (Caterpillar) gas generator power plants, Exhaust Gas Heat Exchangers (EGHE) are key components of combined heat and power (CHP) and cogeneration systems. Their function is to recover high-grade thermal energy from engine exhaust gases and convert it into usable heat for steam, hot water, or thermal oil systems—significantly improving overall plant efficiency.

1. Role of EGHE in CAT Gas Generator Systems

CAT gas engines typically exhaust gases at 400–550°C, depending on engine model and load. Without heat recovery, this energy is discharged to the atmosphere. An EGHE captures this waste heat and transfers it to a secondary medium, enabling:

• Steam generation for industrial processes

• Hot water production for district heating or plant utilities

• Thermal oil heating for process or absorption chillers

• Increased total system efficiency (up to 80–90% in CHP mode)

2. Working Principle of Exhaust Gas Heat Exchangers

The EGHE operates on an indirect heat transfer principle:

1. Hot exhaust gas inlet: Exhaust gas flows from the CAT engine turbocharger into the heat exchanger.

2. Heat transfer section: Exhaust gas passes over tube bundles or finned surfaces.

3. Energy absorption: Water, steam, or thermal oil flows inside the tubes, absorbing sensible heat from the exhaust gas.

4. Cooled exhaust outlet: Exhaust gas exits at a significantly reduced temperature, typically 120–180°C.

5. Recovered heat utilization: Heated medium is delivered to steam drums, hot water tanks, or process users.

This process occurs without mixing exhaust gas and process fluid, ensuring system safety and cleanliness.

3. Typical EGHE Configurations for CAT Gas Engines

3.1 Hot Water Exhaust Gas Heat Exchanger

• Output temperature: 80–95°C

• Used for space heating, domestic hot water, or jacket water integration

• Common in CHP plants and district heating applications

3.2 Steam Exhaust Gas Boiler

• Produces saturated steam (0.5–1.6 MPa typical)

• Suitable for textile, food, chemical, and industrial processes

• Can be single-pressure or multi-pressure design

3.3 Thermal Oil Exhaust Gas Heater

• Outlet temperature up to 300°C

• Used where high-temperature heat is required without high pressure

• Compatible with absorption chillers and industrial dryers

4. Structural Design Features

4.1 Heat Exchange Core

• Tube material: Carbon steel, alloy steel, or stainless steel (depending on exhaust composition)

• Tube type: Plain tubes, finned tubes, or spiral fin tubes

• Designed to withstand thermal cycling and vibration from engine operation

4.2 Exhaust Gas Casing

• Fully welded steel structure

• Insulated to reduce heat loss and protect personnel

• Includes expansion joints to accommodate thermal expansion

4.3 Bypass and Control System

• Exhaust gas bypass damper to protect engine during startup or low load

• Temperature and pressure sensors integrated with CAT control systems

• Ensures safe engine backpressure within CAT limits

5. Key Design Considerations for CAT Gas Generator EGHE

When selecting or designing an EGHE for CAT gas engines, the following parameters are critical:

• Allowable exhaust backpressure (strictly per CAT engine specifications)

• Exhaust gas flow rate and temperature

• Fuel type: Natural gas, biogas, landfill gas

• Corrosive components: Sulfur, siloxanes, moisture

• Load profile: Base load vs. variable load operation

• Maintenance accessibility

Failure to control backpressure or corrosion can negatively affect engine performance and service life.

6. Performance Advantages of EGHE Integration

Installing an EGHE in a CAT gas generator power plant provides:

• 20–40% additional usable energy recovery

• Reduced fuel consumption per unit of useful energy

• Lower CO₂ emissions per kWh

• Faster ROI for CHP and trigeneration projects

• Improved overall plant sustainability and compliance with energy regulations

7. Typical Technical Parameters (Indicative)

• Exhaust gas inlet temperature: 400–550°C

• Exhaust gas outlet temperature: 120–180°C

• Heat recovery capacity: 200–2,500 kW (engine-dependent)

• Design pressure (water/steam side): Up to 2.5 MPa

• Materials: Carbon steel / SS304 / SS316 / alloy steel

• Installation: Horizontal or vertical inline with exhaust stack

8. Maintenance and Reliability

Properly designed EGHE systems for CAT gas engines offer long service life with minimal maintenance:

• Periodic soot and dust cleaning on gas side

• Monitoring of pressure drop and temperature difference

• Inspection for corrosion or fouling (especially in biogas applications)

Stainless steel or coated tube options are recommended when operating with biogas or landfill gas.

9. Conclusion

Exhaust Gas Heat Exchangers (EGHE) are essential components in CAT gas generator power plants aiming for high efficiency and low operating costs. By recovering high-temperature exhaust energy and converting it into valuable thermal output, EGHE systems transform conventional power generation into efficient CHP or trigeneration solutions.
