Heat Exchanger Cooling Coils for Battery Cabinets and Energy Storage Thermal Management

Battery cabinets may look compact from the outside, but inside they contain cells, busbars, control components, and power electronics that all generate heat during charging, discharging, and standby operation. If that heat is not managed properly, cabinet temperature can rise quickly, cell performance can become uneven, and battery life may be shortened. This is why heat exchanger cooling coils are an important part of modern battery cabinet thermal management.

A cooling coil for a battery cabinet is designed to remove unwanted heat from the enclosure and help keep the internal temperature within a safe and stable range. In many systems, the coil works with air circulation fans, liquid coolant, or a dedicated cabinet cooling unit. Heat from the battery compartment is transferred to the coil surface, and then carried away by chilled water, glycol, refrigerant, or another cooling medium depending on the system design. The result is a more controlled internal environment for the batteries and associated electrical components.

For battery cabinets, temperature stability matters just as much as cooling capacity. It is not enough to simply lower the average temperature. The system also needs to reduce hot spots and keep temperature distribution as even as possible across the cabinet. Uneven temperatures can cause battery modules to age at different rates, which affects performance consistency and overall system reliability. A properly designed heat exchanger coil helps improve airflow and heat transfer inside the cabinet, supporting better thermal balance.

These cooling coils are used in many applications, including lithium battery cabinets, outdoor telecom energy storage cabinets, UPS battery enclosures, industrial ESS cabinets, and containerized battery systems with modular internal sections. Some are installed in small indoor cabinets where space is limited, while others are used in outdoor enclosures exposed to high ambient temperatures, dust, and changing weather conditions. Because of this, coil design often needs to be customized rather than selected as a standard HVAC part.

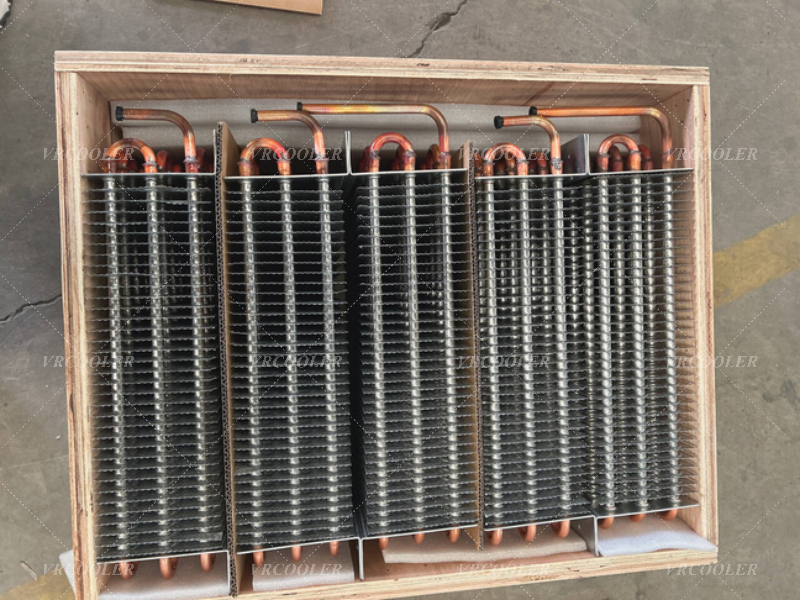

Material choice depends on the application. Copper tube aluminum fin coils are common when good heat transfer and cost efficiency are the main priorities. Stainless steel options may be considered when the environment is more demanding or when there are special cleanliness or durability requirements. Fin spacing, tube size, row number, and coil face area all influence how the unit performs. In battery cabinet applications, engineers also pay close attention to compact size, low air-side pressure drop, and compatibility with the cabinet’s fan and airflow layout.

In liquid-cooled battery cabinets, the cooling coil may be connected to a water-glycol loop that carries heat away from the enclosure. In air-cooled or hybrid systems, the coil may be integrated into a cabinet air conditioner or closed-loop heat exchanger assembly. The exact configuration depends on cabinet size, battery heat load, ambient conditions, and the target internal temperature range. For outdoor energy storage equipment, coils are often part of a larger thermal management package that includes fans, controls, sensors, and protective housing.

A well-designed heat exchanger cooling coil can bring several practical benefits to battery cabinets. It can improve thermal stability, reduce internal component stress, support longer battery life, and help maintain safer operation during high-load conditions. It can also reduce the risk of system derating caused by excessive temperature. For cabinet manufacturers and integrators, this means better product reliability and more predictable field performance.

Customization is often the key advantage. Battery cabinets vary widely in dimensions, airflow paths, cooling methods, and power density. A custom coil can be built to match the cabinet layout, connection positions, mounting requirements, and target duty. This makes installation easier and allows the cooling system to work more efficiently within the available space. For OEM projects, custom heat exchanger coils are often the best way to balance performance, compact design, and manufacturing practicality.

As battery energy storage continues to expand across telecom, renewable energy, industrial backup, and grid-support applications, cabinet cooling will remain a critical design issue. Heat exchanger cooling coils are one of the core components that make this possible. By removing heat efficiently and helping maintain a stable internal environment, they support the safety, performance, and service life of battery cabinet systems.
