In any power station, the generator is expected to run steadily for long hours, often under heavy load. That also means it is constantly producing heat. If that heat is not removed in time, the generator can run too hot, insulation can age faster, and the risk of failure goes up. That is exactly why a generator surface air cooler is so important.
Put simply, this cooler removes heat from the air circulating inside the generator. Hot air passes across the outside of the cooler, cooling water flows inside the tubes, and the heat moves from the air to the water. The two media do not mix. Only heat is transferred through the metal surface. That is where the name “surface air cooler” comes from.
Its job is simple, but essential. It keeps the generator’s internal air at a controlled temperature so the machine can operate safely and efficiently.
As the generator runs, the windings, iron core, and internal components all give off heat. The ventilation air picks up this heat and carries it to the cooler. The cooler then removes that heat before the air is sent back through the generator again.
Without this cycle, temperatures would keep rising and the generator would quickly move into an unsafe operating condition.
A generator is one of the most valuable pieces of equipment in the plant. When it overheats, the consequences are never small. Reduced efficiency, unexpected trips, damage to insulation, and shorter service life are all possible.
A properly sized surface air cooler helps avoid those problems by keeping the generator temperature stable during operation. This is especially important in plants that run continuously, such as thermal power stations, gas-fired power plants, combined cycle plants, and industrial captive power units.
In real plant operation, reliability matters more than theory. A good cooler is not just about heat transfer on paper. It has to hold up under vibration, long service hours, changing loads, and real site conditions.
The working principle is straightforward.
Hot air from inside the generator is directed across the cooler surface. Cooling water flows through the tubes inside the cooler. As the air moves over the tubes, its heat is transferred into the water. The cooled air is then recirculated back into the generator.
This continuous cooling cycle keeps the generator within its normal temperature range.
Because the water stays inside the tubes and the air stays outside, the system remains clean and controlled. That separation is a major advantage in generator cooling applications.
Generator surface air coolers are used in many types of power stations, including:
steam turbine power plants
gas turbine power plants
combined cycle plants
hydro power stations
diesel and gas engine power plants
industrial power generation systems
They are commonly found in both new units and retrofit projects, especially where existing coolers have suffered from corrosion, tube leakage, fouling, or poor cooling performance after years of service.

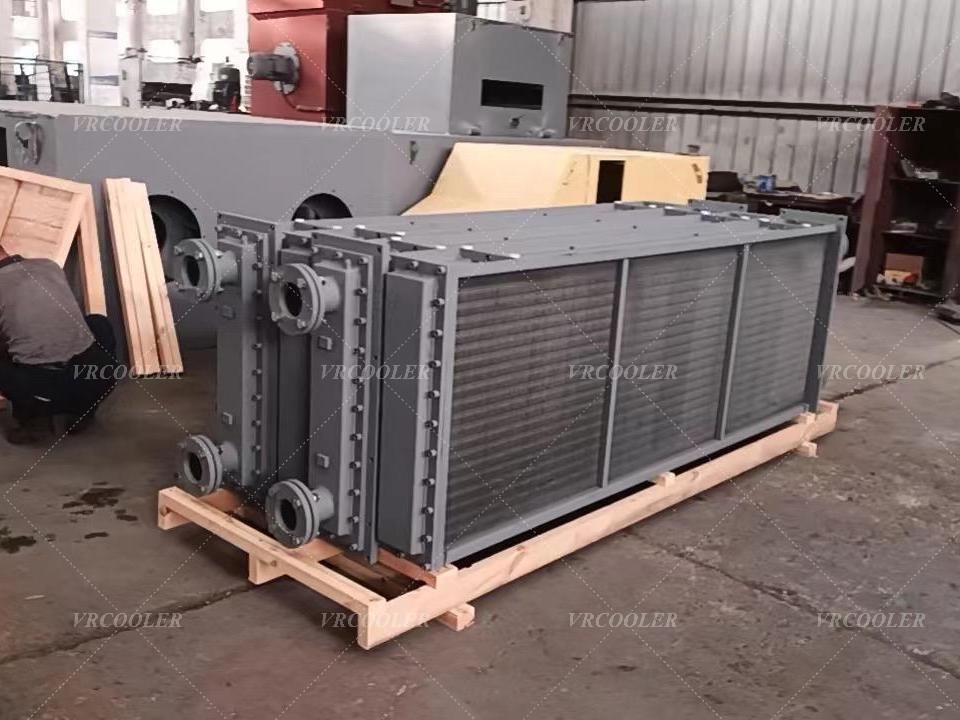

Most generator surface air coolers are built as tube bundle heat exchangers designed for dependable industrial use. Depending on the application, they may include copper tubes, stainless steel tubes, aluminum fins, steel casings, water headers, and removable bundles for easier maintenance.
Some projects require compact dimensions because the cooler has to fit into an existing generator housing. Others may need upgraded materials because the original unit failed due to poor water quality or corrosive site conditions.
In retrofit work, matching the original dimensions is often just as important as meeting the thermal duty.
A generator air cooler should never be chosen by size alone. Several operating conditions have to be considered:
required heat load
air flow volume
cooling water temperature
allowable pressure drop
available installation space
water quality
maintenance access
material requirements
In many older power stations, the original cooler design may no longer be ideal for current operating conditions. In those cases, a custom replacement cooler can improve both cooling performance and service life.
Many plants keep generators in service for decades. Over time, the original cooler may become less efficient, harder to maintain, or impossible to replace with standard parts. A custom-made surface air cooler can solve that problem.
A well-designed replacement unit can fit the existing space, match the original connection points, and use better materials than the old design. It can also be built for easier cleaning and longer operating life.
For plant operators, that means less risk during outages and more confidence in daily operation.
Even a well-built cooler needs regular inspection. Tube fouling, water-side scaling, corrosion, air blockage, and leakage can all reduce performance. Routine checks help catch these issues early before they cause bigger problems for the generator.
Good maintenance does not just protect the cooler. It protects the generator itself.
A generator surface air cooler may not be the most visible part of a power station, but it plays a direct role in generator safety and reliability. By removing heat from the circulating air inside the machine, it helps keep temperatures under control, supports steady performance, and extends equipment life.
For both new installations and replacement projects, the right cooler should combine solid thermal performance, durable construction, and practical serviceability. In power generation, those are the details that make the difference over the long run.
