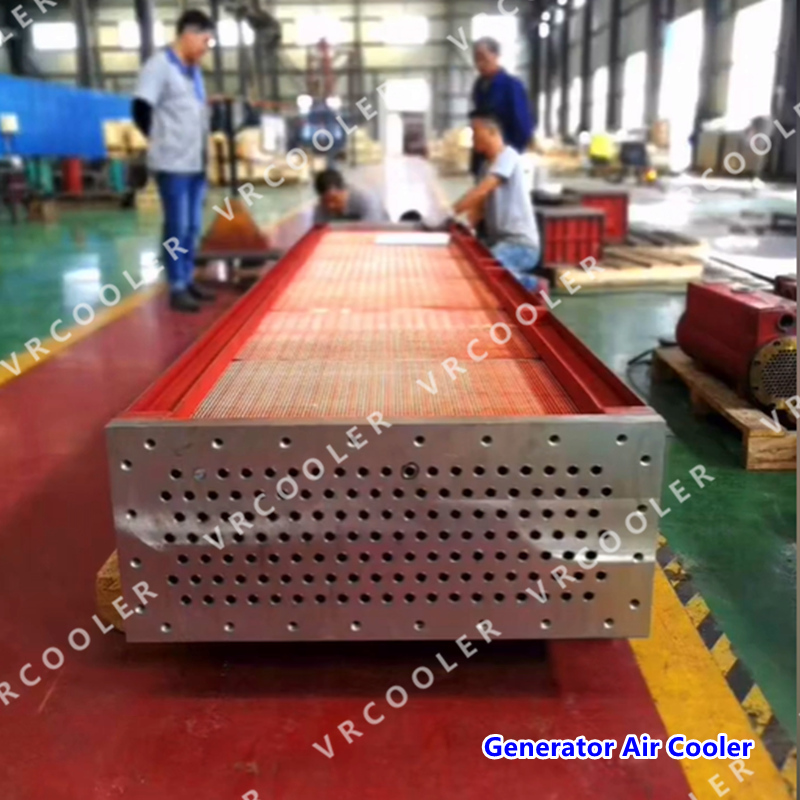

Generator Stator Air Cooler

Generator Stator Air cooler

Heat exchangers called stator generator air coolers are used in power plants to cool the stator of a generator. The windings that generate the electric current while the rotor spins are located in the stator, a stationary component of the generator. When the stator is running, a lot of heat is produced, and this heat needs to be removed to keep the machinery safe.

Stator power source To remove heat from the stator surface, air coolers circulate cool air over it. The cool air passes through a bundle of tubes that are often attached to a finned surface to maximise the area available for heat transfer. Typically, a fan or blower is used to take cool air from the power plant's exterior and shove it into the cooler.

Depending on the unique needs of the generator and the power plant, the stator generator air cooler design may change. The design of the cooler can be influenced by a variety of elements, including the size of the generator, the working environment, and the accessibility of cooling water.

Maintaining the effectiveness and dependability of power production equipment requires the use of stator generator air coolers. The generator's lifespan can be increased and the likelihood of equipment failure decreased with proper stator cooling.

Air coolers for stator generators are typically built as finned-plate or finned-tube heat exchangers. Finned-plate coolers have flat plates with fins connected, whereas finned-tube coolers have a bundle of tubes with fins attached. Because of its more widespread use and bigger surface area, finned-tube coolers offer faster heat transfer rates.

Typically, a fan or blower is used to pull cool air from the outside of the power plant and force it through the cooler in order to cool the stator. To prevent dust or other particles from harming the stator windings, the air is frequently filtered.

Depending on the size of the generator and the power output of the power plant, the stator generator air cooler's size and capacity may change. To reach the necessary cooling capacity, several coolers could be employed in some circumstances.

Air coolers for stator generators are normally found outside, close to the generator. They might be set up either directly on the ground or atop a support structure. The coolers are frequently shielded from the elements using a cover or shelter to keep rain, snow, and other debris out.

Stator generator air coolers must be properly maintained in order to remain reliable and effective over time. This include routinely cleaning and inspecting the fins and tubes, replacing any corroded or broken parts, and keeping an eye on the air flow and temperature variations throughout the cooler.
