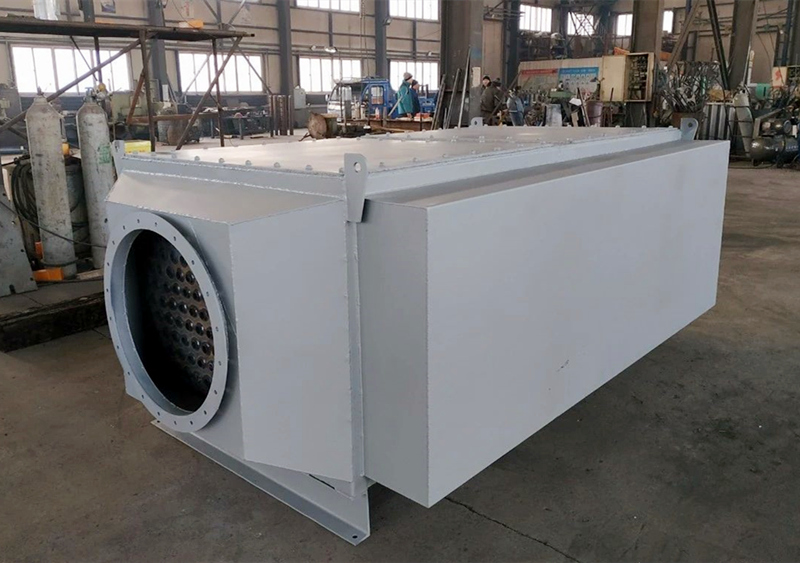

Flue Gas Heat Exchanger for Steam Boilers
A flue gas heat exchanger for steam boilers is a critical energy-saving device designed to recover waste heat from the high-temperature flue gas emitted by boilers (typically 150–350°C) and reuse it to preheat feedwater, combustion air, or other media. By reducing the flue gas’s exhaust temperature (often to 100–180°C, depending on dew point constraints), it minimizes heat loss, improves the boiler’s thermal efficiency (usually by 5–15%), and lowers fuel consumption and greenhouse gas emissions.
Core Working Principle
The exchanger operates on the basic principle of indirect heat transfer—it separates the hot flue gas (heat source) from the cold medium (heat sink, e.g., boiler feedwater) to avoid contamination, while facilitating efficient heat exchange. Here’s a step-by-step breakdown for a common application (preheating boiler feedwater):
Flue Gas Inlet: Hot flue gas (from the boiler’s combustion chamber) flows into the exchanger’s gas-side chamber, passing over the outer surface of heat transfer tubes (often finned, as explained later).
Heat Transfer Process:
Convection: Heat from the flue gas transfers to the outer surface of the tubes (and fins, if used) via convective heat transfer.
Conduction: Heat conducts through the tube wall (made of high-temperature-resistant materials) to the inner surface.
Convection (again): Heat transfers from the inner tube surface to the cold feedwater (flowing inside the tubes) via convection.
Energy Reuse: The preheated feedwater (now 50–100°C, up from ambient 20–30°C) is sent back to the boiler’s economizer or drum. This reduces the boiler’s fuel demand for heating water to steam (since the feedwater is already warm).
Cooled Flue Gas Outlet: The flue gas, now stripped of most waste heat, is discharged to the chimney (or further treated for emissions control, e.g., denitrification, desulfurization) at a lower temperature.
Key Design Features for Steam Boiler Applications
Flue gas heat exchangers for steam boilers are tailored to handle the harsh conditions of boiler flue gas (high temperature, corrosive components like sulfur oxides, and potential dust/slag).
Key design elements include:
A. Heat Transfer Tube Design: Finned vs. Bare Tubes
Finned tubes are almost universally used here—boiler flue gas (a gas) has low thermal conductivity, so fins dramatically expand the heat transfer area (2–10x vs. bare tubes) to boost efficiency.
Fin Types:
Extruded Fins: Integrally formed with the tube (e.g., aluminum fins on copper tubes for low-temperature zones), offering high durability and minimal contact resistance.
Welded Fins: Steel fins welded to carbon steel or stainless steel tubes (for high-temperature, corrosive flue gas, e.g., in coal-fired boilers), as they resist cracking under thermal stress.
Tube Materials:
Carbon Steel: For low-sulfur flue gas (e.g., natural gas-fired boilers) and temperatures <300°C (cost-effective but prone to corrosion in acidic environments).
Stainless Steel (304/316): For high-sulfur flue gas (e.g., coal/oil-fired boilers) or high temperatures (>300°C), as it resists acid corrosion (from sulfuric acid formed when flue gas condenses).
Hastelloy/Inconel: For extreme conditions (e.g., waste-to-energy boilers with high chloride/sulfur levels), offering superior corrosion and high-temperature resistance (but higher cost).
B. Flow Arrangement: Counter-Flow is Preferred
To maximize heat recovery, the exchanger uses a counter-flow design:
Hot flue gas flows in one direction (e.g., top-to-bottom over the tubes).
Cold feedwater flows in the opposite direction (e.g., bottom-to-top inside the tubes).
This maintains the largest possible temperature difference between the two fluids across the entire exchanger, ensuring more heat is transferred than in parallel-flow designs (where temperature differences diminish along the flow path).
C. Anti-Corrosion & Anti-Fouling Measures
Boiler flue gas often contains corrosive substances (e.g., SO₂, which forms H₂SO₄ when the flue gas temperature drops below the acid dew point, typically 100–150°C) and dust/slag (from coal combustion). Exchangers include:
Dew Point Control: The flue gas outlet temperature is kept above the acid dew point (unless using corrosion-resistant materials like 316L stainless steel) to prevent condensation and acid corrosion.
Slag/Dust Removal:
Smooth fin surfaces or tube arrangements (e.g., staggered tubes) to reduce dust accumulation.
Access doors or blowers for periodic cleaning (e.g., compressed air, high-pressure water jetting) to remove slag buildup (which insulates tubes and reduces efficiency).
Corrosion-Resistant Coatings: Ceramic or polymer coatings on tube surfaces for additional protection in mild acidic environments.
D. Pressure Drop Optimization
Excessive pressure drop in the flue gas path increases the load on the boiler’s induced draft (ID) fan, raising energy consumption. Design features to minimize this include:
Optimized fin spacing (wider spacing for dusty flue gas to reduce blockage).
Smooth tube bundles with minimal flow obstructions.
Proper sizing of the gas-side chamber to ensure uniform flue gas distribution.
Common Types of Flue Gas Heat Exchangers for Steam Boilers
The type selected depends on the boiler’s fuel type, flue gas temperature, and the medium being preheated (feedwater, combustion air, etc.).
| Type | Key Design | Best For | Advantages | Disadvantages |
|---|---|---|---|---|
| Economizer | Horizontal/vertical tube bundles; preheats feedwater | All steam boilers (coal, gas, oil-fired) | Directly improves boiler efficiency; simple design | Prone to fouling (needs cleaning); limited to feedwater |
| Air Preheater (APH) | Rotating or fixed tube bundles; preheats combustion air | Coal-fired boilers (high heat demand) | Reduces fuel use; enhances combustion efficiency | Complex design (rotary APHs need maintenance); risk of cold-end corrosion |
| Waste Heat Boiler (WHB) | Integral with flue gas duct; generates low-pressure steam | High-temperature flue gas (>350°C) | Recovers maximum heat (generates additional steam); high energy savings | Large footprint; higher capital cost |
| Condensing Heat Exchanger | Corrosion-resistant materials (stainless steel); operates below acid dew point | Gas-fired boilers (low sulfur) | Ultra-high efficiency (recovers latent heat from condensation); low emissions | Limited to low-sulfur flue gas; requires corrosion-resistant materials |
To choose the right flue gas heat exchanger for a steam boiler, focus on these factors:
Boiler Parameters:
Fuel type (coal, gas, oil) → determines flue gas composition (sulfur content, dust load) and temperature.
Boiler capacity (tonnage/hour of steam) → defines the heat load the exchanger needs to handle.
Heat Recovery Goal:
Target flue gas outlet temperature (must be above dew point unless using condensing design).
Medium to preheat (feedwater, air, or steam) → affects exchanger type (economizer vs. APH).
Material Compatibility:
High-sulfur flue gas (coal/oil) → use stainless steel or Hastelloy to avoid acid corrosion.
Low-sulfur flue gas (natural gas) → carbon steel or stainless steel (cost-effective).
Space & Installation:
Available space in the boiler room (horizontal vs. vertical exchanger).
Integration with existing systems (e.g., connection to feedwater pipes, ID fans).
Maintenance Requirements:
Dusty flue gas (coal-fired) → choose exchangers with easy access for cleaning (e.g., removable tube bundles).
Benefits of Using a Flue Gas Heat Exchanger for Steam Boilers
Energy Savings: Reduces fuel consumption by 5–15% (e.g., a 10-ton gas-fired boiler can save ~5,000 m³ of natural gas annually).
Improved Boiler Efficiency: Raises boiler thermal efficiency from 80–85% (without exchanger) to 90–95% (with exchanger).
Emission Reduction: Lower fuel use translates to fewer CO₂, NOₓ, and SO₂ emissions, aligning with environmental regulations.
Extended Boiler Life: Preheated feedwater reduces thermal stress on the boiler drum and tubes (avoids cold water shock), prolonging equipment lifespan.
