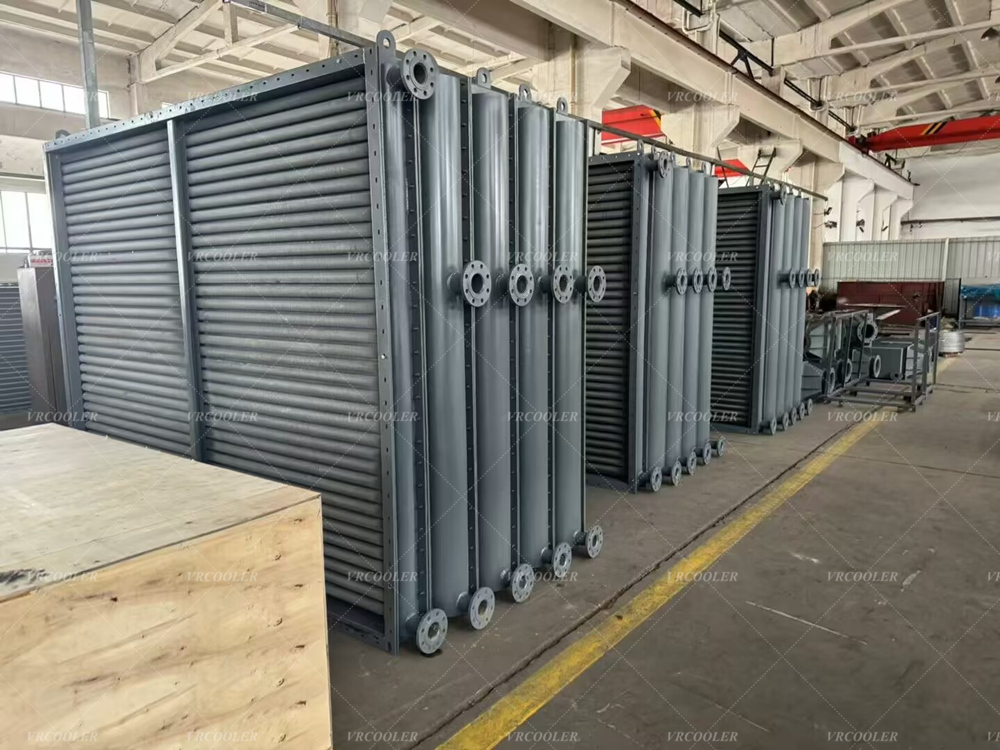

A finned tube radiator for warehouse heating transfers heat from hot water, steam, thermal oil or another heating medium into the warehouse air. The heating medium flows inside tubes while air passes over the external fins. The fins increase the outside heat-transfer area, allowing the radiator to warm a large air volume within a practical footprint.
CSTHEATEXCHANGER’s published finned-tube product information covers steam heaters, steam-air heaters, tube-and-fin coils, air heaters, flue-gas air heaters, air preheaters and industrial finned equipment. These products can be adapted to warehouse, workshop, distribution-centre and process-building heating where the project has a suitable heat source and airflow plan.
Warehouse heating is not only a matter of selecting a large radiator. Warehouses often have high ceilings, large doors, infiltration, cold floor zones, stored goods, forklifts and uneven occupancy. Warm air naturally rises, so the radiator layout and circulation fans affect the temperature people and products actually experience.
We therefore review building heat loss, outdoor design conditions, internal loads, ventilation, heating-medium temperature, air distribution, pressure drop, fin spacing, corrosion exposure and maintenance access before selecting a finned tube radiator.
A finned tube radiator has separate tube-side and air-side paths. Hot water, steam or thermal oil travels inside the tubes. Warehouse air moves across the tubes and fins by natural convection or with fan assistance.
The heat-transfer sequence is:
Hot water or steam enters the tube circuit.
Heat moves from the internal medium to the tube wall.
Heat conducts into the attached fins.
The fins transfer heat to the warehouse air.
Warm air rises or is distributed by fans.
Cooler air returns toward the heating zone.
Controls adjust water flow, steam admission or fan operation.
A hot-water radiator transfers sensible heat as water circulates. A steam radiator releases heat as steam condenses inside the tubes, with condensate leaving through the drain arrangement. Both systems require correct flow, balancing, valves, supports and maintenance access.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters, steam-air heaters, flue-gas air heaters and other finned products. Its Tube and Fin Coil category provides related industrial coil arrangements.
Air usually transfers heat less effectively than the liquid or steam inside the tube. A bare-tube radiator may need a long surface or a deeper bank to warm the same air volume. Fins increase the external surface area and help the coil transfer heat more effectively to moving air.
Fins can provide:
More external heat-transfer area.
A more compact radiator package.
Flexible coil face and depth arrangements.
Better suitability for fan-assisted air heating.
Integration with hot-water, steam or waste-heat systems.
Practical heating for large-volume buildings.
The fins also create a pressure drop and can collect dust. A dense fin pattern may suit clean air but perform poorly in a warehouse with cardboard fibers, wood dust, packaging particles or vehicle exhaust. An open pattern may be easier to clean but require more area.
We select fin pitch, tube material, coatings and casing based on warehouse air quality and access. A radiator that is difficult to reach may lose performance when dust accumulates, even if its original heat-transfer calculation was correct.
Hot water is a common heat source for warehouses because it can come from a boiler, heat pump, CHP system, district-heating loop, biomass plant or industrial heat-recovery unit.
A hot-water warehouse radiator may support:
General warehouse heating.
Distribution-centre heating.
Workshop and maintenance-bay heating.
Loading-dock frost protection.
Packaging and assembly areas.
Storage rooms with temperature limits.
Vehicle and equipment service buildings.
Production warehouses with process ventilation.
We review water inlet and outlet temperatures, flow rate, pump head, water quality, expansion volume and freeze risk. A lower-temperature water source may need a larger radiator or higher airflow. A higher-temperature circuit needs suitable tubes, gaskets, valves and safety components.
The water loop should include air removal, isolation, drainage, expansion control and pressure protection. If the warehouse can cool below freezing during a shutdown, the design needs a defined freeze-protection strategy. That may use circulation, antifreeze, drain-down, insulation or another approved method.
Balanced water flow matters. A closed valve, trapped air pocket or dirty strainer can leave one radiator section cold while the boiler or heat pump appears to operate normally.
Steam can heat warehouse air through condensation inside the radiator tubes. Steam enters the header, gives up heat as it condenses and leaves as condensate through the drain and return system.
We review:
Steam pressure and quality.
Header and tube-circuit arrangement.
Control-valve operation.
Condensate outlet and trap selection.
Return-system pressure.
Air venting and non-condensable removal.
Water-hammer prevention.
Shutdown and restart sequence.
Freeze protection for cold-air operation.
A steam coil that does not drain correctly may lose active heat-transfer surface or respond poorly to the control valve. Trapped condensate can also complicate startup and shutdown. The steam, trap, vent and return arrangement must be designed with the plant piping engineer.
CSTHEATEXCHANGER’s published finned-tube category includes steam heaters and steam-air heaters. The Steam Air Heater page provides a related product reference. The final steam pressure, capacity, material and condensate design remain project-specific.
Hot surfaces and steam connections should be protected from accidental contact in warehouse walkways and loading areas. Radiator locations must not reduce access for forklifts, racking or emergency routes.
Warehouse radiator sizing starts with building heat loss, not floor area alone. A high-bay storage building with frequently opened doors can need a very different heating system from a smaller insulated warehouse with little infiltration.
We request:
Building length, width and clear height.
Wall, roof, floor and door construction.
Insulation and envelope performance.
Local outdoor design temperature.
Wind exposure and site elevation.
Required indoor temperature range.
Door-opening frequency and dock operation.
Ventilation and infiltration rate.
Occupancy, lighting and equipment heat.
Stored-product temperature requirements.
Heating-medium type and conditions.
Radiator location and air-circulation method.
Heat can leave through the roof, walls, floor, doors and ventilation system. Infiltration at loading docks can dominate the heat load during busy periods. If the building has multiple zones, we may need separate radiators, valves, sensors or fan groups.
We calculate the radiator surface, heating-medium flow and air-distribution requirement for the design case. We also review part-load control so the system can respond to mild weather, partial occupancy and reduced door activity.
CSTHEATEXCHANGER’s industrial coil information supports customized heat exchangers, but it does not provide a universal warehouse capacity. The final value belongs in the project calculation and quotation.
Warm air rises. In a high-bay warehouse, this can create a warm upper layer and a cooler working zone near the floor. The radiator itself may be operating correctly while people and stored goods remain in uneven conditions.
We review:
Radiator height and location.
Natural convection versus fan-assisted airflow.
Ceiling height and roof geometry.
Air destratification fans.
Door and dock locations.
Racking and aisle obstruction.
Workstation and pedestrian zones.
Temperature-sensor placement.
Air velocity near people and products.
Heating-zone layout.
Fans can move warm air downward or across the building, but fan speed should suit the warehouse use. Excessive airflow can create drafts, move dust or affect lightweight packaging. The best air pattern depends on the building, stored goods and occupied zones.
Sensors should measure representative working or storage areas rather than the air immediately above the radiator. Large warehouses may need more than one sensor and more than one heating zone.
CSTHEATEXCHANGER can provide finned-tube and tube-and-fin coil solutions for different air-heating layouts. We use the building plan and airflow requirements to select face dimensions, rows, fans and connections.
Warehouse air may contain cardboard fibers, wood dust, packaging particles, vehicle exhaust, oil mist or high humidity. These conditions affect fin spacing, filters, coatings and cleaning access.
We review:
Dust and fiber concentration.
Forklift and vehicle exhaust.
Salt spray in coastal locations.
Humidity and condensation.
Cleaning chemicals and wash-down procedures.
Heating-medium chemistry.
Tube, fin and casing corrosion.
Impact risk from vehicles or stored materials.
Access for safe cleaning.
Aluminum, copper, carbon steel, stainless steel, coatings and other materials may be considered depending on temperature, pressure, fluid chemistry and air exposure. The final selection should cover tubes, fins, headers, casing, supports, gaskets and fasteners.
A warehouse radiator near a loading dock may need physical guards. A radiator in a dusty woodworking warehouse may need more open fin spacing and a shorter cleaning interval. A radiator in a humid storage building may need corrosion protection and drainage.
CSTHEATEXCHANGER’s Personalized Products page describes customization of materials, coatings and fin surfaces. The project datasheet should identify the material and cleaning method that the operator must use.
We plan installation around the building structure, pipe routing, radiator supports, forklift movement, racking, emergency exits, drains, valves, insulation and service access. The radiator should not obstruct doors, loading paths, sprinklers or inspection routes.
Before commissioning, we verify:
Radiator support and connection orientation.
Water or steam inlet and outlet direction.
Pipe expansion and insulation.
Airflow path and fan mounting.
Air vents, drains, traps or return lines.
Pump flow and water balancing.
Control-valve and actuator response.
Temperature-sensor locations.
Freeze-protection sequence.
Alarm and shutdown functions.
For hot-water systems, we fill, vent and balance the circuit before checking the radiator at several valve positions. For steam systems, we introduce steam gradually and confirm condensate discharge, trap operation and stable air temperature.
The control system may include outdoor reset, night setback, frost protection, door-open response and multiple temperature zones. Warehouse ventilation, loading-dock operation and destratification fans should be coordinated with the heating controls.
A radiator can be correctly connected and still perform poorly if air bypasses the coil, water flow is unbalanced, sensors are badly positioned or fans short-circuit the air path.
Warehouse radiators collect dust and fibers over time. Maintenance protects heat transfer, airflow and equipment life.
Routine work may include:
Inspecting fins, tubes, headers and casing.
Removing dust, fibers and debris.
Checking fan guards, motors, bearings and vibration.
Inspecting filters, screens and grilles.
Checking water quality and inhibitor condition.
Testing steam traps and condensate drainage.
Verifying pumps, valves and actuators.
Checking temperature sensors and controls.
Inspecting corrosion, coatings and supports.
Testing freeze protection before winter.
Recording inlet/outlet temperatures and pressure drop.
The cleaning method must suit the fin material and coating. Excessive water pressure can bend fins, while unsuitable chemicals can damage coatings. Cleaning should be coordinated with warehouse inventory protection, electrical safety and slip prevention.
A cold aisle or zone may result from low water flow, trapped air, dirty fins, fan failure, air bypass, poor sensor placement, open loading doors or inadequate heat-load sizing. Trend records help the maintenance team distinguish these causes.
The service interval depends on dust, operating hours, humidity, vehicle activity, heat-source quality and building criticality. CSTHEATEXCHANGER supports new and replacement heat exchangers; the warehouse operator remains responsible for the site maintenance schedule.
When we review a finned tube radiator for warehouse heating, we ask for building dimensions, heat-loss information, local climate, door and ventilation conditions, required indoor temperature, hot-water or steam conditions, airflow, dust exposure, corrosion basis, mounting location, controls and service access.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters, steam-air heaters, flue-gas air heaters and industrial finned equipment. The Tube and Fin Coil category provides related coil designs, while the About Us page describes new and replacement heat exchangers, design data and production drawings.
We support hot-water and steam warehouse radiators, industrial air-heating coils and customized finned-tube heat exchangers. Contact CSTHEATEXCHANGER to discuss a finned tube radiator for your warehouse heating system.
A finned tube radiator for warehouse heating transfers heat from hot water, steam or another heating medium into warehouse air. Fins increase the outside heat-transfer area, while pumps, valves, fans, sensors and controls determine how evenly heat reaches high-bay and working zones. Final selection must account for building heat loss, door infiltration, air stratification, dust, corrosion, freeze protection and maintenance access.
