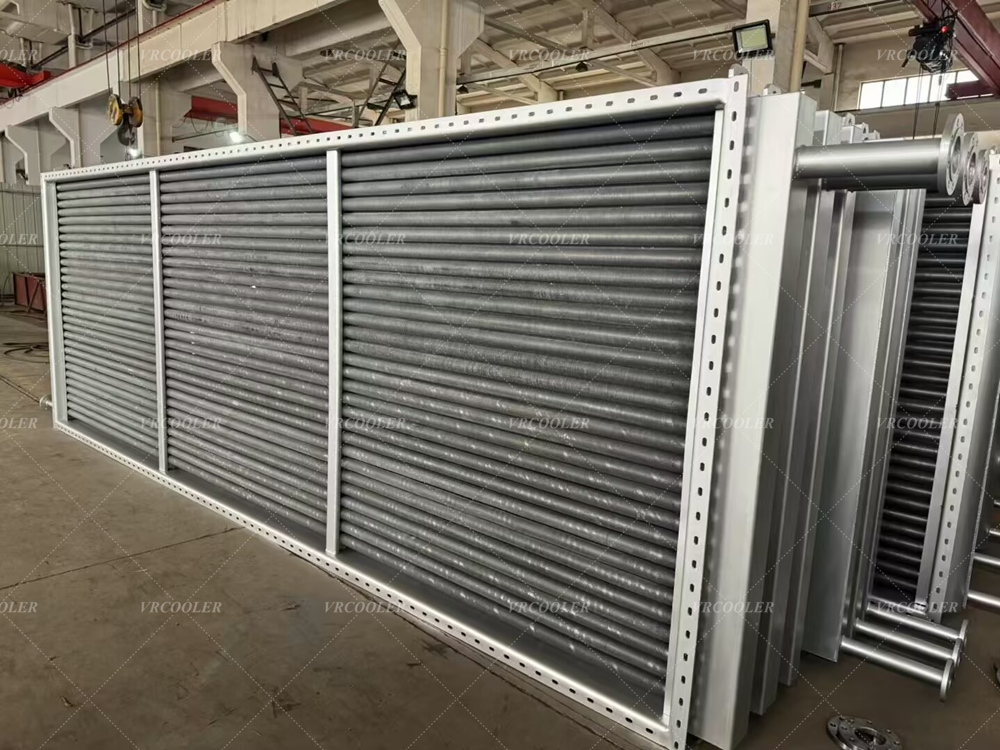

A finned tube radiator for power plant heating transfers heat from hot water, steam or another heating medium into air. The medium flows inside the tubes, while air passes over the external fins. The fins add surface area on the air side, allowing the radiator to warm large auxiliary spaces with a practical coil size.
In a power plant, this type of radiator may heat a control room, electrical room, maintenance workshop, warehouse, laboratory, security building or other auxiliary area. It is different from a generator cooler or turbine oil cooler: those systems reject equipment heat, while this radiator supplies heat to a building or process-air space.
CSTHEATEXCHANGER’s published finned-tube information covers steam heaters, steam-air heaters, tube-and-fin coils, flue-gas air heaters, air preheaters and industrial finned equipment. The company also publishes power-plant cooling and generator-cooling products. We use the heating-medium and building data to separate the heating requirement from the plant’s equipment-cooling duty.
Power-plant heating must account for outdoor temperature, building envelope, doors, ventilation, high ceilings, personnel requirements, electrical equipment and maintenance access. The radiator is only one part of the heating system. Pumps or steam valves, fans, controls, sensors, piping, drains and freeze protection must be designed together.
A finned tube radiator has separate tube-side and air-side paths. Hot water, steam or thermal oil travels inside the tubes. The room air moves over the tubes and fins through natural convection or a fan-assisted arrangement.
The heat-transfer sequence is:
The heating medium enters the tube circuit.
Heat moves from the medium to the tube wall.
Heat conducts into the attached fins.
The fins transfer heat to the surrounding air.
Warm air rises or is distributed by fans.
Cooler air returns toward the heating zone.
Valves, pumps or fans adjust the heat output as conditions change.
Hot-water radiators transfer heat as water circulates through the tubes. Steam radiators release heat as steam condenses, with condensate leaving through the drain and return system. Both arrangements require correct flow, supports, control logic and maintenance access.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters, steam-air heaters, flue-gas air heaters and other finned products. Its Tube and Fin Coil category provides related industrial coil arrangements.
Air usually transfers heat less effectively than the water, steam or thermal fluid inside a tube. A bare-tube bank may therefore require a longer surface or a larger casing to deliver the same air-side heat transfer. Fins increase the external surface area and help package more heating surface into the available space.
Finned tubes can suit power-plant heating because they support:
Compact air-heating equipment.
Hot-water or steam integration.
Fan-assisted air distribution.
Heating for large auxiliary buildings.
Flexible coil face and depth layouts.
Replacement of existing industrial heating coils.
The fins also create an air-side pressure drop and can collect dust. Power plants may have coal dust, ash, oil mist, outdoor dirt, salt air or maintenance debris. A very tight fin pitch can reduce the footprint but make cleaning harder. A more open pitch may improve service access and fouling resistance while requiring more surface area.
We choose the fin pattern, tube material, coating and casing according to the air quality and access conditions. More fins do not automatically produce a better plant heater if the fan cannot provide the pressure or the maintenance team cannot clean the surface.
Hot water can come from a boiler, heat-recovery system, CHP unit, heat pump, district-heating circuit or another plant utility. A closed hot-water loop can feed radiators in several auxiliary buildings, provided the hydraulic and control design supports the connected loads.
Potential applications include:
Control-room heating.
Electrical and instrumentation buildings.
Maintenance and repair workshops.
Warehouses and spare-parts stores.
Security and administration buildings.
Laboratory and sampling rooms.
Battery or utility buildings where permitted by the project design.
Pump houses and auxiliary process rooms.
We review water inlet and outlet temperatures, flow, pump head, water quality, expansion volume and freeze risk. A lower-temperature source may need more radiator surface or more airflow. A higher-temperature loop requires compatible tubes, gaskets, valves and safety components.
The loop needs air removal, isolation, draining, expansion control and pressure protection. If a building may cool below freezing during a plant shutdown, the system needs a defined freeze-protection method. That may use circulation, antifreeze, drain-down, insulation or another approved strategy.
Balanced water flow matters. A closed valve, trapped air pocket, dirty strainer or poor commissioning can leave one room cold even though the hot-water source is operating normally.
Steam can heat plant buildings and process air through condensation inside the radiator tubes. Steam enters the header, releases heat as it condenses and leaves through a drain and return arrangement.
We review:
Steam pressure and quality.
Header and tube-circuit arrangement.
Control-valve range and fail position.
Condensate outlet and trap selection.
Return-system pressure.
Air venting and non-condensable removal.
Water-hammer prevention.
Shutdown and restart sequence.
Freeze protection in cold-air conditions.
A steam radiator that does not drain correctly may lose active heat-transfer surface or respond poorly to the control valve. Trapped condensate can also complicate startup and cause water hammer. The steam, trap, vent and return system should be reviewed by the plant steam and piping engineers.
CSTHEATEXCHANGER’s published finned-tube category includes steam heaters and steam-air heaters. The Steam Air Heater page provides a related product reference. Final steam pressure, capacity, material and condensate details remain project-specific.
Steam piping and hot surfaces should be protected from accidental contact in walkways, workshops and maintenance areas. The radiator layout must also preserve access to valves, electrical panels, fire equipment and emergency exits.
Radiator sizing starts with the building heat loss and required indoor condition. Floor area alone is not enough. A large control building with good insulation may need less heat than a smaller workshop with frequent door opening and high ventilation.
We request:
Building length, width and height.
Wall, roof, floor and door construction.
Insulation and envelope condition.
Local outdoor design temperature.
Wind exposure and site elevation.
Required indoor temperature range.
Door, access-gate and ventilation operation.
Occupancy and internal equipment heat.
Fresh-air and exhaust-air requirements.
Heating-medium type and conditions.
Radiator location and air-circulation method.
Night setback and shutdown requirements.
Heat loss can occur through walls, roofs, floors, doors, ventilation and infiltration. Maintenance workshops may also need higher ventilation than offices. Electrical rooms may have internal equipment heat but still require a separate temperature-control strategy.
We calculate the required radiator surface, heating-medium flow and air-distribution arrangement for the design case. We also review part-load operation so the system can respond to mild weather, changing occupancy and reduced ventilation.
CSTHEATEXCHANGER’s product categories support customized finned-tube and industrial-coil solutions, but they do not provide a universal capacity for every power plant. The final value belongs in the project calculation, quotation and approved datasheet.
Warm air rises, which can create a warm upper layer and a cooler working zone in high-ceiling power-plant buildings. The radiator may be operating correctly while people, instruments or stored materials remain in an uneven temperature field.
We review:
Radiator location and installation height.
Natural convection versus fan-assisted airflow.
Ceiling height and roof geometry.
Destratification or circulation fans.
Doors, gates and loading areas.
Cable trays, racking and equipment obstructions.
Workstations and control zones.
Sensor location and number.
Air velocity near personnel and equipment.
Heating-zone layout.
Fans can move warm air down from the roof zone or across a large room. Excessive air movement, however, can create drafts, move dust or disturb sensitive work. The airflow target should match the room’s function.
Temperature sensors should represent the occupied or equipment zone rather than the warm air directly above the radiator. Large buildings may need multiple sensors, valves or fan groups.
CSTHEATEXCHANGER can provide finned-tube and tube-and-fin coil solutions for different heating layouts. We use the building plan and airflow requirements to select face dimensions, rows, circuiting, headers and connections.
Power-plant air can contain coal dust, ash, oil mist, outdoor dirt, salt spray or chemical vapors. These conditions affect fin pitch, filter requirements, coatings and cleaning access.
We review:
Dust, ash and fiber concentration.
Oil mist and maintenance contamination.
Outdoor and coastal exposure.
Humidity and condensation.
Cleaning water and chemicals.
Heating-medium chemistry.
Tube, fin, header and casing corrosion.
Impact risk from tools, vehicles or stored parts.
Access for safe inspection.
Aluminum, copper, carbon steel, stainless steel, coatings and other materials may be considered depending on the heating-medium conditions and surrounding atmosphere. The final selection covers tubes, fins, headers, casing, supports, gaskets and fasteners.
A radiator near a workshop or loading area may need a guard. A radiator in a coal-handling building may need wider fin spacing and more frequent cleaning. A radiator in a humid auxiliary building may need corrosion protection and drainage.
CSTHEATEXCHANGER’s Personalized Products page describes customization of materials, coatings and fin surfaces. The project documents should identify the selected material and compatible cleaning method.
We plan the installation around the building structure, pipe routing, radiator supports, maintenance access, emergency exits, fire equipment, drains, valves and insulation. The radiator must not obstruct switchgear access, cable routes, lifting paths or inspection platforms.
Before commissioning, we verify:
Radiator support and connection orientation.
Water or steam inlet and outlet direction.
Pipe expansion and insulation.
Airflow path and fan mounting.
Air vents, drains, traps or return lines.
Pump flow and water balancing.
Control-valve and actuator response.
Temperature-sensor locations.
Freeze-protection sequence.
Alarm, shutdown and emergency functions.
For hot-water systems, we fill, vent and balance the loop before checking the radiator at several valve positions. For steam systems, we introduce steam gradually and confirm condensate discharge, trap operation and stable room temperature.
The control system may include outdoor reset, night setback, frost protection, ventilation interlock and multiple heating zones. Power-plant heating must be coordinated with plant ventilation, fire protection, emergency power and operating procedures.
A radiator can be correctly connected and still perform poorly if air bypasses the coil, water flow is unbalanced, sensors are badly positioned or fans short-circuit the air path.
Power-plant radiators collect dust and airborne debris. Maintenance protects heat transfer, airflow and equipment life.
Routine work may include:
Inspecting fins, tubes, headers and casing.
Removing dust, ash and debris.
Checking fan guards, motors, bearings and vibration.
Inspecting filters, screens and grilles.
Checking water quality and inhibitor condition.
Testing steam traps and condensate drainage.
Verifying pumps, valves and actuators.
Checking temperature sensors and controls.
Inspecting corrosion, coatings and supports.
Testing freeze protection before winter.
Recording inlet/outlet temperatures and pressure drop.
The cleaning method must suit the fin material and coating. Excessive water pressure can bend fins, while unsuitable chemicals can damage coatings. Cleaning around electrical rooms and control buildings also requires coordination with electrical safety and plant work permits.
A cold room or zone may result from low flow, trapped air, dirty fins, fan failure, air bypass, poor sensor placement, open doors, inadequate insulation or an undersized radiator. Trend records help the maintenance team separate these causes.
The service interval depends on dust, operating hours, humidity, heating-source quality and room criticality. CSTHEATEXCHANGER supports new and replacement heat exchangers; the power-plant operator remains responsible for the site maintenance schedule.
When we review a finned tube radiator for power-plant heating, we ask for building dimensions, heat-loss information, local climate, door and ventilation conditions, required indoor temperature, hot-water or steam conditions, airflow, dust exposure, corrosion basis, mounting position, controls and service access.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category includes steam heaters, steam-air heaters, flue-gas air heaters and industrial finned equipment. The Tube and Fin Coil category provides related coil designs, while the Power Plant Cooling category and About Us page provide related power-plant and heat-exchanger information.
We support hot-water and steam radiators for control rooms, workshops, warehouses, maintenance buildings and other auxiliary power-plant spaces. Contact CSTHEATEXCHANGER to discuss a finned tube radiator for power plant heating.
A finned tube radiator for power plant heating transfers heat from hot water, steam or another heating medium into the air of an auxiliary building or process space. Fins increase the outside heat-transfer area, while pumps, valves, fans, sensors and controls determine how evenly the heat reaches occupied and equipment zones. Final selection must account for building heat loss, ventilation, high ceilings, dust, corrosion, freeze protection and plant safety procedures.
