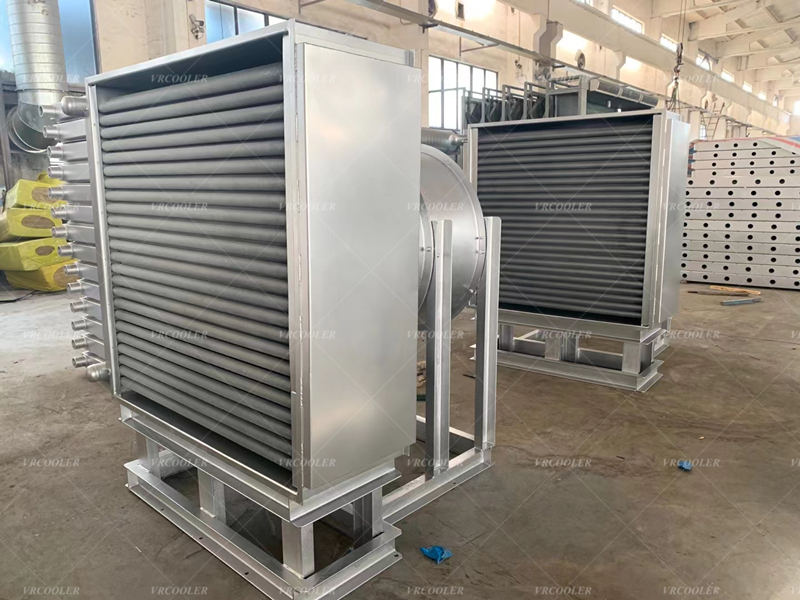

Finned Tube Heat Exchanger for Timber Drying Kiln

Industrial finned tube air heater is core heating equipment specially matched for solid wood, lumber, plywood timber drying kiln. Using steam, hot water or thermal oil as heat medium, the finned tube radiator heats circulating air inside sealed drying chamber, realizes gradual dehumidification and constant-temperature drying of raw wood. Optimized wide fin gap design adapts high-humidity environment plus floating wood shavings, sawdust and bark debris inside wood workshop, stably maintain required kiln temperature and humidity to avoid wood cracking, warping and deformation during drying process. Widely applied in timber processing factory, furniture factory, plywood & wood panel production line drying system.

Working Principle

High-temperature heat medium flows inside finned tubes and releases heat, heat transfers quickly to outer fin surfaces. Circulation fan drives indoor air cross through fin bundle to form uniform hot air. Hot air circulates inside closed timber kiln, slowly evaporates free water inside wood lumber; damp humid air is exhausted through dehumidifying system while newly heated dry air supplements circulation to complete graded slow drying of wood.

Key Product Advantages

1. Wide Fin Spacing Anti-block Design for Sawdust Environment

Big clearance between fins avoids clogging by wood dust and shavings, greatly reduces downtime cleaning frequency and ensures uninterrupted drying production.

2. Gentle Even Heating Reduces Timber Waste

Uniform kiln temperature prevents local overheating, effectively lower wood cracking, bending, shrinkage defects and improve finished lumber yield rate and commercial value.

3. High Heat Efficiency Saves Energy Cost

Expanded finned heat exchange area improves heating speed, shortens drying cycle and reduces steam/fuel consumption for wood processing plants.

4. Two Material Options for Different Working Conditions

Cost-effective carbon steel version for inland normal humidity timber factory; stainless steel type for coastal humid area and acidic wood (oak, teak etc.) drying projects.

5. Strong Heat Source Compatibility

Compatible with steam, hot water, thermal oil and biomass waste heat, fit diversified energy configuration of different wood processing enterprises.

6. Flexible Modular Combination

Custom module quantity according to kiln volume and loading tonnage, suitable for new kiln construction and old wood drying kiln energy-saving transformation.

Application Scope

Hardwood, softwood log & sawn lumber drying kiln for furniture factory

Plywood, veneer, wood panel closed drying room

Flooring raw material constant humidity low-temperature drying system

Small craft wood processing batch drying chamber

Routine Maintenance Tips

Use compressed air to clear accumulated sawdust on fin surface every 10~20 days to keep high heat exchange efficiency.

Regularly inspect tube welding spots and flange joints to prevent medium leakage.

Adjust medium flow to control kiln temperature based on wood species, thickness and initial moisture content.

Drain leftover medium inside pipes during long shutdown to prevent internal tube rusting.
