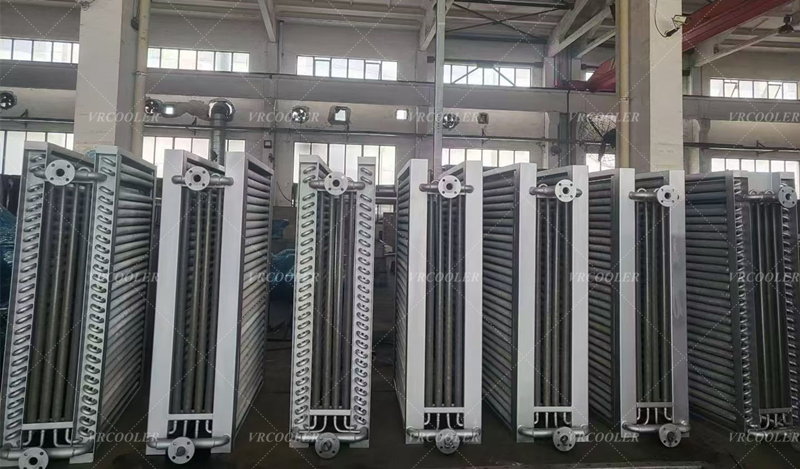

Finned Tube Heat Exchanger for Coating Machine Oven

Finned tube heat exchanger acts as the core heating unit for roll-to-roll coating machine drying ovens, widely applied in lithium battery coating, film coating, paper coating, textile coating and adhesive coating production lines. Taking steam, hot water or thermal oil as heat medium, this finned tube radiator heats circulating air inside the oven to maintain stable and uniform drying temperature, fully evaporate solvent and moisture on coated substrates, and guarantee flat coating surface without bubbles, wrinkles or color difference. With anti-corrosion and anti-clogging structural design, it can withstand high humidity, solvent volatile gas and tiny coating powder inside coating workshops, supporting 24-hour continuous high-speed coating production.

Working Principle

High-temperature heat medium circulates inside finned tubes and releases heat energy, which transfers rapidly to the outer fin surfaces. Circulation blower forces air to cross flow through the fin bundle to form constant-temperature hot air. Hot air circulates uniformly in the closed coating oven, continuously evaporating solvents and moisture on the surface of coated film, paper or electrode sheet. Humid air containing solvent is exhausted after waste heat recovery, while fresh heated air supplements circulation to realize continuous drying and curing of coating layers.

Core Product Advantages

1. Uniform & Precise Temperature Control for Premium Coating Quality

Large-area fin heat dissipation achieves balanced air temperature distribution in the oven, temperature fluctuation controlled within ±1~2°C. Avoid local overheating that causes coating cracking, bubbling, yellowing or uneven film thickness, greatly reduce defective products and improve finished product yield.

2. Wide Fin Pitch Anti-block Design for Coating Powder

Optimized large fin gap prevents accumulation of coating powder, pigment dust and solid precipitates, reducing frequent shutdown cleaning and lifting the continuous operation efficiency of coating machines.

3. High Heat Transfer Efficiency & Obvious Energy Saving

Extended fin surface greatly enhances heat exchange capacity, fast temperature rise shortens drying oven heating time and accelerates production line speed, effectively cutting steam or thermal oil consumption for coating factories.

4. Corrosion-resistant Material Options for Special Coating Scenarios

316L stainless steel finned tube version is specially designed for lithium battery pole piece coating, solvent-based adhesive coating, resisting long-term erosion of organic volatile solvents and extending equipment service life.

5. Compact Modular Layout Saves Oven Space

Integrated finned tube modules occupy small space inside the coating oven, convenient for new coating line matching and old drying oven energy-saving renovation without modifying the original oven structure largely.

6. Wide Compatibility with Multiple Heat Sources

Perfectly matched with steam, high-temperature hot water, thermal oil and industrial waste heat systems, adapting different energy supply modes of coating manufacturers.

Application Scope

Lithium battery positive/negative electrode coating machine drying oven

BOPP film, release film, optical film coating production line heating equipment

Paper, aluminum foil, textile fabric coating and curing oven

Adhesive, glue, water-based paint coating drying system

Routine Maintenance Guide

Blow coating powder and dust on fin surfaces with compressed air every 7–14 days to maintain stable heat exchange efficiency.

Regularly inspect tube welding seams and flange joints to eliminate medium leakage and heat loss.

Adjust the flow of heating medium to stabilize oven temperature according to coating thickness, line speed and solvent type.

Fully drain residual medium inside tubes during long-term shutdown to slow internal tube corrosion.
