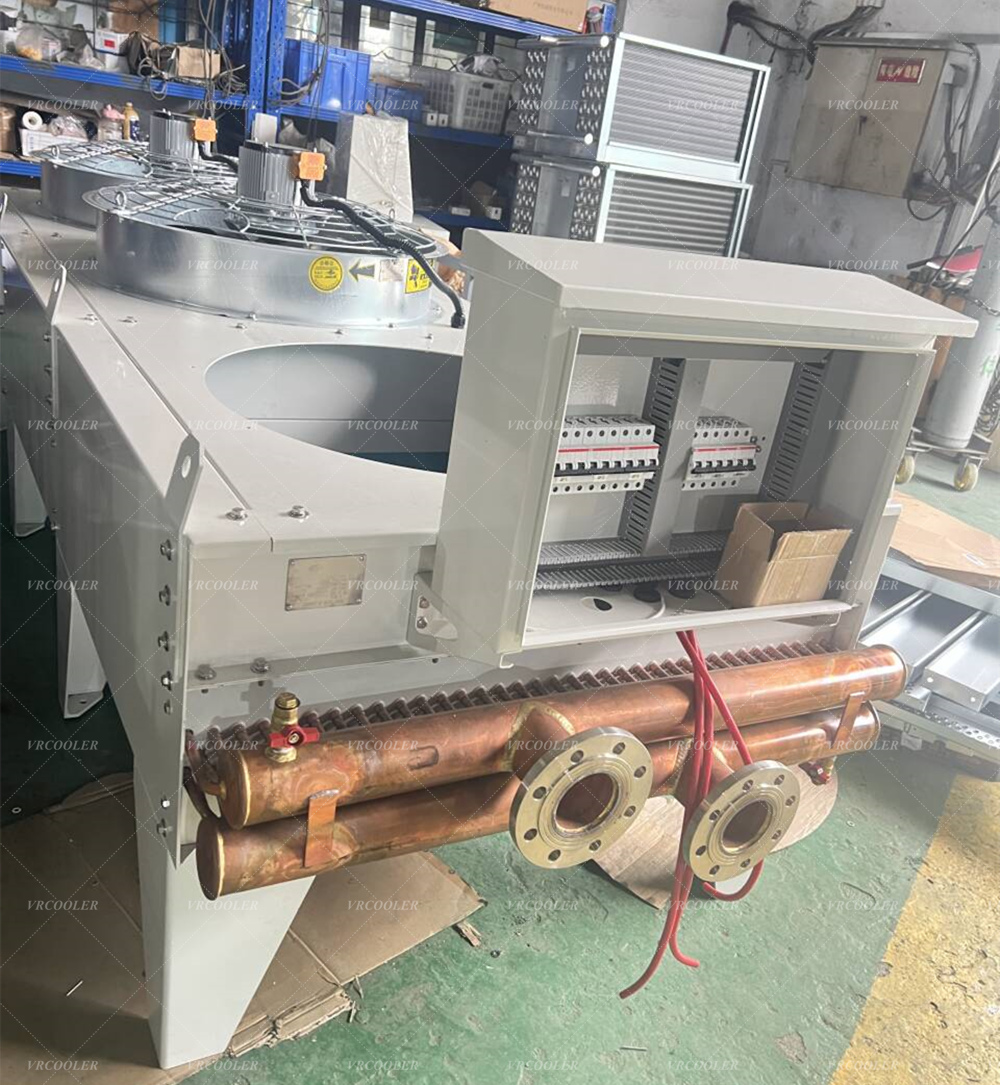

A fin fan air cooler for a refinery removes heat from a process fluid by circulating the fluid through finned tubes while fans force ambient air across the external fins. The cooled fluid returns to the refinery process. Depending on the service, the tube-side fluid may be water, oil, gas, hydrocarbon, condensate or another process stream.
CSTHEATEXCHANGER’s published Air Fin Fan Cooler page states that fin-fan coolers are used in power plants, refineries and petrochemical plants to dissipate heat from process streams. It describes a bundle of finned tubes mounted on a frame, with process fluid inside the tubes and air blown over the fins. The product information also states that cooler size, tube count, fin spacing, fin material and fan selection can be customized.
The equipment does not have one universal refinery specification. We need the process fluid, flow rate, inlet and outlet temperatures, pressure, corrosive components, fouling tendency, ambient design condition, allowable pressure drop, fan arrangement and maintenance plan before selecting the bundle.
A fin-fan cooler is also part of a wider refinery safety system. It does not replace pressure relief, hydrocarbon detection, fire protection, hazardous-area electrical design, isolation, depressurization or process control. Those interfaces must be specified and reviewed by the responsible refinery engineering team.
The cooler has two separate flow paths. The refinery process fluid travels inside tubes. Fans move air across the external fins. Heat transfers from the process fluid through the tube wall and fins into the air.
The basic operating sequence is:
Hot process fluid enters the tube-side header.
The header distributes fluid through parallel finned tubes.
Heat moves from the fluid to the tube wall.
The fins spread heat to the air-side surface.
Fans force ambient air through the bundle.
Warm air leaves the cooler.
Cooled process fluid returns to the refinery unit.
The fluid and air remain separated during normal operation. Tube, header or joint leakage can compromise that separation, which is why pressure testing, leak testing, inspection and maintenance records matter.
CSTHEATEXCHANGER’s Air Fin Fan Cooler page describes water, oil and gas as possible process fluids for air fin-fan cooling. Its Air Cooling Unit category lists air-cooled heat exchangers, dry coolers, gas coolers and air-cooler tube bundles.
Refinery process units reject heat at many points. A fin-fan air cooler may be used as a primary cooler, an intermediate cooler, a condenser or part of a larger cooling train.
Potential refinery and petrochemical duties include:
Crude-unit overhead cooling.
Atmospheric or vacuum-distillation process cooling.
Hydrocarbon stream cooling.
Reaction-product cooling.
Compressor aftercooling.
Gas and condensate cooling.
Lube-oil and seal-oil cooling.
Cooling-water heat rejection.
Reflux and condenser service.
Hydrogenation or catalytic-process cooling.
Gas-processing and petrochemical package cooling.
CSTHEATEXCHANGER’s published petrochemical dry-cooler information describes crude-oil atmospheric and vacuum-distillation applications, preliminary cooling of oil and gas, and reaction-product cooling in catalytic cracking and hydrogenation processes. The exact service requires a process datasheet; the general application description does not establish a duty or temperature guarantee.
The choice between a fin-fan cooler and another exchanger depends on the process temperature, cooling medium, condensation requirement, water availability, pressure, fouling and the desired outlet condition. Some refinery duties use air cooling before a water-cooled or refrigeration stage. Others use an air cooler as the main heat-rejection device.
The phrase “refinery air cooler” is not enough to size a unit. We request the process data for every operating case that affects the cooler.
Important inputs include:
Fluid name and composition.
Flow rate at minimum, normal and maximum operation.
Inlet and required outlet temperature.
Operating and design pressure.
Vapor, liquid or two-phase condition.
Water content and hydrocarbon dew point.
Hydrogen sulfide, carbon dioxide, chlorides or other corrosive species.
Fouling, coke, polymer, wax or salt-deposit tendency.
Ambient design temperature and seasonal range.
Site elevation and air density.
Allowable tube-side and air-side pressure drop.
Required condensation or subcooling.
Fan power, noise and electrical requirements.
Duty/standby and turndown requirements.
Maintenance access and lifting constraints.
We compare minimum, normal and maximum flow cases. A bundle that meets a peak cooling condition may behave differently at low flow. A condensing duty also requires attention to distribution, liquid drainage and downstream separation.
CSTHEATEXCHANGER’s published company information describes new and replacement heat exchangers, design data and production drawings. We use the approved process data to select the tube bundle, headers, fans, frame, controls and materials rather than applying a generic refinery size.
The finned-tube bundle provides the area needed to transfer heat from the refinery fluid to ambient air. Fins increase the outside surface of the tubes, which is especially useful when air-side heat transfer is the limiting resistance.
We review:
Tube diameter and wall thickness.
Tube material and corrosion allowance.
Fin material, thickness and pitch.
Tube spacing and number of rows.
Bundle depth and face area.
Header and circuit arrangement.
Tube-side velocity and pressure drop.
Air-side velocity and pressure drop.
Thermal expansion and support arrangement.
Access for cleaning and tube inspection.
Tight fins can create a compact bundle, but they may collect dust, soot, salt, fibers or oil mist. Wider spacing can simplify cleaning and reduce blockage, though it may require more coil volume. The fin design should match the air quality and maintenance method.
CSTHEATEXCHANGER’s Finned Tube Heat Exchanger category and Air Cooler Tube Bundles page provide related finned-bundle information. The final tube, fin, header and coating materials belong in the project datasheet and fabrication documents.
A fin-fan cooler can use forced-draft or induced-draft airflow. In a forced-draft arrangement, fans push ambient air toward and through the bundle. In an induced-draft arrangement, fans pull air across the bundle and discharge it upward or away from the process area.
We compare:
Air-distribution uniformity.
Fan access and maintenance.
Hot-air recirculation risk.
Exposure of fans and motors to hot air.
Noise at grade and property boundaries.
Wind effects and discharge direction.
Plume or vapor behavior where condensation occurs.
Space below and above the bundle.
Fire and gas-detection interfaces.
The best arrangement depends on the site layout and refinery operating philosophy. Walls, structures, stacks and neighboring equipment can redirect air and reduce the effective temperature difference.
Fan controls may use variable speed, staged operation or adjustable pitch. We match the fan to bundle pressure drop and the required operating range. Fan selection should also consider hazardous-area electrical classification, motor temperature, vibration, guards and maintenance access.
An air cooler is not automatically suitable for an explosive atmosphere simply because the process fluid is contained in tubes. The complete package, instruments, motors, junction boxes, cables and area classification must be assessed by the project electrical and process-safety teams.
Refinery process fluids can contain corrosive components, water, sulfur compounds, chlorides or acidic species. External conditions may add salt spray, humidity, dust and chemical vapors. Material selection therefore covers the tube, header, nozzles, fins, casing, frame, fasteners, gaskets, coatings and supports.
We review:
Process-fluid composition and phase.
Hydrogen sulfide and carbon-dioxide exposure.
Chlorides and wet-service corrosion.
Condensation and dew-point conditions.
External marine or coastal exposure.
Operating temperature and thermal cycling.
Cleaning chemicals and water quality.
Erosion velocity and suspended solids.
Inspection and corrosion-monitoring method.
Carbon steel, stainless steel, copper alloys, aluminum and other materials may be considered for different services. A material that works for a dry, clean gas may not be suitable for a wet sour stream or a condensing hydrocarbon service.
CSTHEATEXCHANGER’s Personalized Products page describes customization of materials, coatings and fin surfaces. We use the refinery corrosion basis and approved project specification to determine the final selection. A general product page should not be treated as proof of NACE, ASME, API, IEC, ATEX or other project-specific compliance.
A refinery fin-fan cooler may be designed to cool a liquid, condense vapor, partially condense a two-phase stream or subcool a product. Each duty changes the required distribution, drainage and control approach.
We check:
Expected inlet and outlet phase.
Hydrocarbon and water dew points.
Liquid drainage from headers and downstream piping.
Two-phase distribution and flow stability.
Wax, salt, coke or polymer deposition.
Soot and dust on the air side.
Oil mist and sticky contamination.
Cleaning access and isolation.
Chemical or mechanical cleaning method.
Tube plugging or bundle replacement strategy.
Fouling reduces heat transfer and raises pressure drop. Air-side deposits can restrict fan airflow, while tube-side deposits can reduce flow area and change the process temperature. A rising pressure drop or falling outlet performance often signals fouling, fan degradation, fluid-flow change or an instrument problem.
The cleaning plan should be agreed before the bundle is fabricated. We avoid a dense fin arrangement that the site cannot clean. The coil should have safe access, isolation, drains and lifting provisions for planned maintenance.
A fin-fan cooler adds resistance to the tube-side process stream and to the air side. Tube-side pressure drop must remain within the allowable process and equipment limits. Air-side pressure drop must remain within the fan’s operating envelope.
We evaluate:
Tube-side pressure drop at each design flow.
Header, nozzle and piping losses.
Clean and fouled conditions.
Fan static pressure and power.
Control-valve interaction.
Compressor, pump or tower pressure limits.
Startup, shutdown and minimum-flow cases.
Bypass and isolation arrangements.
The cooler must not be treated as a stand-alone replacement for the refinery process-control or protection system. Pressure relief, isolation, depressurization, flare or vent routing, gas detection, fire protection and emergency shutdown remain separate project functions.
A bypass may let the process operate when the cooler is isolated, when ambient conditions are favorable or while the bundle is being cleaned. The bypass must be assessed for leakage, control response and the effect on process temperature. The exact arrangement belongs in the P&ID and approved control narrative.
CSTHEATEXCHANGER supplies the exchanger and project documentation defined in the quotation. Refinery integration requires coordination with process, piping, mechanical, electrical, instrumentation and safety disciplines.
We plan installation around the cooler structure, tube-side piping, fan clearance, lifting access, hot surfaces, platforms, drainage, electrical connections, instruments and fire-and-gas systems. Nozzle loads and thermal expansion should be checked before piping is connected.
Before commissioning, we verify:
Bundle orientation and process-flow direction.
Tube-side pressure-test and leak-test records.
Piping supports, expansion and nozzle loads.
Fan rotation, vibration, guards and airflow.
Motor and electrical-area requirements.
Temperature, pressure and flow instruments.
Bypass, isolation and control-valve operation.
Drains, vents and condensate routes.
Fire-and-gas and emergency-shutdown interfaces.
Alarm, trip and duty/standby sequences.
We start the process at a controlled flow and monitor inlet/outlet temperature, tube-side pressure drop, ambient temperature, fan speed, vibration and any condensate or liquid carryover. Testing at more than one operating point helps confirm how the cooler responds to load and ambient changes.
The system should be accepted using the project’s approved test procedure and operating limits. Fan rotation alone does not prove correct thermal performance, distribution, pressure drop or process integration.
Fin-fan maintenance combines air-side cleaning, tube-side inspection and rotating-equipment service. We recommend a schedule based on the process fluid, air contamination, operating hours, corrosion exposure and process criticality.
Maintenance may include:
Fin and bundle inspection.
Air-side cleaning and fin straightening where appropriate.
Fan, motor, bearing and gearbox checks.
Vibration and noise monitoring.
Tube-side pressure and leak checks.
Header and nozzle inspection.
Corrosion and coating review.
Valve, damper and actuator testing.
Temperature and pressure-sensor verification.
Drain, vent and condensate inspection.
Duty/standby changeover testing.
Spare tube bundle and fan-part planning.
Cleaning must suit the fin material and coating. Excessive water pressure can bend fins, while incompatible chemicals can damage coatings or create corrosion. Process-side cleaning requires approved isolation, depressurization, draining and gas-freeing procedures.
Trend records are valuable. A gradual increase in pressure drop, higher fan speed, rising outlet temperature or changing approach temperature may indicate fouling, fan performance loss, flow imbalance, ambient change or process composition change.
When we review a fin-fan air cooler for a refinery, we ask for process fluid data, flow cases, inlet/outlet temperatures, pressure limits, phase condition, fouling basis, corrosion data, ambient design, fan power, noise requirements, area classification, layout, cleaning method, inspection plan and project standards.
CSTHEATEXCHANGER’s Air Fin Fan Cooler page describes fin-fan coolers for refineries and petrochemical plants and states that the cooler can be customized by size, tube quantity, fin spacing, fin material and fan selection. The Petrochemical Dry Cooler article discusses crude oil and gas preliminary cooling and reaction-product cooling. The Air Cooling Unit category lists air-cooled heat exchangers, dry coolers, gas coolers and air-cooler tube bundles.
We support new and replacement fin-fan coolers, air-cooler tube bundles, dry coolers and finned-tube exchangers. Contact CSTHEATEXCHANGER to discuss a fin fan air cooler for your refinery process.
A fin-fan air cooler for a refinery circulates process fluid through finned tubes and uses fans to reject heat to ambient air. It can cool water, oil, gas, hydrocarbon and other process streams, but the final design depends on phase condition, pressure, temperature, composition, fouling, corrosion, airflow, pressure drop, materials, area classification, maintenance and refinery safety requirements.
