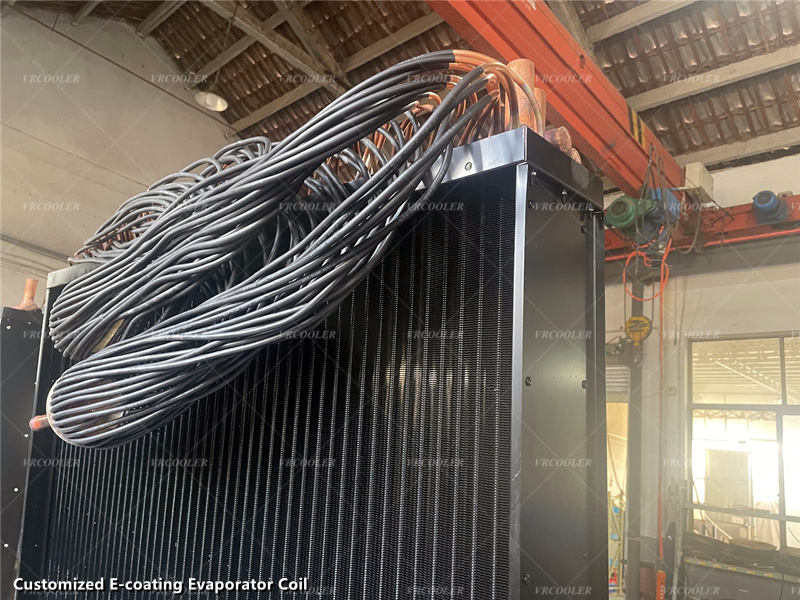

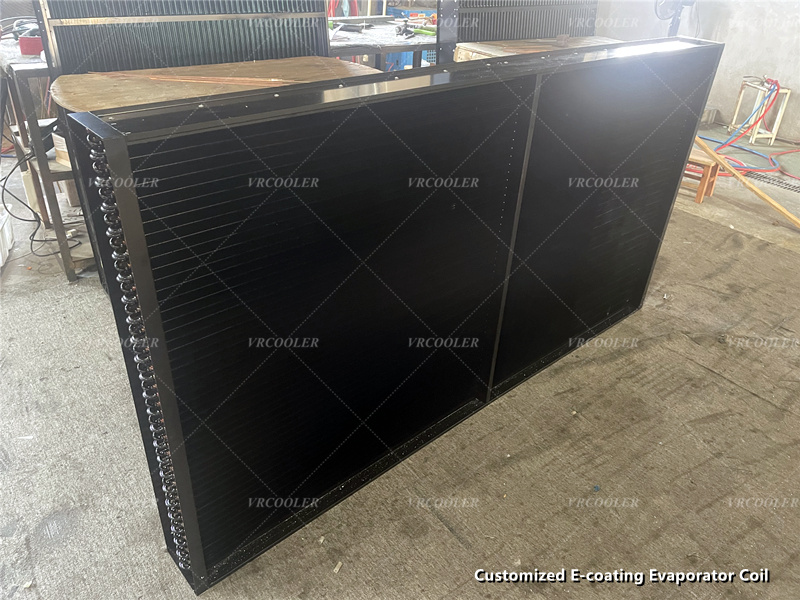

Evaporator Coil for Air Cooling And Dehumidification

An evaporator coil for air cooling and dehumidification is a key component in air conditioning and dehumidification systems.

Structure

Tubing: Usually made of copper or aluminum, which has good thermal conductivity. The tubing is bent into a coil shape to increase the heat exchange area.

Fins: Attached to the tubing, often made of aluminum. They further increase the heat exchange area and improve heat transfer efficiency. The fins can be flat or have various corrugated or grooved designs to enhance air turbulence and heat transfer.

Header and Plenum: The header connects the individual tubing sections of the coil, allowing the refrigerant to flow in and out evenly. The plenum is used to distribute the air evenly over the coil surface.

Working Principle

Air Cooling: The evaporator coil contains a refrigerant that is at a low temperature and pressure. As warm air from the room passes over the coil, heat is transferred from the air to the refrigerant. The refrigerant absorbs the heat and evaporates from a liquid state to a gaseous state, thereby cooling the air. The cooled air is then circulated back into the room by a fan.

Dehumidification: When the warm and humid air comes into contact with the cold surface of the evaporator coil, the water vapor in the air condenses into liquid water. The condensed water droplets form on the surface of the coil and then drip down into a drain pan or drain pipe, which is drained away, thus reducing the humidity of the air.

Type

Single-row and Multi-row Coils: Single-row coils have a single layer of tubing and fins, which are suitable for applications with low cooling and dehumidification requirements. Multi-row coils, such as two-row, four-row or more, have multiple layers of tubing and fins, offering higher heat exchange efficiency and are often used in large air conditioning systems or places with high humidity.

Applications

Residential Air Conditioning: In homes, evaporator coils are used in central air conditioning systems, split air conditioners and window air conditioners to cool and dehumidify indoor air, creating a comfortable living environment.

Commercial and Industrial Air Conditioning: In office buildings, shopping malls, hospitals, factories and other places, large air conditioning systems use evaporator coils to control the temperature and humidity of the air in large spaces to meet the needs of people's activities and industrial production.

Dehumidifiers: In industrial and household dehumidifiers, evaporator coils play a key role in dehumidification, removing excess moisture from the air to prevent problems such as mold growth and equipment corrosion.
