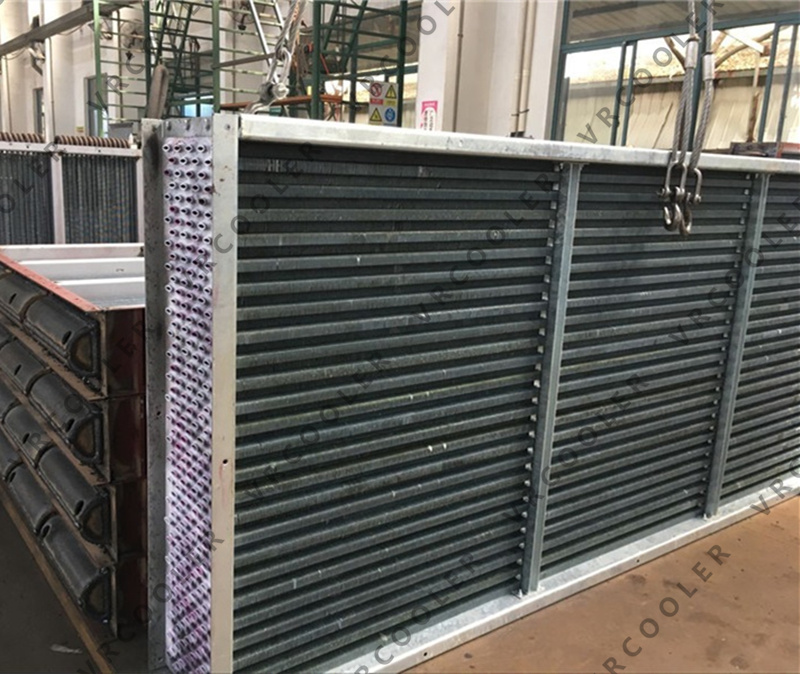

Elliptical Tube Finned Tube Heat Exchanger

Elliptical Tube Finned Tube Heat Exchanger

An elliptical tube finned tube heat exchanger is a type of heat exchange equipment that uses tubes with an elliptical cross section and fins on the surface to achieve efficient heat transfer. This design is typically used in applications where an increased surface area is required to improve heat exchange efficiency or to accommodate special space requirements.

Here are some features and applications of elliptical tube finned tube heat exchangers:

Efficient Heat Transfer: Elliptical finned tube heat exchangers have a large surface area for heat transfer due to the elliptical cross section and fins on the surface, which allows for higher heat transfer efficiencies compared to traditional round tube finned tubes of the same size.

Adaptation to Special Spaces: The elliptical cross-section of elliptical finned tubes makes it easier to adapt to limited spaces or where special shapes are required, thus providing an advantage in some industrial locations or in systems with space constraints.

Improved Fluid Flow: The elliptical cross-section helps to improve fluid flow characteristics, reducing fluid resistance and increasing heat transfer efficiency. This is particularly important in applications where heat transfer in liquid or gaseous fluids takes place.

Widely Used in Chemical, Petroleum and Power Industries: Due to its efficient heat transfer performance, elliptical tube finned tube heat exchanger is widely used in chemical, petroleum and power industries. It can be used for cooling, heating, evaporation, condensation and many other heat exchange processes.

Reduced Wind Resistance: In some air cooling applications, the elliptical shape helps to reduce wind resistance and reduce the energy consumption of the system.

Suitable for High Pressure and High Temperature Environments: Due to its structural characteristics, the elliptical tube and finned tube heat exchanger is usually suitable for high pressure and high temperature working environments, and is able to meet some harsh industrial conditions.
