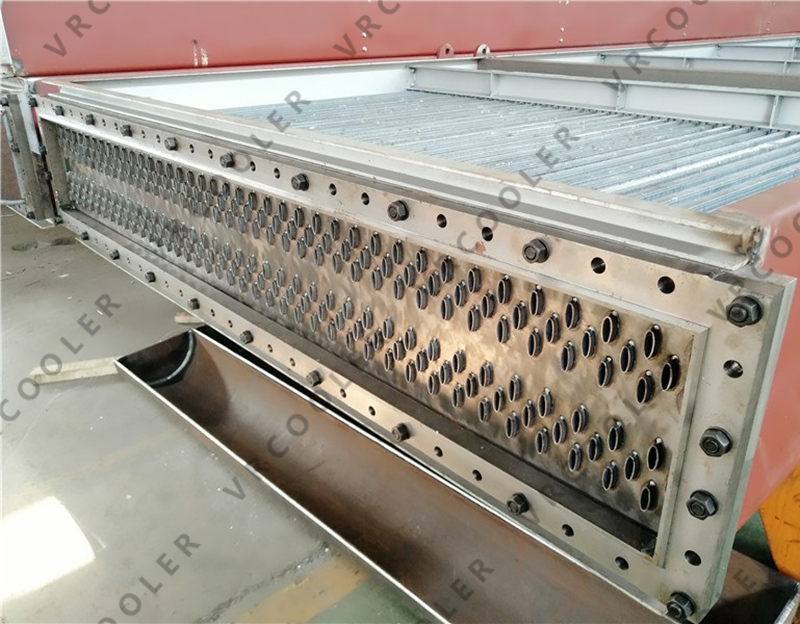

Elliptical Finned Tube Heat Exchanger for Convection Chambers in Petrochemical Heating Furnaces

In petrochemical plants, heating furnaces are core process units used for crude oil distillation, catalytic reforming, hydrogen production, ethylene cracking, and other high-temperature operations. The convection chamber of a heating furnace is specifically designed to recover sensible heat from high-temperature flue gas and transfer it to process fluids or combustion air.
Among various heat transfer solutions, the elliptical finned tube heat exchanger has become a preferred choice for convection chambers due to its superior aerodynamic performance, high thermal efficiency, and strong resistance to fouling.

Role of the Convection Chamber in Petrochemical Furnaces

A typical petrochemical heating furnace consists of:

• Radiant section – where fuel combustion and radiant heat transfer dominate.

• Convection section (convection chamber) – where flue gas heat is recovered through convective heat transfer.

The convection chamber usually accommodates:

• Feed preheaters

• Steam superheaters

• Boiler feedwater economizers

• Combustion air preheaters

Given the dusty, high-temperature, and often corrosive nature of flue gas, the heat exchanger installed in this zone must balance heat transfer efficiency, pressure drop, and long-term reliability.

What Is an Elliptical Finned Tube Heat Exchanger?

An elliptical finned tube heat exchanger is constructed using:

• Elliptical (oval) tubes instead of traditional round tubes

• Continuous or segmented fins welded, extruded, or brazed onto the tube surface

The elliptical tube geometry reduces flow separation and wake formation on the gas side, making it especially suitable for flue gas convection heat transfer in furnaces.

Key Advantages in Petrochemical Convection Chambers

1. Enhanced Heat Transfer Efficiency

Elliptical tubes increase the effective heat transfer area while maintaining smoother gas flow. Compared with round finned tubes, they can achieve:

• Higher overall heat transfer coefficients

• More uniform temperature distribution along the tube bundle

This leads to improved waste heat recovery and lower fuel consumption.

2. Lower Flue Gas Pressure Drop

The streamlined shape of elliptical tubes significantly reduces aerodynamic drag. In petrochemical furnaces, this translates into:

• Reduced induced draft (ID) fan power

• Improved furnace draft stability

• Lower operating energy costs

This advantage is critical for large-capacity furnaces with long convection sections.

3. Improved Anti-Fouling Performance

Flue gas in petrochemical furnaces often contains particulates, coke fines, sulfur compounds, or ash. Elliptical finned tubes:

• Reduce dead zones where dust accumulates

• Minimize soot deposition compared with circular tubes

• Allow longer operation cycles between cleaning

This is particularly beneficial in delayed coking, residue processing, and heavy-oil applications.

4. Compact and High-Density Arrangement

Thanks to lower pressure drop characteristics, elliptical finned tube bundles can be arranged more densely without compromising gas flow. This enables:

• Compact convection chamber design

• Higher heat recovery per unit volume

• Easier retrofit of existing furnaces

Materials and Construction Options

To meet petrochemical operating conditions, elliptical finned tube heat exchangers are available in multiple material combinations:

• Tube materials:
  Carbon steel, stainless steel (304/316/321), Cr-Mo alloy steel, Incoloy, Inconel

• Fin materials:
  Carbon steel, stainless steel, aluminum (for lower-temperature zones)

• Fin attachment methods:
  High-frequency resistance welded (HFW) fins
  Extruded fins
  Laser-welded fins

Material selection is driven by flue gas temperature, sulfur content, corrosion risk, and design life requirements.

Typical Applications in Petrochemical Furnaces

Elliptical finned tube heat exchangers are widely used in convection chambers for:

• Crude and vacuum distillation unit (CDU/VDU) furnaces

• Hydrogen reforming and SMR furnaces

• Ethylene and propylene cracking furnaces

• Aromatics and reforming process heaters

• Delayed coking and visbreaking furnaces

They are suitable for flue gas temperatures ranging from 300°C to over 900°C, depending on material grade and fin design.

Contribution to Energy Efficiency and Emissions Reduction

By maximizing flue gas heat recovery, elliptical finned tube heat exchangers help petrochemical plants:

• Reduce fuel consumption by 5–15%

• Lower CO₂ and NOₓ emissions

• Improve overall furnace thermal efficiency

• Meet stricter energy and environmental regulations

This aligns with global trends toward energy conservation and low-carbon petrochemical production.

Conclusion

The elliptical finned tube heat exchanger is a technically mature and economically attractive solution for convection chambers in petrochemical heating furnaces. Its advantages in heat transfer efficiency, low pressure drop, fouling resistance, and compact design make it particularly well-suited for harsh furnace flue gas environments.
