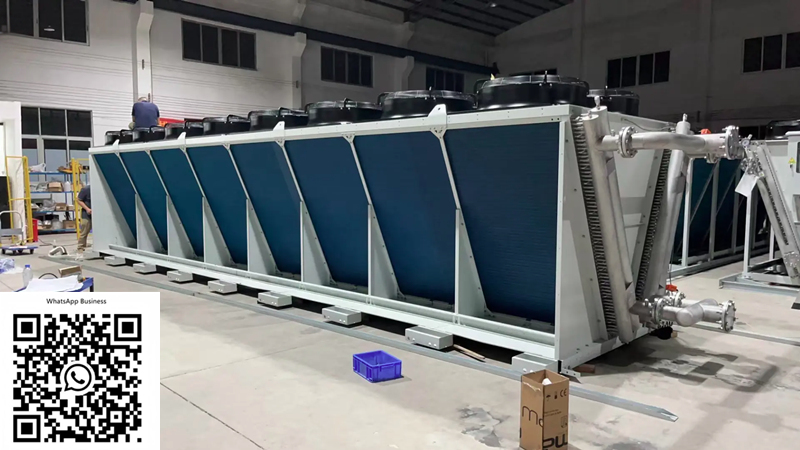

Dry Fluid Cooler for Closed Loop System – Waterless & Low Maintenance Cooling Solution

A dry fluid cooler is a high-efficiency air-cooled heat exchanger specially designed for industrial closed loop recirculating systems. It uses ambient air to sensibly cool circulating water, water-glycol or process fluid, without water evaporation, no open spray loss, perfectly matching closed-loop cooling demands for factories, power plants, HVAC and process chiller systems.

In a closed loop system, hot process fluid flows inside sealed finned coils of the dry fluid cooler. Axial fans force ambient air across the coil surface; heat transfers from fluid to air via sensible heat exchange. The cooled fluid circulates back to equipment in a fully closed loop, no contact between process fluid and outside air.

Main Construction

Heat coil: Copper tube aluminum fin / stainless steel tube anti-corrosion fin

Fan: Low-noise axial fan, VFD speed control optional

Frame: Hot-dip galvanized steel or stainless steel

Control: Automatic temperature control, fan group intelligent start-stop

Typical Applications

Industrial closed loop recirculating cooling system

Chiller & free cooling combined system

Gas engine / generator radiator closed loop circuit

Data center indirect closed cooling

Chemical, pharmaceutical, food processing factory cooling

HVAC central air conditioning closed loop system

We, CSTHEATEXCHANGER, provide custom engineered dry fluid coolers according to cooling capacity, fluid type, temperature difference, installation size and ambient condition. Offer thermal calculation, 3D drawing and one-stop closed loop cooling solution.
