Dry Cooler for Natural Gas Generator Engine

Dry Cooler for Natural Gas Generator Engine

A dry cooler for a natural gas generator engine is a heat - exchanger device designed to dissipate the waste heat generated during the operation of the engine.

The hot coolant from the natural gas generator engine, which has absorbed the heat generated by the engine's combustion process and internal friction, is circulated through the tubes of the dry cooler.

The coolant transfers its heat to the fins attached to the tubes. These fins have a large surface area, which enhances the heat transfer process. Ambient air is then forced or drawn across the fins by a fan. As the air passes over the fins, it absorbs the heat from the fins and the coolant, and the cooled coolant is then recirculated back to the engine to absorb more heat.

Components of a Dry Cooler

Tubes

The tubes are usually made of materials with high - thermal conductivity such as copper or aluminum. Their diameter and wall thickness are designed according to the coolant flow rate and pressure requirements. For example, in a typical natural gas generator engine dry cooler, the tube diameter might range from 10 - 20 mm to ensure sufficient coolant flow and efficient heat transfer.

Fins

Fins are attached to the tubes to increase the heat - transfer area. They can be made of the same material as the tubes or a different material with good heat - dissipating properties. The fin density (number of fins per unit length) and height are carefully designed. A common fin height could be around 10 - 30 mm, and the fin density might be several fins per centimeter. This helps to maximize the contact area between the hot surface and the ambient air.

Fan

The fan is a vital component that provides the necessary air movement across the fins. There are different types of fans, such as axial fans and centrifugal fans. Axial fans are often used due to their high - flow - rate characteristics and relatively simple structure. The fan speed is usually adjustable to control the air - flow rate according to the engine's heat - dissipation requirements and ambient conditions.

Applications

Power Generation Stations

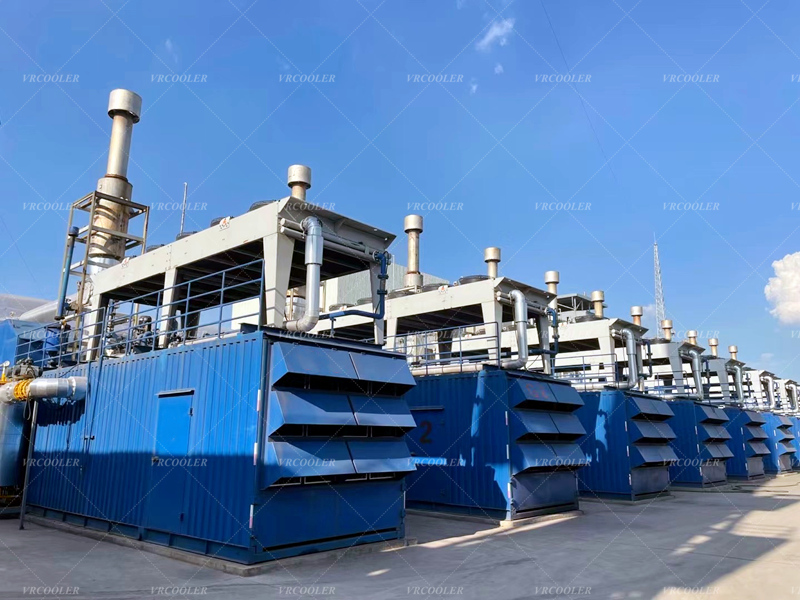

In natural gas - fired power generation stations, dry coolers are used to cool the engines of the generators. They are often installed in outdoor areas where there is sufficient air circulation. The size and capacity of the dry coolers are designed according to the power output of the generators and the local climate conditions.

Industrial Facilities

In industrial settings where natural gas generators are used for backup power or as a primary power source, dry coolers are an important part of the equipment. They need to be integrated with the overall facility layout to ensure proper air - flow and heat - dissipation paths.
