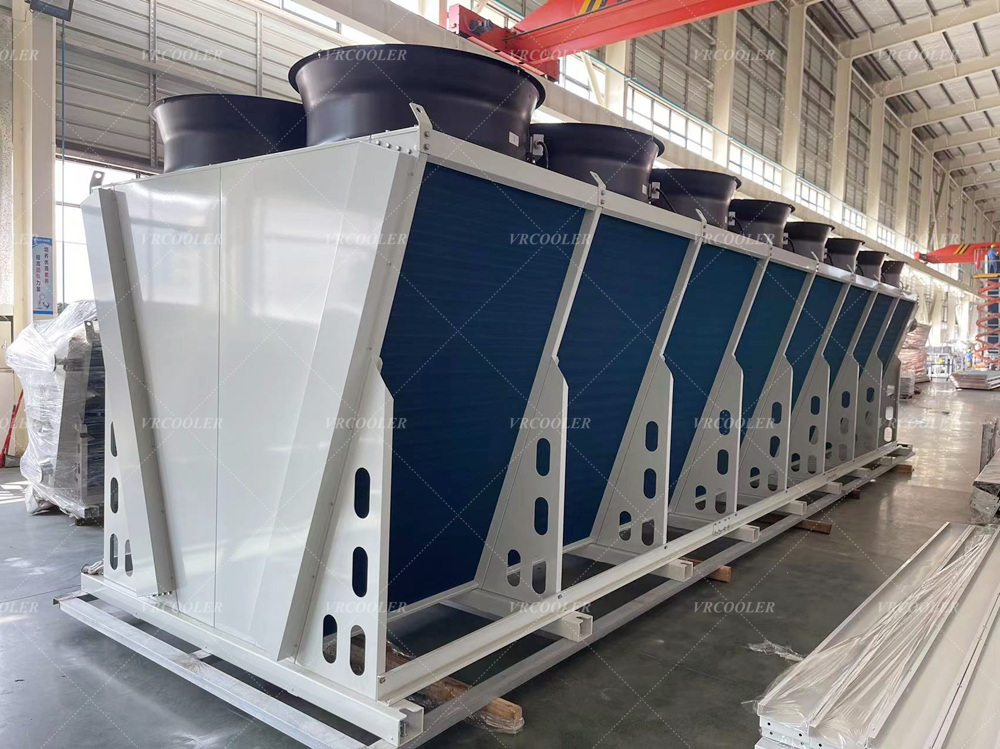

Dry Cooler for Bc888 Crypto Miner Liquid Cooling

Dry Cooler for Bc888 Crypto Miner Liquid Cooling

In a BC888 crypto miner liquid - cooling system, a dry cooler is a crucial component. The purpose of the liquid - cooling system is to efficiently remove the heat generated by the high - performance computing components of the crypto miner. The dry cooler serves as the external heat exchanger that dissipates the heat absorbed by the cooling liquid to the surrounding air.

Working Principle of the Dry Cooler

Heat Transfer from Liquid to Air

The hot cooling liquid from the BC888 miner's liquid - cooling loop is pumped into the dry cooler. Inside the dry cooler, the liquid flows through a set of tubes or plates. These tubes or plates are designed to have a large surface area to enhance heat transfer. The heat from the liquid is conducted through the walls of the tubes or plates to the outer surface.

Ambient air is then forced over the outer surface of the tubes or plates by a fan or fans. As the air comes into contact with the hot surface, heat is transferred from the surface to the air through convection. The heated air is then expelled from the dry cooler, and the cooled liquid is returned to the miner's cooling loop to continue absorbing heat.

Fan - Driven Airflow and Its Importance

The fan in the dry cooler is a vital element. It creates the necessary airflow to ensure efficient heat transfer. The speed and volume of the airflow can be adjusted according to the heat load of the miner. A higher - speed fan can increase the rate of heat dissipation, but it also consumes more power. The fan's design, such as the blade pitch and number of blades, affects the airflow characteristics. For example, an axial - flow fan is often used because it can move a large volume of air in a relatively straight path, which is suitable for cooling applications.

Components of the Dry Cooler for BC888 Liquid Cooling

Heat Exchanger

Tubes or Plates: The heat exchanger in a dry cooler typically consists of either finned tubes or flat plates. Finned - tube heat exchangers have tubes with attached fins. The fins increase the surface area for heat transfer, allowing for more efficient cooling. The tubes are usually made of materials with good thermal conductivity, such as copper or copper - nickel alloys. In a plate - type heat exchanger, the plates are designed with patterns to enhance turbulence and heat transfer. They are usually made of stainless steel for corrosion resistance.

Header and Manifold: The header and manifold are used to distribute the cooling liquid evenly through the tubes or plates. They ensure that the liquid flow is uniform, which is crucial for efficient heat transfer. The design of the header and manifold takes into account the flow rate and pressure drop of the liquid to optimize the performance of the heat exchanger.

Fan Assembly

Fan Motor: The fan is powered by a motor. The motor's power and speed characteristics are selected based on the heat dissipation requirements of the BC888 miner. A high - power motor can drive the fan at a higher speed, but it may also generate more noise and consume more electricity.

Blades and Housing: The fan blades are designed to move air efficiently. The shape and pitch of the blades determine the airflow volume and pressure. The housing of the fan assembly is used to direct the airflow over the heat exchanger. It may have features such as louvers or diffusers to optimize the air distribution and reduce air recirculation.

Frame and Casing

The frame provides structural support for the dry cooler. It is usually made of metal, such as steel or aluminum, to ensure stability and durability. The casing encloses the heat exchanger and fan assembly. It protects the internal components from external factors such as dust, rain, and physical damage. The casing may also have insulation to reduce heat loss to the surroundings and improve the overall efficiency of the dry cooler.

Benefits of Using a Dry Cooler in BC888 Liquid - Cooling Systems

Energy Efficiency

Dry coolers can be more energy - efficient than other cooling methods in some cases. Since they rely mainly on ambient air for cooling, they do not require a secondary cooling medium like water - cooled systems. This can reduce the energy consumption associated with pumping and cooling a secondary medium. In a crypto - mining environment, where energy costs are a significant factor, this can lead to cost savings.

Low - Maintenance

Compared to water - cooled systems, dry coolers generally have a simpler design and are less prone to issues such as leaks or corrosion caused by water. The maintenance of a dry cooler mainly involves cleaning the heat exchanger surfaces to remove dust and debris, which can impede heat transfer. Regular inspection of the fan and its motor to ensure proper operation is also necessary.

Environmental Friendliness

Dry coolers have a lower environmental impact as they do not use refrigerants or consume large amounts of water. There is no risk of refrigerant leakage, which can contribute to ozone depletion or global warming. Also, the reduced water consumption is beneficial, especially in areas where water resources are scarce.
