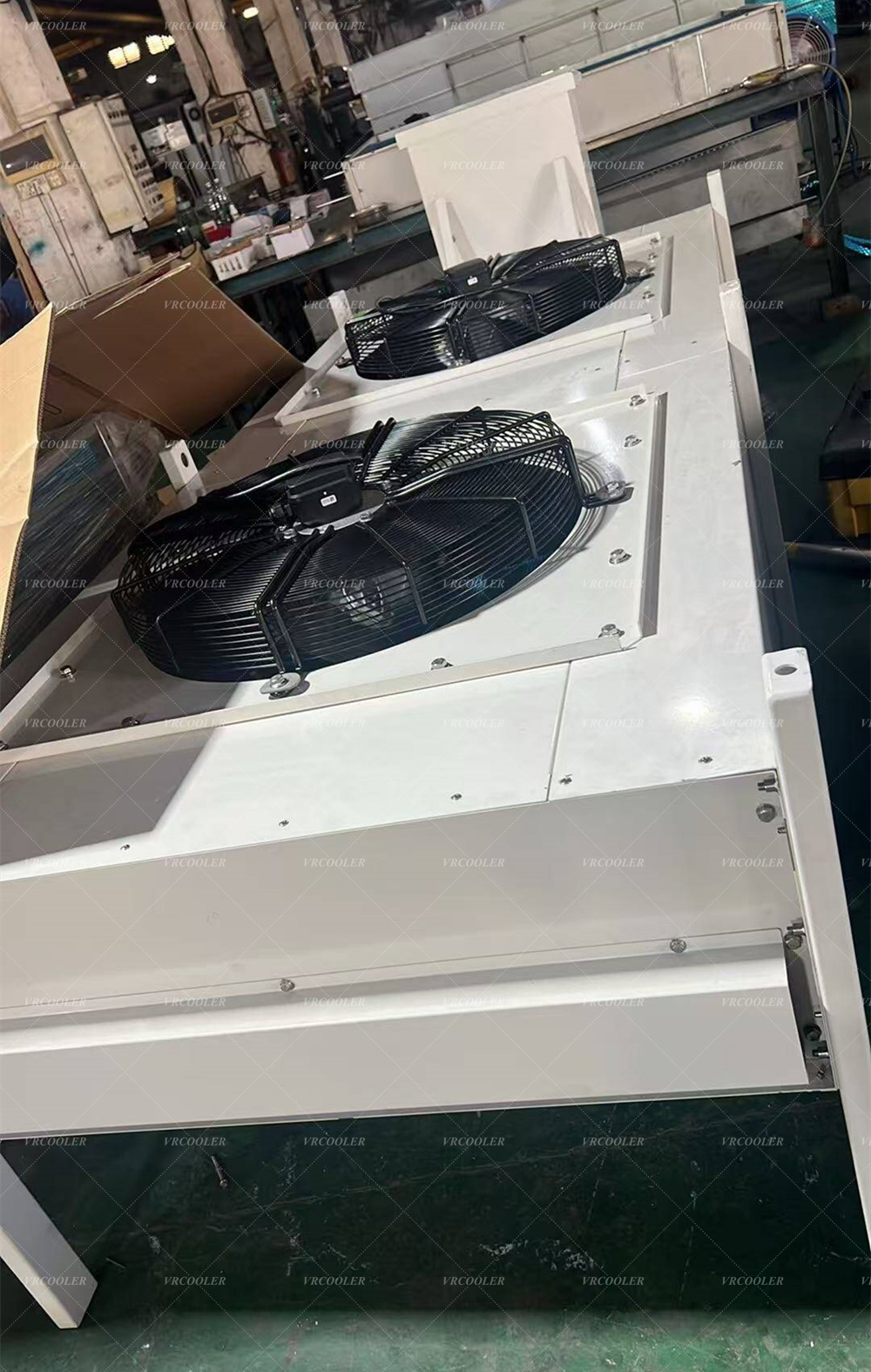

Recently, CST completed a repeat-order project for a dry cooler. Based on the standard product catalogue, the customer selected one HDFS263-0094 dry cooler, and the production and delivery preparation have now been completed. According to the catalogue, this model is rated for a 34% ethylene glycol operating condition, with a listed heat dissipation capacity of 94 kW. Final performance and configuration are subject to the technical documents and order confirmed by both parties.
Fast Repeat Selection Based on the Standard Catalogue
This project was a repeat-order requirement from an existing customer. Based on previous product experience and system integration, the customer confirmed the model according to the CST standard catalogue and selected one HDFS263-0094 dry cooler. The repeat-order production has been completed.
A standardized product catalogue helps customers review product series, configurations, and selection information more efficiently. It also allows repeat projects to move forward more quickly through model confirmation, technical communication, and order execution. For customers with previous application experience, selecting the same standard model can reduce repeated communication and improve project continuity.
HDFS263-0094 Dry Cooler Catalogue Specifications
A dry cooler uses ambient air to cool a circulating fluid. It is commonly used in systems that require process-fluid cooling, closed-loop heat rejection, or reduced water consumption.
According to the CST standard catalogue, the reference specifications for model HDFS263-0094 are as follows:
Parameter | Catalogue Value |
|---|---|
Reference operating condition | 34% ethylene glycol |
Heat dissipation capacity | 94 kW |
Flow rate | 17.6 m³/h |
Pressure drop | 114 kPa |
Heat transfer area | 198 m² |
Internal volume | 26.0 L |
Air flow | 33,113 m³/h |
Sound pressure level | 61 dB(A) at 10 m |
Fan configuration | 2 × Ø630 |
Connection | DN50 |
Reference weight | 422 kg |
Quantity | 1 unit |
The above values are reference data from the standard catalogue for the stated operating condition. Actual performance, materials, accessories, and configuration should be confirmed against the project technical documents and the customer-approved selection data.
For this repeat-order project, CST reviewed the confirmed standard model, product configuration, delivery requirements, and related technical information before completing production. The HDFS263-0094 dry cooler has now completed the repeat-order manufacturing process and delivery preparation in accordance with the final order and technical documents agreed by both parties.
The completion of this HDFS263-0094 repeat-order project reflects the customer’s continued recognition of CST’s product performance and service continuity. CST will continue to provide professional air-cooling and heat-transfer solutions for industrial applications.
If you are looking for a dry cooler, air cooler, or customized heat transfer equipment, please contact CST with your application conditions, installation requirements, or standard catalogue model. Our team will provide selection and quotation support.
CST (VRCOOLERTECH) specializes in the design and manufacture of heat exchangers, refrigeration equipment, and air cooling equipment. The company provides standard and customized products, as well as OEM and ODM services, for customers worldwide. CST supports the complete project process, from requirement review and product selection to solution confirmation, manufacturing, and delivery.
