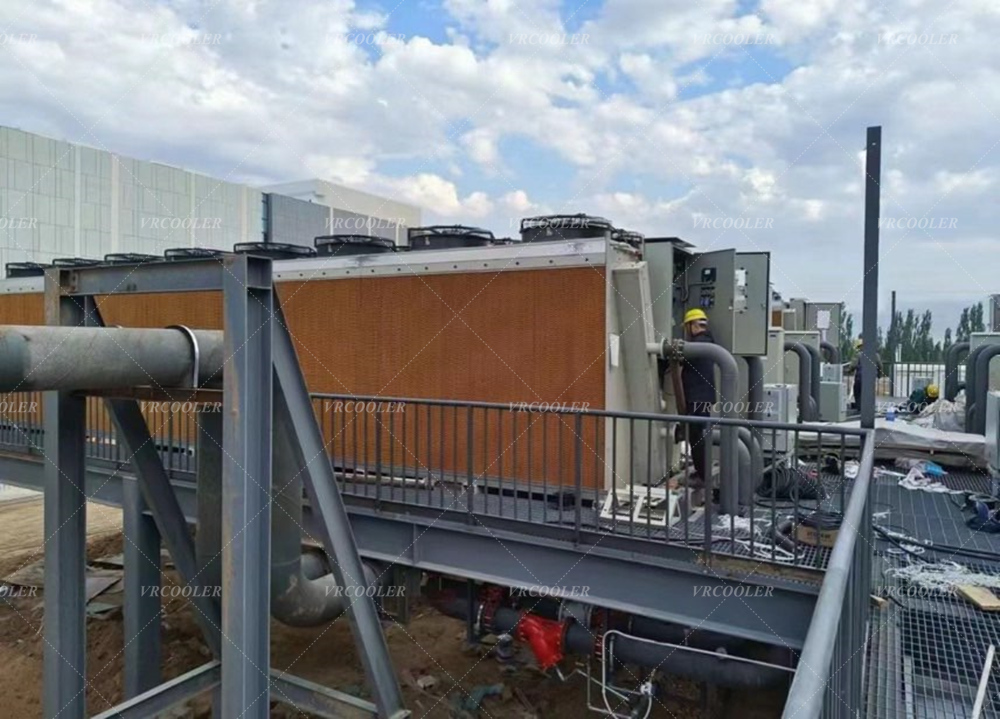

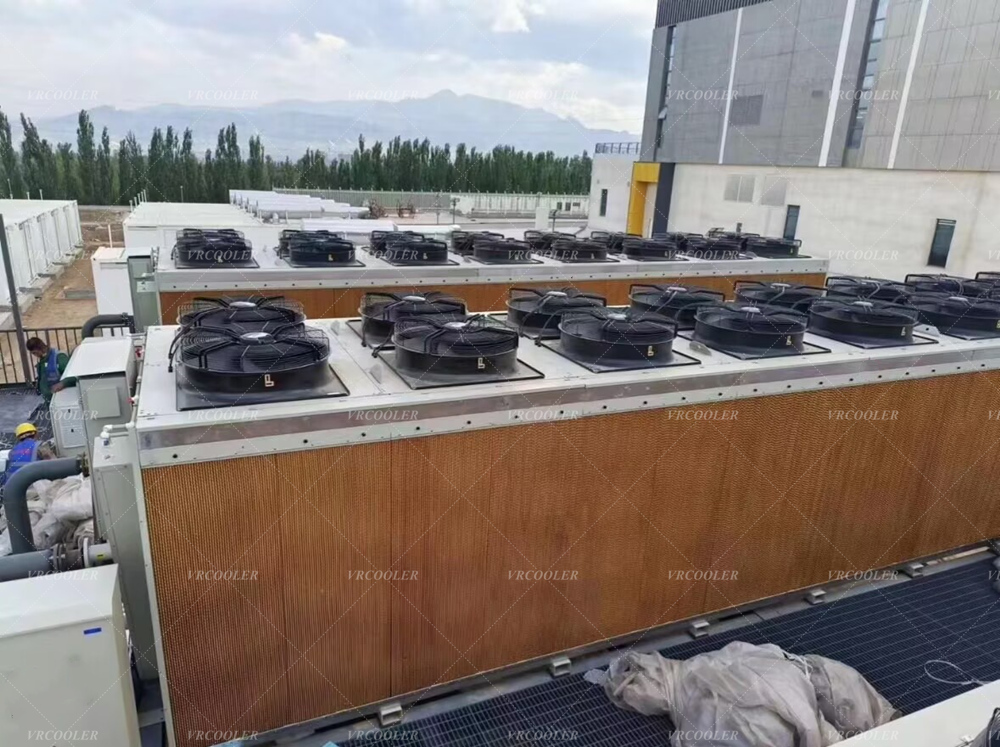

Adiabatic cooling pad maintenance keeps the wet air-pre-cooling section clean, evenly wetted and safe to operate. The work covers more than the pad itself. We also inspect the water pump, filter, manifold, spray nozzles, drain, sensors, fan, finned coil and controls.
An adiabatic cooler uses evaporation to reduce the temperature of air before that air reaches a heat-transfer coil. Water flows across a wet pad or through a misting system, and evaporation absorbs heat from the air. The cooler air then passes across the finned coil to remove heat from a circulating fluid.
CSTHEATEXCHANGER’s Adiabatic Condenser page describes warm air passing through a wet medium or misting system. Water vaporizes and absorbs heat from the air. Its Air Cooling Unit category and Dry Air Cooler category provide related air-cooling equipment information.
The maintenance goal is simple: keep the pad open, wet it evenly, control the water quality and prevent water from reaching places where it does not belong. A blocked pad, dry section, scaled nozzle or dirty drain can reduce cooling performance even when the fans and fluid circuit are operating.
The pad provides a large wet surface for evaporation. Air passes through the pad, contacts water and leaves cooler when evaporation is effective. A pad that is uniformly wet and free from blockage gives the downstream coil a more consistent entering-air condition.
The pad must allow enough airflow without excessive resistance. Dust, scale, mineral deposits, algae, biological growth, fibers and damaged material can close the air passages. The fan may then use more power while less air reaches the coil.
We inspect the pad for:
Dry strips or uneven wetting.
Scale and mineral deposits.
Mud, dust, leaves and suspended solids.
Biological growth or unusual odor.
Compression, swelling or damaged edges.
Cracks, gaps and bypass paths.
Blocked channels.
Water carryover toward the coil.
Degradation at the frame and supports.
The pad material and structure vary by equipment design. Cleaning, chemical treatment and replacement must follow the supplier’s instructions. A method that is safe for one pad material may damage another.
The pad is only one component in the wet section. Even a new pad will perform poorly if the pump is undersized, the water manifold is blocked, the filter is dirty or the drain cannot remove excess water.
The operator can identify many problems through a short visual and operating check. The exact frequency depends on whether the cooler runs continuously, seasonally or only during high ambient conditions.
We check:
Whether the pad is wet across its working area.
Whether the pump starts when adiabatic mode is enabled.
Whether water is reaching the distribution header.
Whether any nozzle is visibly blocked.
Whether water is spraying outside the intended area.
Whether water is carrying over toward the coil or fan.
Whether the fan has unusual noise or vibration.
Whether the process-fluid temperature is within its normal trend.
Whether alarms or low-water signals are active.
Whether the drain is flowing freely.
A dry strip may indicate a blocked nozzle, low pump pressure, a dirty filter, poor manifold distribution or a pad that has shifted. A sudden increase in water consumption may indicate a leak, excessive spray, a drain problem or a control fault.
The operator should record unusual changes rather than relying only on a visual impression. Compare pad wetting, pump status, ambient condition, fan speed and process-fluid temperature. A single hot day can change performance, so the operating context matters.
A weekly inspection gives the team time to find early fouling before the pad becomes difficult to clean. The operator should isolate the water system according to the equipment procedure before touching the pad, pump or spray components.
Weekly work may include:
Inspecting the pad face and edges.
Checking the top water-distribution header.
Looking for blocked or uneven spray patterns.
Cleaning the accessible filter or strainer.
Checking the pump for leakage and vibration.
Inspecting hoses, valves and flexible connections.
Checking the drain and overflow path.
Looking for water on the casing, frame or floor.
Inspecting the finned coil for wet carryover.
Checking fan guards and nearby obstructions.
A pad can appear wet while still carrying a large amount of scale inside its channels. Compare airflow, pressure drop and process-fluid temperature with previous records. If the fan runs faster or the process-fluid outlet temperature rises, the pad and coil may both need inspection.
We avoid forcing tools through the pad channels. Mechanical damage can create bypass paths or shed material into the water system. Gentle cleaning is preferable to aggressive scraping unless the pad supplier specifically allows it.
Water quality is one of the main factors controlling adiabatic-pad service. As water evaporates, minerals that do not evaporate remain in the circulating or supply water. These minerals can accumulate on pads, nozzles, filters, basins and nearby coil surfaces.
We review:
Hardness and dissolved minerals.
Total dissolved solids.
Suspended solids and sediment.
pH and corrosion tendency.
Water temperature.
Makeup-water quality.
Blowdown or drain strategy.
Filter and strainer condition.
Treatment requirements.
Scale reduces wet surface and blocks air passages. It can also narrow nozzle openings and disturb the spray pattern. Water treatment should follow the equipment design and local rules. Adding chemicals without checking pad, pump, piping and coating compatibility can create a new problem.
If the system recirculates water, the team should define how concentration is controlled. Blowdown removes concentrated water, while makeup water replaces it. If the system uses once-through water, the water balance and drain arrangement are different.
We do not prescribe a universal water-quality limit in a general article. The correct range depends on the pad, nozzles, materials, local water and treatment program.
Cleaning removes dust, scale and deposits that reduce evaporation and airflow. The method should be selected after identifying the pad material, coating, frame and water circuit.
A practical cleaning sequence is:
Stop adiabatic operation and isolate the water supply.
Follow lockout and electrical-safety procedures.
Drain or depressurize the relevant water section.
Remove loose debris from the pad face and casing.
Inspect filters, strainers and nozzles.
Clean the pad using the approved method.
Clean the manifold and drain path.
Flush the water section where permitted.
Check that water flows evenly across the pad.
Restart at low flow and inspect for leaks or carryover.
High-pressure water can damage some pad materials or bend nearby fins. Aggressive acid or alkaline cleaners can attack metals, coatings, seals or the pad structure. The cleaning team should use the manufacturer’s instructions and the site’s chemical-handling procedure.
If deposits cannot be removed without damaging the pad, replacement may be more practical than repeated aggressive cleaning. The decision depends on pad condition, replacement access, water quality and the cost of continued pressure drop or poor cooling.
The water-distribution system determines whether the pad receives enough water. A clean pad cannot compensate for a poorly distributed spray pattern.
We inspect:
Nozzle openings and spray direction.
Manifold pressure and flow.
Header connections and seals.
Pump rotation and vibration.
Pump suction and filter condition.
Valve response and isolation.
Flexible hoses and supports.
Low-water and high-pressure signals.
Leakage around fittings.
Nozzles should be cleaned with a method that does not enlarge the opening or change the spray pattern. A wire or sharp tool can damage a nozzle. If the nozzle has wear or internal damage, replacement is usually more predictable than repeated adjustment.
Pump cavitation, air in the suction line, a blocked strainer or a closed valve can reduce water flow. Check the full hydraulic path before blaming the pad. A pressure reading at the pump does not prove that water is distributed evenly across the entire pad.
The pump should not run dry. Low-water protection, level sensing and a clear startup sequence help protect the equipment. The pump and spray system should stop when the cooler returns to dry mode, unless the project control sequence specifies another operation.
A monthly inspection can combine the water-side check with coil, fan and control review. Seasonal service should be completed before the period when adiabatic operation is expected to carry the highest heat load.
Monthly or seasonal work may include:
Measuring air-side pressure drop.
Recording process-fluid inlet and outlet temperatures.
Checking fan airflow and speed.
Inspecting the entire finned coil.
Checking drain, overflow and basin condition.
Testing sensors and water-level signals.
Reviewing water treatment and blowdown records.
Inspecting pad supports and seals.
Checking pump and valve operation.
Testing dry-mode and wet-mode changeover.
Inspecting casing corrosion and fasteners.
Confirming spare pads, nozzles and filters.
Before summer operation, confirm that the pump, spray section and water supply can operate at the required heat load. Before winter, drain or protect water-containing components according to the system design.
The correct interval depends on dust, water hardness, humidity, operating hours, local climate and whether the water is recirculated. A cooler in clean air with treated water may need a different schedule from one exposed to dust, salt or hard water.
A cooling pad may need replacement when it is structurally damaged, permanently blocked, compressed, contaminated or no longer wets evenly after approved cleaning.
Replacement indicators include:
Persistent dry channels.
Severe scale that cannot be removed safely.
Deformed or collapsed pad structure.
Water bypass around the pad.
Material shedding into the water system.
Repeated blockage of downstream nozzles or drains.
Higher pressure drop without another clear cause.
Declining adiabatic performance after cleaning.
Chemical damage or biological contamination.
We compare the pad dimensions, thickness, channel orientation, frame, sealing method and water-distribution arrangement before ordering a replacement. A pad with the wrong resistance can change airflow and fan performance, even if it fits the opening.
The replacement should also be checked against the spray pressure, water quality, drain capacity and coil clearance. Installing a more restrictive pad without recalculating the fan can reduce total cooler performance.
We do not state a universal pad lifespan. Service life depends on water chemistry, cleaning, air contamination, wet hours, material, temperature and operating practice.
Wet surfaces and standing water can support biological growth if the system is not managed properly. The risk depends on water temperature, stagnation, cleaning, treatment, exposure and local requirements.
We recommend that the site define:
Water-system inspection responsibility.
Cleaning and disinfection procedure.
Drain-down during idle periods.
Water-treatment and recordkeeping requirements.
Safe access and personal protective equipment.
Response to unusual odor, slime or visible growth.
Disposal of contaminated water.
Recommissioning checks after a long shutdown.
An adiabatic pad should not remain unnecessarily wet when the cooler is not operating. Drainage and dry-out may be part of the shutdown sequence, subject to the equipment design and climate.
This article does not replace local health, water-treatment or workplace-safety requirements. The responsible site team must select and document the treatment process for the installation. Maintenance staff should also record cleaning chemicals, contact time, flushing and any abnormal water condition so that repeated problems can be traced to a source.
Water in a pad, manifold, pump, filter or drain can freeze. Expansion from freezing may damage components, especially when the equipment is outdoors or exposed to cold air.
Before winter or a long shutdown, we check:
Water-pump isolation.
Drain and low-point connections.
Pad and manifold drain-down.
Wet-pad storage condition where the pad is removed.
Heat tracing or insulation if used.
Antifreeze compatibility where specified.
Fan and coil dry-mode operation.
Restart and refill procedure.
A system that drains completely may need a controlled refill and air-removal procedure before the next wet-mode start. A system designed to retain water needs a different freeze-protection plan. We label drain points, isolation valves and restart steps so the operator can restore the wet section without running the pump dry or sending unfiltered water toward the pad. We also confirm that sensors and alarms remain active during shutdown.
A maintenance record helps distinguish a pad problem from a fan, pump, water or process problem. We record:
Ambient temperature and humidity.
Process-fluid inlet and outlet temperature.
Fan speed and status.
Pump status and water pressure.
Water conductivity or treatment readings where used.
Air-side pressure drop.
Pad cleaning and replacement dates.
Nozzle, filter and pump service.
Alarms, leaks and unusual odors.
Dry-mode and wet-mode changeover results.
If the process fluid is too warm, check whether the ambient condition has changed before increasing water flow. Then inspect fan airflow, pad wetting, nozzle condition, pump flow, coil cleanliness, process load and sensor accuracy.
If water consumption rises, look for leaks, excessive spray, blocked drains, incorrect valve position, over-wetting or a change in control settings. If the pad is dry, check pump suction, filter blockage, manifold pressure, water level and nozzle distribution.
If air pressure drop increases, inspect the pad and finned coil for dust, scale, wet carryover and deformation. A clean pad with an obstructed fan inlet can show the same symptom as a fouled pad.
When we review an adiabatic cooling pad or replacement wet section, we ask for the pad dimensions, material, airflow, water source, water quality, pump pressure, nozzle type, drain arrangement, finned-coil layout, ambient conditions, dust exposure, operating hours, winter conditions and maintenance access.
CSTHEATEXCHANGER’s Adiabatic Condenser page explains evaporative cooling through a wet medium or misting system. Its Air Cooling Unit category and Dry Air Cooler category provide related air-cooling and dry-cooling information.
We support adiabatic cooling packages, finned coils, air-cooled fluid coolers, wet sections and replacement heat-exchanger components. Contact CSTHEATEXCHANGER to discuss adiabatic cooling-pad maintenance or replacement.
Adiabatic cooling pad maintenance keeps the wet surface open, evenly wetted and free from damaging scale or contamination. The complete service plan must also cover water quality, pump, filter, nozzles, manifold, drains, fan, finned coil, controls, biological management and winter protection. The correct interval depends on site conditions and the equipment design, so there is no universal cleaning schedule or pad life.
