York YGFC series fan‑coil units are widely deployed in hotels, office buildings, hospitals and commercial HVAC projects. After long‑time operation, original cooling coils may suffer from tube corrosion, leakage, fin clogging and performance degradation. Our 100% interchangeable replacement chilled‑water coils are precisely manufactured to match original YGFC OEM specifications, supporting direct drop‑in replacement without modifying existing unit cabinet, water connections or drain pan layout.
These replacement tube‑fin coils adopt seamless copper tubes paired with hydrophilic louvered aluminum fins. Available in 2‑row, 3‑row and 3+1 row (4‑pipe) configurations, fully covering YGFC02‑YGFC14 full model range. Each coil undergoes hydraulic pressure test before shipment to guarantee leak‑free site operation.
100% direct OEM replacement: Exact match of original coil outer dimension, tube row count, fin pitch, water circuit layout, inlet/outlet port size & position. No cabinet rework required for fast on‑site swap‑out.
Original‑equivalent thermal performance: Replicates OEM cooling & heating capacity, air‑side pressure drop and water‑side pressure drop for YGFC series; supports two‑pipe and four‑pipe system versions.
Material specification: φ9.52 mm seamless copper tube, mechanical expanded to aluminum fins. Hydrophilic coating standard for cooling‑dehumidification; epoxy anti‑corrosion coating optional for coastal / high‑humidity environments.
Flexible port orientation: Left‑hand / right‑hand water port conversion available, consistent with original YGFC unit design. Brass header connections match original 3/4" thread standard.
Strict factory quality control: 1.6 MPa hydraulic pressure holding test, leak inspection; compatible with chilled‑water 7℃/12℃ working condition.
Full‑model coverage: Fit YGFC‑02, 03, 04, 05, 06, 07, 08, 10, 12, 14, support standard static and high‑static‑pressure variants (S / H / U).

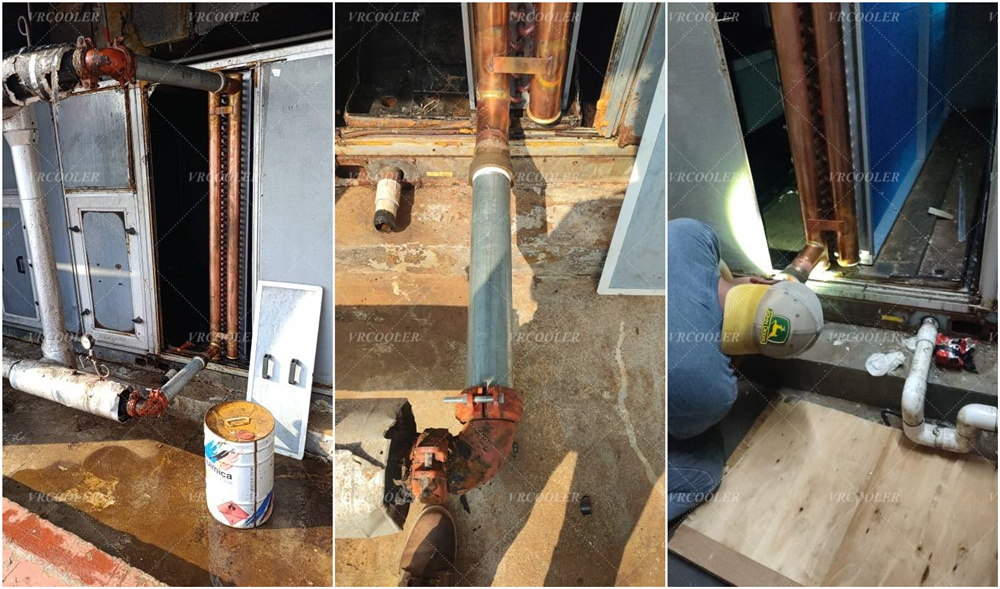

Retrofit & maintenance for existing York YGFC fan‑coil units
Commercial building HVAC renovation projects
Hotel, hospital, office terminal coil replacement
Spare‑part stock for HVAC contractors & facility maintenance companies
We support sample trial orders and bulk‑volume OEM supply. Provide coil replacement according to unit model number, original drawings or physical sample measurement. Deliver drop‑in coils to bring failed YGFC fan‑coil units back to original design performance.
