If you need to design a radiator for a beauty instrument welding machine, here are some basic guidelines:
Heat sink type: Choose the type of radiator that is suitable for that welding machine. Common types of heat sinks include heat sinks, cooling fans, and cooling tubes. Select the most suitable type according to the power and heat dissipation needs of the welding machine.
Radiator size: Determine the size of the radiator according to the size of the welding machine and heat dissipation needs. Ensure that the heat sink is large enough to dissipate heat effectively, and also consider the space limitations of the welding machine.
Material selection: Select materials with good heat dissipation properties. Commonly used radiator materials include aluminium alloy and copper. Aluminium alloy is a common choice because of its good thermal conductivity and lightweight properties.
Heat sink design: Design the structure of the heat sink to ensure maximum thermal efficiency. Heat sinks usually have a number of fins or tubes to increase surface area and promote heat dissipation. Also, ensure that there is sufficient contact area between the heat sink and the welding machine so that heat can be transferred to the heat sink efficiently.
FAN SELECTION: If you choose to use a cooling fan, make sure you select the proper type and size of fan. The size and speed of the fan should provide sufficient air flow to cool the heat sink and maintain the proper operating temperature of the welder.
Mounting Location: Mount the heat sink in a suitable location on the welding machine to ensure that the heat sink receives adequate air flow. Avoid placing the radiator in a confined space as this may affect the cooling effect.

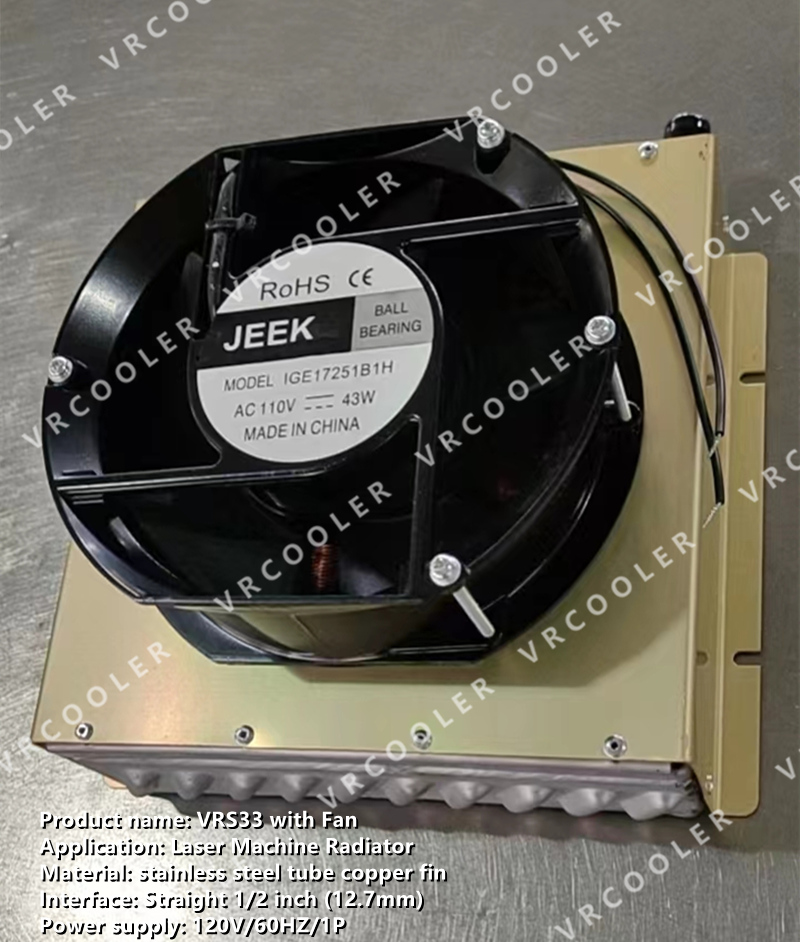

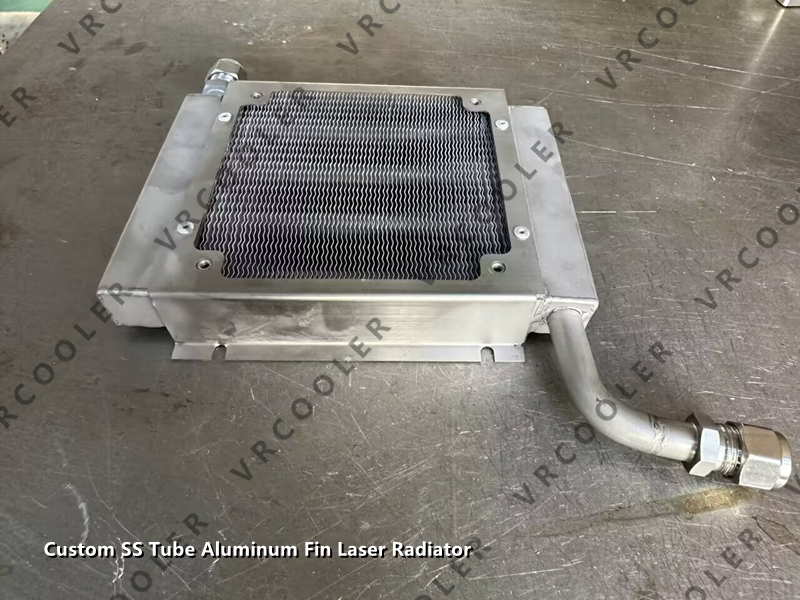

Vrcoolertech CST has standard laser radiator for your request, contact us via email to get our catalog: info@cstheatexchanger.com
