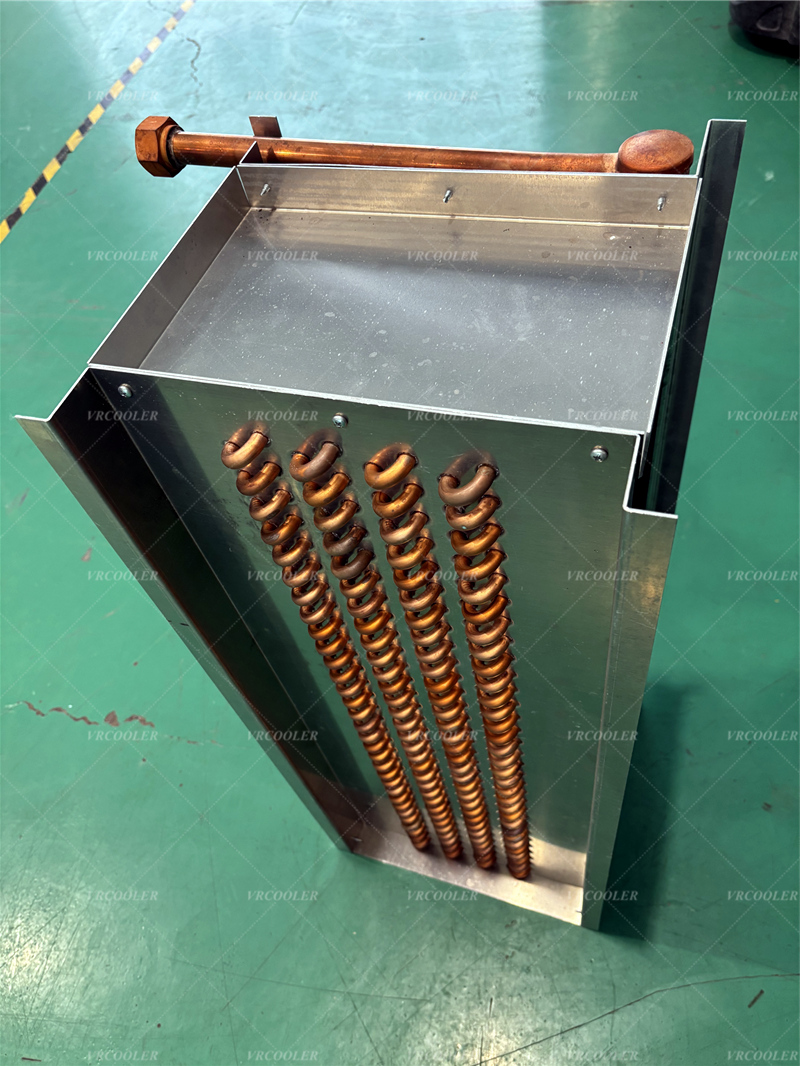

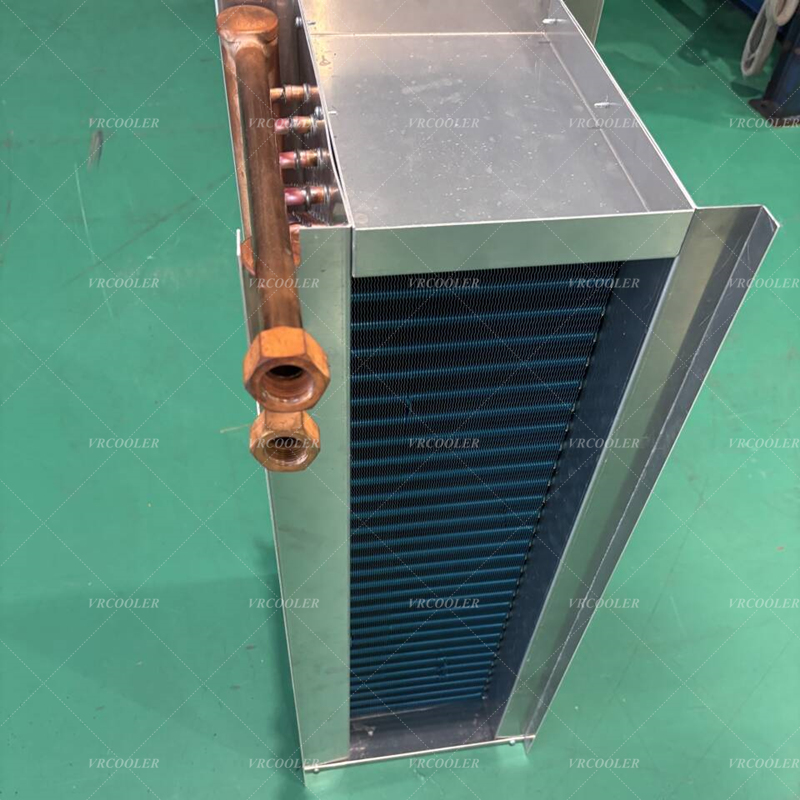

We provide full drawing-based customization service for tube fin heat exchangers, supporting OEM & ODM manufacturing strictly following customers’ engineering drawings, technical datasheets, working condition parameters and dimensional requirements. These customized heat exchangers are widely applied in energy storage, HVAC, AHU, rooftop units, gas storage, industrial high temperature & high pressure cooling systems.
Drawings & Files We Accept
- 2D engineering drawings: DWG, DXF, PDF mechanical drawings
- 3D models: STEP, IGES, SolidWorks, UG files
- Hand-drawn dimension sketches, OEM old coil photos with size marking
- Customer technical specification sheets, circuit layout diagrams
- Original failed coil samples for reverse engineering & duplication
1. 100% consistent with your design, no on-site cabinet modification required after installation
2. Suitable for special non-standard equipment, prototype development and OEM replacement coils
3. Flexible material upgrade: high-pressure stainless steel structure for energy storage high-temperature & high-pressure working conditions
4. One-stop service: from drawing analysis, quotation, sample trial to mass production
5. Comply with industrial energy storage, HVAC, CAES system safety standards
