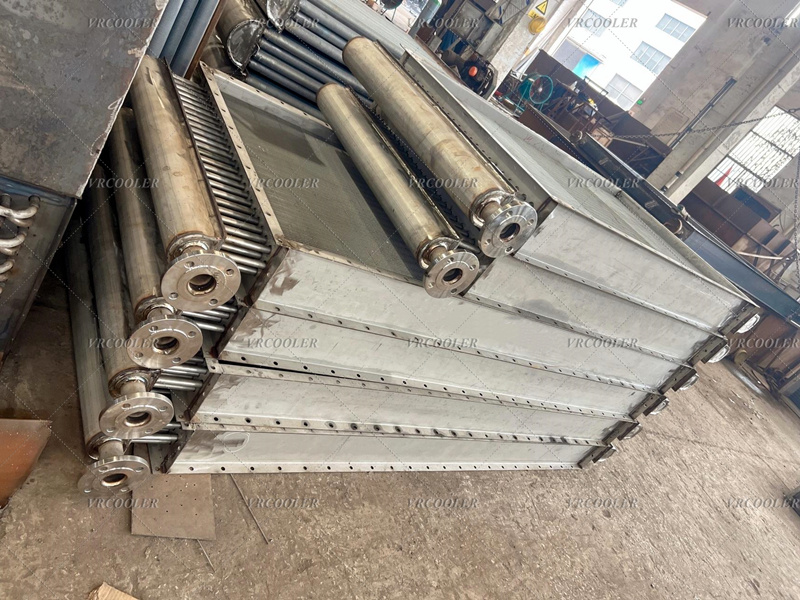

Customized Radiator for Wind Mill Application Supply

Customized Radiator for Wind Mill Application Supply

Design Considerations

Heat Dissipation Capacity: Wind turbines generate a significant amount of heat due to the operation of components such as generators, gearboxes, and power electronics. The radiator must be designed to dissipate this heat effectively. The heat dissipation capacity is calculated based on the power losses of the components and the maximum allowable operating temperature. For example, a large - scale wind turbine with a high - power generator may require a radiator with a heat dissipation capacity of several kilowatts.

Size and Shape Constraints: The physical space available inside a wind turbine nacelle is limited. Radiators need to be designed to fit within these constraints. They are often custom - shaped to conform to the available space, which may be irregular due to the presence of other equipment. Additionally, the weight of the radiator is a concern as it affects the overall balance and structural integrity of the wind turbine.

Environmental Factors: Wind turbines are exposed to harsh environmental conditions, including wide temperature variations, high winds, humidity, and salt spray in coastal areas. The radiator must be designed to withstand these conditions. For example, it may need to have a corrosion - resistant coating to prevent damage from salt - laden air near the coast.

Manufacturing Process

Material Selection: High - quality materials are crucial. Aluminum or copper alloys are often used for the heat - exchanging fins and tubes due to their excellent thermal conductivity. The housing of the radiator is usually made of a durable, weather - resistant material such as stainless steel or a fiberglass - reinforced composite.

Assembly and Quality Control: The radiator is assembled with precision to ensure proper fit and function. Each component, such as the fins, tubes, and connectors, is carefully installed and tested. Quality control procedures involve leak testing to ensure that there are no coolant leaks, and performance testing to verify that the radiator meets the specified heat dissipation requirements.

Customization Options: Manufacturers offer a range of customization options. This includes the number and arrangement of fins and tubes to optimize heat transfer, the type of coolant used (such as water - glycol mixtures), and the connection interfaces to match the wind turbine's cooling system.
