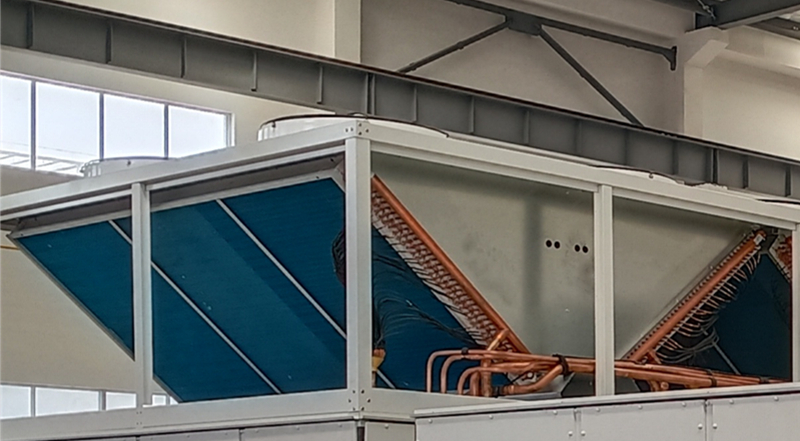

V‑type air condenser is the core heat‑rejection component for modern air‑cooled chiller systems. Its unique V‑angled coil layout delivers large heat‑exchange surface within limited footprint, solving space‑constrained installation challenges for rooftop and compact‑layout chiller units. Proper V‑type condenser design directly determines chiller condensing temperature, system energy efficiency and stable operation under high‑ambient‑temperature outdoor conditions.
We manufacture custom V‑shape tube‑fin condenser coils tailored for air‑cooled chillers. Built with seamless inner‑grooved copper tubes paired with high‑performance aluminium fins. Multiple anti‑corrosion fin treatments are available for outdoor harsh environments. Every coil undergoes pressure‑holding and helium leak test before delivery to eliminate refrigerant leakage risk for long‑run outdoor service.
Core Product Features
Space‑saving V‑angle structure: Two coil banks arranged at V‑angle, maximizes heat transfer area without enlarging base footprint; improves airflow uniformity, reduces ventilation dead zones.
Premium tube‑fin construction: Inner‑grooved seamless copper tubes, louvered/corrugated aluminium fins. Optional epoxy coating, blue hydrophilic fins for coastal, dusty or corrosive outdoor sites.
Full‑range OEM custom: 1:1 replication from customer drawings or physical samples. Adjustable V‑angle, tube circuit layout, number of rows, fin pitch, suction & liquid port position and size to match chiller cooling capacity.
Strict quality testing: High‑pressure air tightness test, optional helium mass‑spectrometer leak detection, suitable for R134a, R410A, R404A and other common refrigerants.
Outdoor‑oriented design: Optimized coil drainage performance; compatible with top‑mounted axial fan assembly for standard air‑cooled chiller cabinet integration.
Applications
Air‑cooled industrial process chillers
Laser chillers, injection molding chillers
Commercial packaged air‑cooled chiller units
Rooftop‑mounted chiller equipment
Process cooling for factory & workshop cooling projects
We support prototype sample orders and mass‑volume OEM production. Whether you need replacement V‑type condenser coils for old chillers or newly‑developed custom coils for new‑project chillers, we deliver reliable customized heat‑exchange solutions.
