The No-Frost Aluminum Tube-Fin Evaporator is a high-efficiency air-cooling heat exchanger designed for modern refrigeration systems that require stable temperature control, uniform air distribution, and minimal frost formation. By combining lightweight aluminum tube-fin construction with optimized refrigerant circuitry, this evaporator delivers reliable cooling performance while reducing defrost frequency and overall energy consumption.
This type of evaporator is widely used in refrigerators, freezers, display cabinets, cold rooms, beverage coolers, and light commercial refrigeration equipment, where no-frost operation is essential for product quality and operational efficiency.
Construction and Design Features
Aluminum Tube-Fin Structure
The evaporator utilizes aluminum tubes mechanically bonded with high-density aluminum fins. This all-aluminum design ensures excellent thermal conductivity, low weight, and strong corrosion resistance compared with traditional copper-steel combinations.
Optimized Fin Geometry
Closely spaced fins with precision stamping increase heat transfer surface area while promoting uniform airflow. The fin profile is designed to reduce moisture accumulation, helping suppress frost growth during normal operating conditions.
No-Frost Refrigerant Circuit Design
The refrigerant path is carefully engineered to maintain even temperature distribution across the entire coil surface. This minimizes localized cold spots where ice typically forms, supporting longer no-frost operating cycles.
Integrated Refrigerant Components

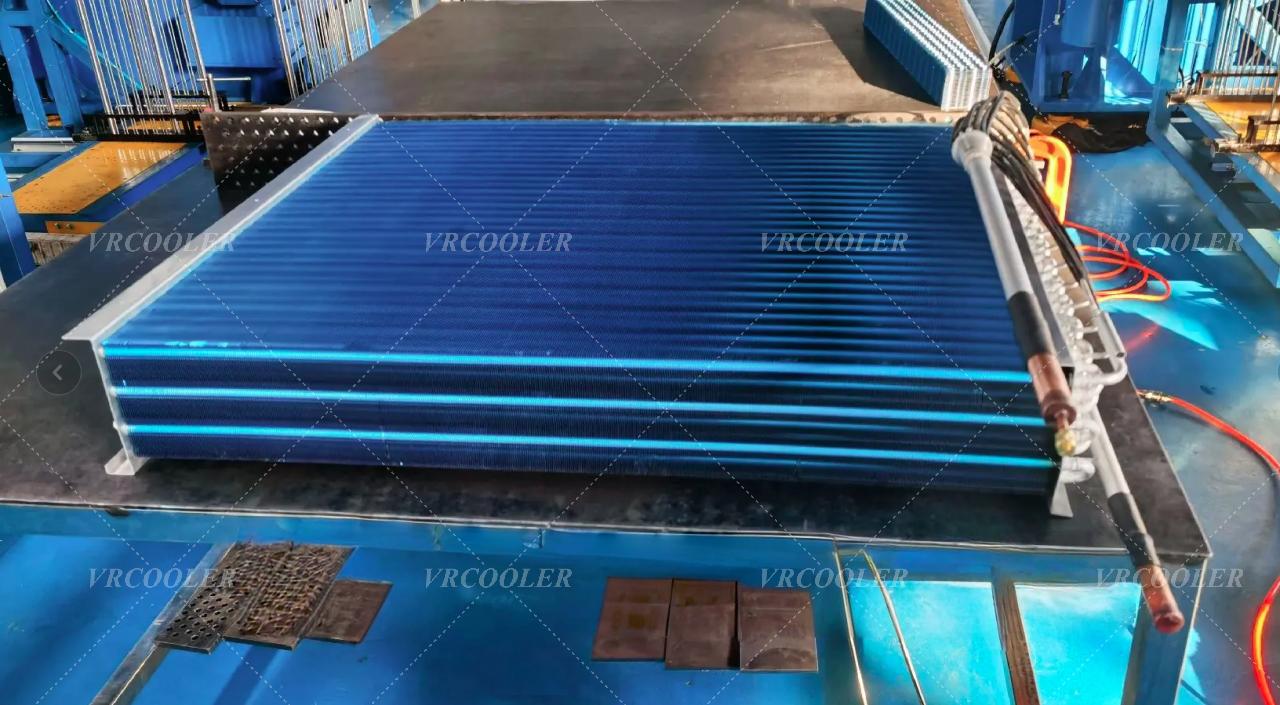

As shown in the configuration, the evaporator can be supplied with capillary tubes, suction lines, and accumulator components pre-assembled, simplifying installation and ensuring compatibility with common refrigeration systems.
Key Advantages
True No-Frost Performance
Reduces ice buildup on fins, maintaining consistent airflow and cooling capacity without frequent defrost cycles.
High Heat Transfer Efficiency
Aluminum tube-fin construction provides rapid heat exchange and fast pull-down performance.
Energy Savings
Less frost means lower fan power consumption and reduced defrost heater usage, improving overall system efficiency.
Lightweight and Compact
Aluminum construction reduces system weight, making it ideal for space-constrained appliances and equipment.
Corrosion Resistance
Suitable for humid environments commonly found in refrigeration applications.
Customizable Design
Tube diameter, fin spacing, coil dimensions, and refrigerant compatibility can be tailored to specific OEM requirements.
Typical Applications
Household refrigerators and freezers
No-frost upright and chest freezers
Beverage and wine coolers
Supermarket display cabinets
Medical and laboratory refrigeration units
Light commercial cold storage systems
Refrigerant Compatibility
The no-frost aluminum tube-fin evaporator can be designed for use with common refrigerants, including:
R134a
R600a
R404A / R507
R407C
Other low-GWP refrigerants upon request
Why Choose a No-Frost Aluminum Tube-Fin Evaporator?
In modern refrigeration, end users demand stable temperatures, low maintenance, and reduced energy costs. Traditional evaporators with frequent frost buildup lead to airflow blockage, uneven cooling, and higher operating expenses. A no-frost aluminum tube-fin evaporator addresses these issues directly by maintaining clean fin surfaces, consistent heat transfer, and reliable long-term operation.
