Copper tube refrigerant R410A condenser is a vital component in a refrigeration or air - conditioning system. Its primary function is to convert the high - pressure, high - temperature refrigerant vapor (R410A) into a liquid state by removing heat. R410A is a popular hydrofluorocarbon (HFC) refrigerant known for its high - efficiency heat - transfer properties and is widely used in modern air - conditioning and refrigeration equipment.

The use of copper tubes in the condenser is due to copper's excellent thermal conductivity. Copper has a thermal conductivity of approximately 385 - 401W/(m·K), which allows for efficient heat transfer from the refrigerant to the surrounding environment.

Structure and Components

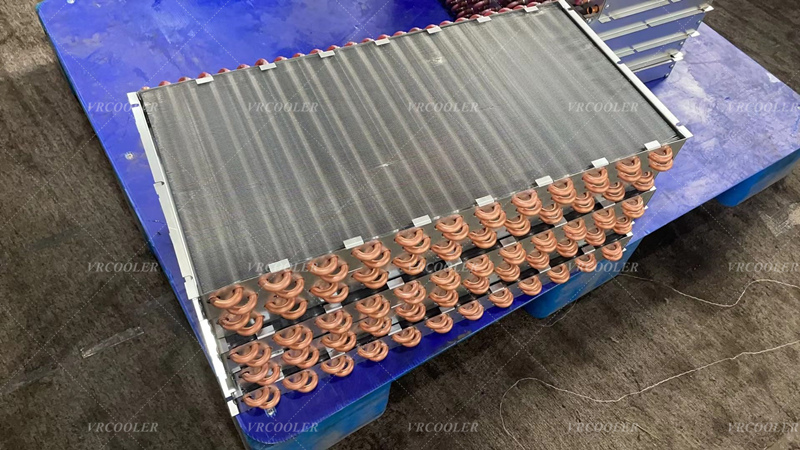

Copper Tubes: The condenser consists of a network of copper tubes through which the refrigerant R410A flows. These tubes are usually arranged in a serpentine or parallel configuration to increase the contact area and residence time of the refrigerant, allowing for more effective heat dissipation. The diameter of the copper tubes can vary depending on the capacity and design requirements of the condenser, typically ranging from a few millimeters to around 10 - 15mm.

Fins: In many condensers, fins are attached to the outer surface of the copper tubes. These fins are usually made of aluminum due to its lightweight and good heat - dissipation properties. The fins significantly increase the surface area available for heat transfer. They are designed to be thin and closely spaced to maximize the contact area with the air or cooling medium. The fin - to - tube connection is often achieved through mechanical expansion or brazing to ensure good thermal contact.

Headers and Manifolds: Headers and manifolds are used to distribute and collect the refrigerant as it enters and exits the copper tubes. They ensure that the refrigerant flow is uniform throughout the condenser, preventing any hot spots or areas of inefficient heat transfer. The headers are usually made of copper and are carefully designed to minimize pressure losses and ensure smooth refrigerant flow.

Working Principle

As the high - pressure, high - temperature refrigerant vapor (R410A) enters the copper tube condenser, it begins to release heat to the surrounding environment. The heat transfer occurs through conduction from the refrigerant to the copper tube walls and then through convection to the fins and the surrounding air or cooling medium.

The temperature of the refrigerant gradually decreases as it flows through the copper tubes. When the refrigerant reaches its saturation temperature corresponding to the pressure in the condenser, it starts to condense into a liquid state. The phase change from vapor to liquid releases a significant amount of latent heat, which is also dissipated to the surroundings. The condensed refrigerant then exits the condenser as a high - pressure liquid, ready to be further processed in the refrigeration cycle, such as passing through an expansion valve.
