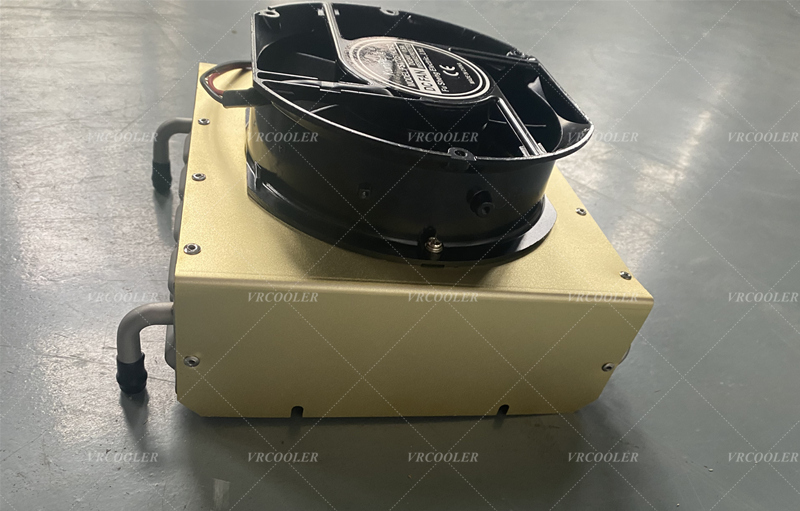

Cooling Coil with Fan for Steam Cooling in Water Distiller

Cooling Coil with Fan for Steam Cooling in Water Distiller

A cooling coil with a fan in a water distiller is a crucial component for the condensation process. Its main function is to cool the steam produced during the distillation process back into liquid water. As steam enters the cooling coil, the heat is removed, and the steam undergoes a phase change to become distilled water.

The fan plays an important role in enhancing the cooling efficiency. It helps to circulate the air around the cooling coil, which in turn facilitates the transfer of heat from the coil to the surrounding environment.

The cooling coil is usually made of a material with good heat - conducting properties such as copper or stainless steel. Copper is a popular choice because it has excellent thermal conductivity, allowing for efficient heat transfer from the steam inside the coil to the outer surface.

When the steam from the distillation chamber enters the cooling coil, it is at a high temperature and in a gaseous state. The heat from the steam is conducted through the walls of the coil to the outer surface. The fan then blows air over the coil, and the heat is transferred from the coil to the air. As the steam loses heat, it condenses into liquid water droplets. These droplets then collect at the bottom of the cooling coil and are drained out as distilled water.

The temperature difference between the steam inside the coil and the air outside is a key factor in the cooling process. A larger temperature difference results in a faster heat transfer rate. The fan speed can also be adjusted to control the rate of air circulation and, consequently, the cooling rate of the steam.

Maintenance and Troubleshooting

Regular maintenance of the cooling coil and fan is essential for the proper functioning of the water distiller. The coil should be checked for any signs of corrosion or blockages. Corrosion can reduce the heat - conducting ability of the coil, and blockages can impede the flow of steam and the condensation process.

The fan blades should be cleaned regularly to ensure efficient air circulation. If the fan is not working properly, it can lead to insufficient cooling of the steam and a decrease in the production of distilled water. Common fan problems include motor failure, damaged blades, or a faulty electrical connection. These issues can be diagnosed by checking for unusual noises, reduced air flow, or a complete lack of fan operation.
