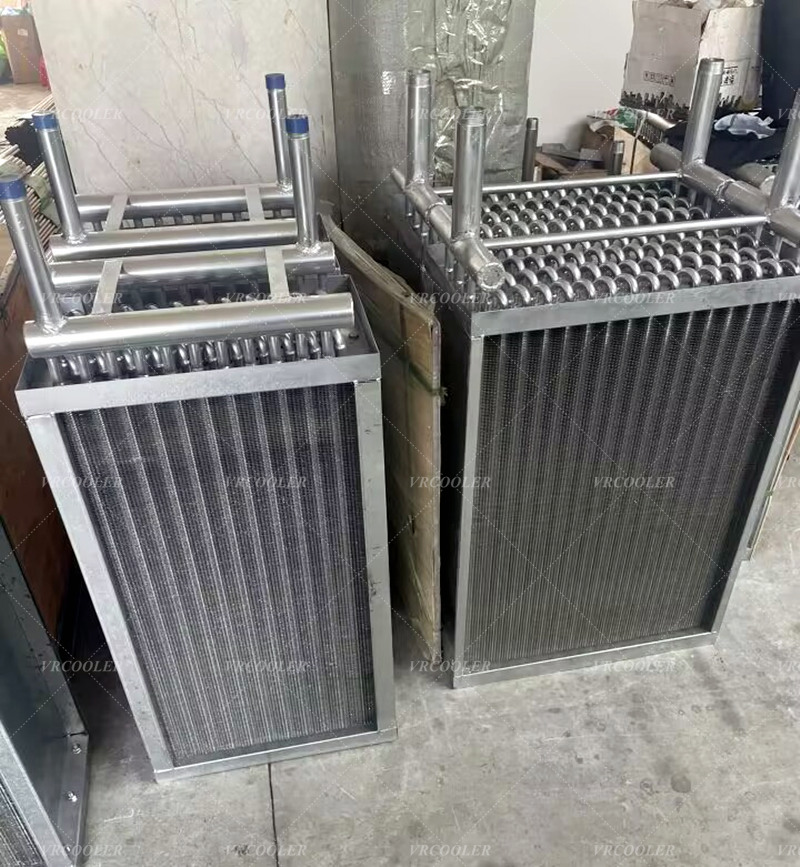

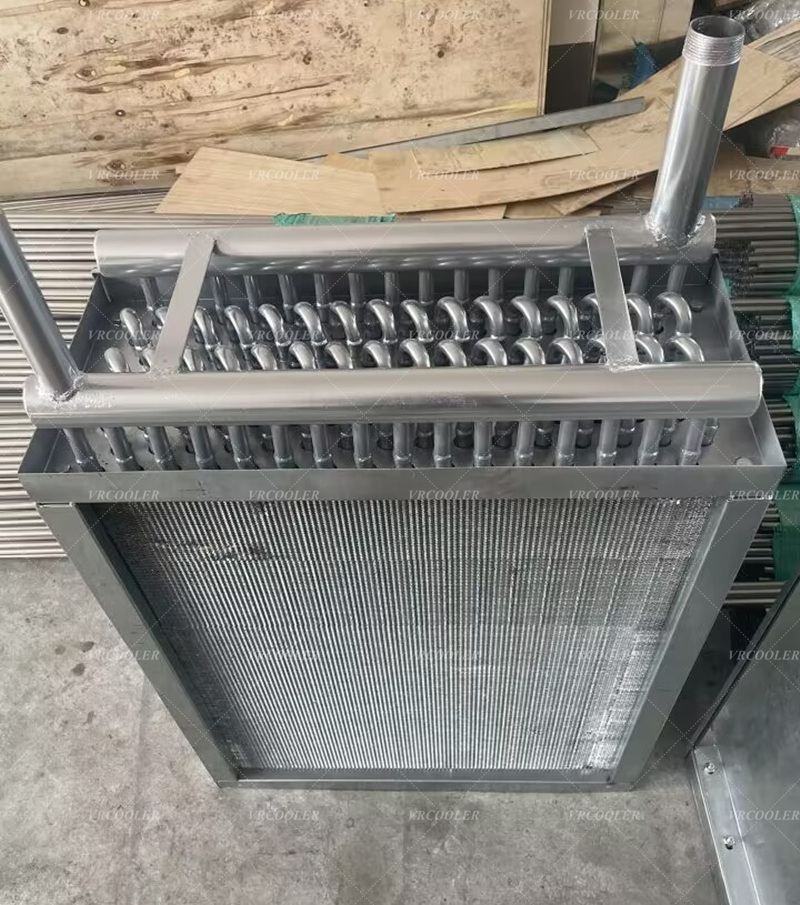

Condenser and Evaporator Coils for Industrial Washing Machine

Condenser and Evaporator Coils for Industrial Washing Machine

Condenser and evaporator coils are critical components in the refrigeration systems used in industrial washing machines, particularly those that use water or steam for cleaning.

Condenser Coils: These coils are responsible for dissipating heat from the refrigerant, allowing it to transition from a gas to a liquid.

Evaporator Coils: These coils allow the refrigerant to absorb heat from the washing machine's interior, enabling it to transition from a liquid back to a gas.

Functions

Condenser Coils:

Heat Dissipation: The main function is to remove heat from the refrigerant, which has absorbed heat from the washing machine. This process cools the refrigerant, causing it to condense into a liquid.

Cooling Medium: Often, air or water is used to cool the refrigerant in the condenser. The coils are designed to maximize heat transfer, often utilizing fins to increase surface area.

Evaporator Coils:

Heat Absorption: In contrast, evaporator coils absorb heat from the washing machine’s environment, allowing the refrigerant to evaporate and cool the air or surface.

Circulation: The cold refrigerant in the evaporator coils circulates through the washing machine, enabling effective temperature regulation during the wash cycle.

Design Considerations

Material: Both coils are commonly made from copper or aluminum due to their excellent thermal conductivity. Aluminum is often chosen for its lightweight and corrosion resistance.

Finned Design: Fins are typically added to both types of coils to increase the surface area for heat exchange, enhancing efficiency.

Size and Configuration: The size and configuration depend on the specific requirements of the industrial washing machine, including capacity, type of refrigerant used, and cooling requirements.

Applications in Industrial Washing Machines

Temperature Control: The coils help maintain optimal temperatures for washing and drying processes, ensuring effective cleaning without damaging fabrics.

Energy Efficiency: Properly designed coils contribute to the overall energy efficiency of the washing machine, reducing operational costs.

Steam Generation: In machines that utilize steam cleaning, the evaporator may also be involved in generating steam by absorbing heat from the water.
