Condenser Or Evaporator in Bean Cooling Equipment

Condenser Or Evaporator in Bean Cooling Equipment

In bean cooling equipment, both condensers and evaporators play crucial roles in the refrigeration cycle that enables the cooling process.

1. Evaporator

Function: The evaporator is the component where the cooling effect is primarily produced. In the context of bean - cooling equipment, the refrigerant in the evaporator absorbs heat from the beans. As the refrigerant enters the evaporator, it is at a low - pressure, low - temperature state. The heat from the warm beans causes the refrigerant to boil and evaporate. This phase change from liquid to vapor is endothermic, meaning it absorbs heat. As a result, the temperature of the beans decreases, achieving the cooling objective.

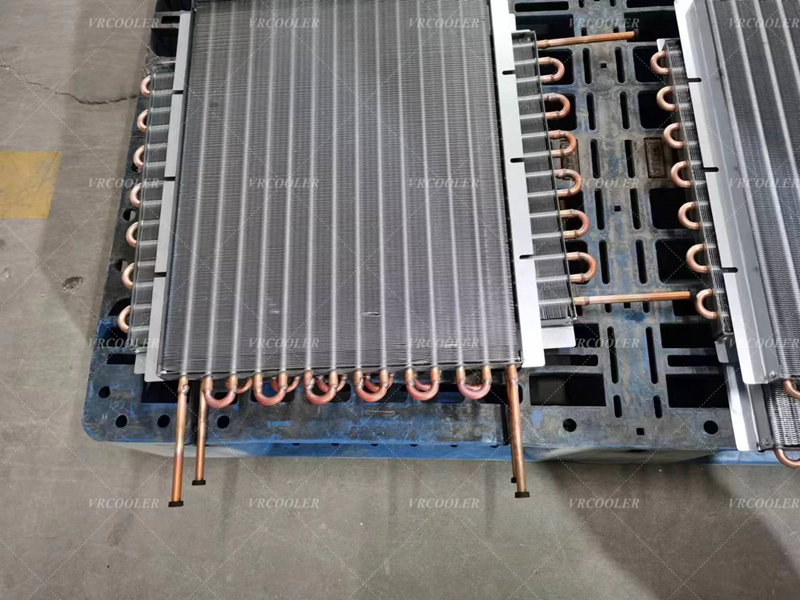

Construction and Design: Evaporators used in bean - cooling equipment can come in different forms. For example, a finned - tube evaporator is a common design. The tubes carry the refrigerant, and the fins increase the surface area for heat transfer. This enhanced surface area allows for more efficient heat absorption from the beans. The fins can be made of materials with good thermal conductivity such as aluminum. The evaporator is usually placed in a way that allows for good air circulation around it, ensuring that the heat from the beans can be effectively transferred to the refrigerant.

Working Fluid and Temperature: The refrigerant used in the evaporator, such as R - 134a or other suitable refrigerants, has a low boiling point. For example, the boiling point of R - 134a is around - 26.1°C (- 15.0°F) at atmospheric pressure. In the evaporator, the pressure is adjusted so that the refrigerant can boil at a temperature lower than the temperature of the beans to be cooled. This temperature difference drives the heat transfer process.

2. Condenser

Function: The condenser is responsible for rejecting the heat that the refrigerant has absorbed from the beans in the evaporator. After the refrigerant has evaporated in the evaporator and absorbed heat, it is in a vapor state and at a relatively low - pressure. The compressor then pumps the refrigerant vapor to the condenser, where it is at a higher pressure. In the condenser, the refrigerant releases the heat it has absorbed to the surrounding environment. The refrigerant vapor condenses back into a liquid state during this process. In bean - cooling equipment, the condenser usually dissipates heat to the ambient air.

Construction and Design: Condensers can be air - cooled or water - cooled. In air - cooled condensers, which are more common in many bean - cooling applications, they usually consist of a coil of tubing through which the refrigerant flows. Fins are attached to the tubing to increase the surface area for heat transfer to the air. The design aims to maximize the contact area between the refrigerant - carrying tubes and the air to ensure efficient heat rejection. The condenser is often located in an area where there is good air circulation, such as on the outside of the cooling equipment or in a well - ventilated compartment.

Heat Rejection and Temperature: The temperature of the refrigerant in the condenser is higher than that in the evaporator. The temperature at which the refrigerant condenses depends on the pressure in the condenser and the properties of the refrigerant. For example, for a typical refrigerant like R - 134a, in a condenser operating at a certain pressure, the condensation temperature might be around 30 - 50°C (86 - 122°F). The heat is then dissipated to the surrounding air, and the condensed refrigerant is then ready to be recycled back to the evaporator through an expansion valve or other metering device to complete the refrigeration cycle.
