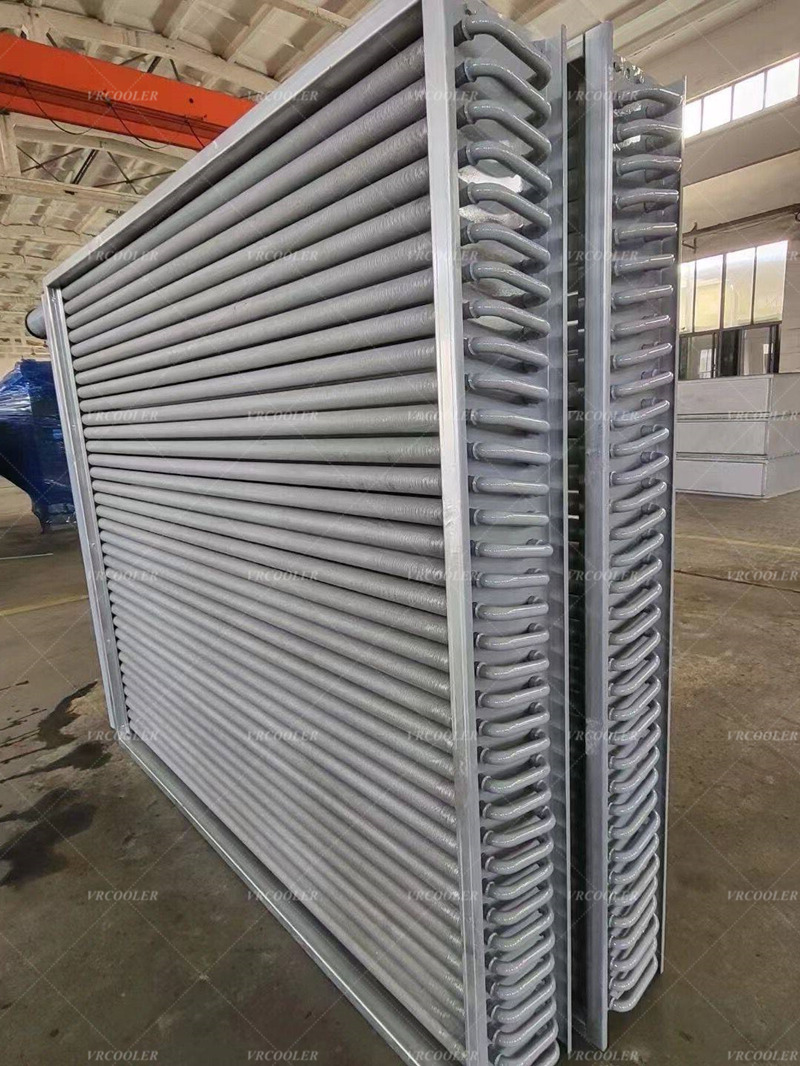

Coating Machine Finned Tube Drying Heat Exchanger

Coating Machine Finned Tube Drying Heat Exchanger

In a coating machine drying scenario, the drying medium (e.g. hot air) and the coated material to be dried need to exchange heat quickly, and the finned tube bundle can dramatically increase the total heat exchange area in the same space by extending the finned structure on the surface of the base tube (usually a metal tube, such as copper tube or steel tube).

Coater finned tube drying heat exchanger adopts highly optimized finned tube bundle, which can effectively increase the heat exchange area and improve the heat exchange efficiency.

Enhanced Convection Heat Transfer:

When coating machine drying, the hot medium (e.g. hot water, steam or thermal oil) flows inside the tube, while the fins are in contact with the air to be dried outside the tube. The presence of fins not only enlarges the contact area, but also guides the air flow path so that the airflow passes over the surface of the fins more uniformly, reducing the “dead zone” (stagnant area of the airflow) and enhancing the effect of convective heat transfer.

Adaptation to Coating Process Demands:

Coated materials (e.g., film, paper) are sensitive to drying temperature and air velocity. The optimized finned tube bundle enables gentler, more uniform heating, avoiding localized overheating that can lead to cracking or discoloration of the coating. At the same time, the efficient heat transfer can shorten the drying time and increase the production speed of the coating machine.

Energy saving:

Under the same drying effect, the finned tube bundle can reduce the consumption of heat medium (e.g., reduce the amount of steam) or reduce the overall volume of the heat exchanger to save the installation space of the equipment, which is in line with the energy-saving requirements of the coating production line.
