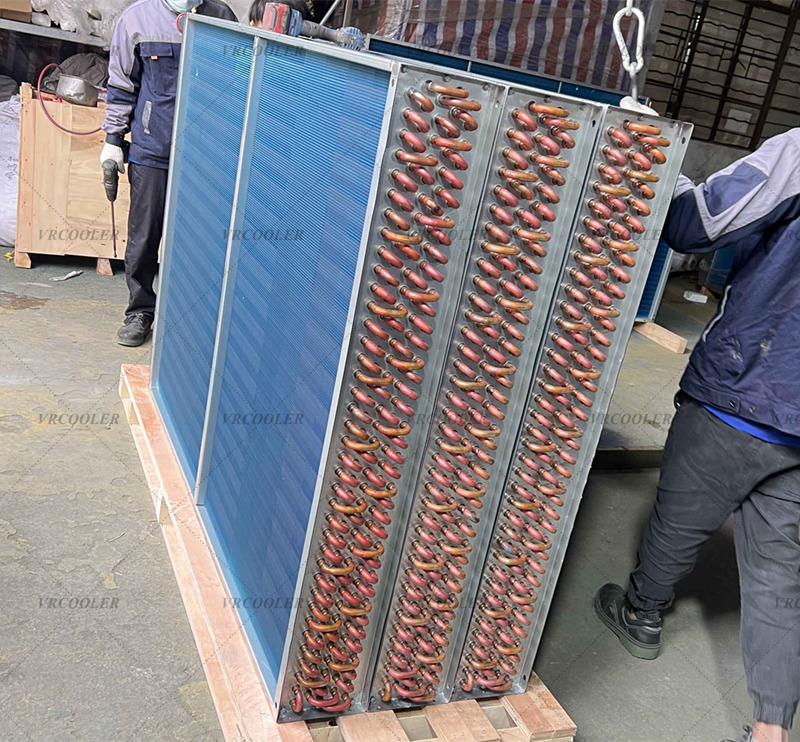

Carrier Chiller Replacement Condenser Coil Chiller Model 30XA260
A replacement condenser coil is a direct-fit spare heat exchanger core for air-cooled / water-cooled industrial & commercial chillers (screw, scroll, reciprocating chillers). It replaces original damaged, leaking, fouled or inefficient factory coils without full chiller replacement.
High-pressure superheated refrigerant vapor from compressor flows inside coil tubes; cooling medium (ambient air for air-cooled, cooling tower water for water-cooled) passes over outside fin/tube surface. Heat transfers out of refrigerant → vapor condenses into liquid refrigerant returning to expansion device.
Failed coil causes high head pressure, overloading compressors, high power consumption, frequent shutdown.
Air-cooled chiller condenser coil (Fin & Tube type, most common replacement)
Construction: Seamless inner copper tubes + corrugated hydrophilic aluminum fins mechanically expanded together
Medium: Outdoor forced ambient air by condenser fans across fin surface
Common failure causes for replacement: fin corrosion, tube pinhole leak, heavy dust/fouling reducing heat rejection
Typical material upgrade option: coated aluminum fins (epoxy / blue fin) for coastal salt air, chemical factory corrosive environment.
Installation Points for Replacement Coil
Recover full refrigerant charge before removing old coil
Clean chiller internal piping, remove residual oil and sludge
Position new coil to original mounting footprint; align fan position (air-cooled) / shell piping (water-cooled)
Brazing joints with nitrogen purge to avoid internal oxide scale inside copper tubes
Pressure hold leak test (dry nitrogen test before vacuum & refrigerant charging)
Test run chiller to confirm normal head pressure and stable running current
