Blast Freezer Ammonia Evaporator System

Blast Freezer Ammonia Evaporator System

A blast freezer ammonia evaporator system is an industrial refrigeration system that utilizes ammonia as the refrigerant in the evaporator. Ammonia (NH3) is a popular choice for large-scale refrigeration applications due to its excellent thermodynamic properties and low environmental impact. It is widely used in various industries, including food processing, cold storage, and ice production.

Key components and features of a blast freezer ammonia evaporator system include:

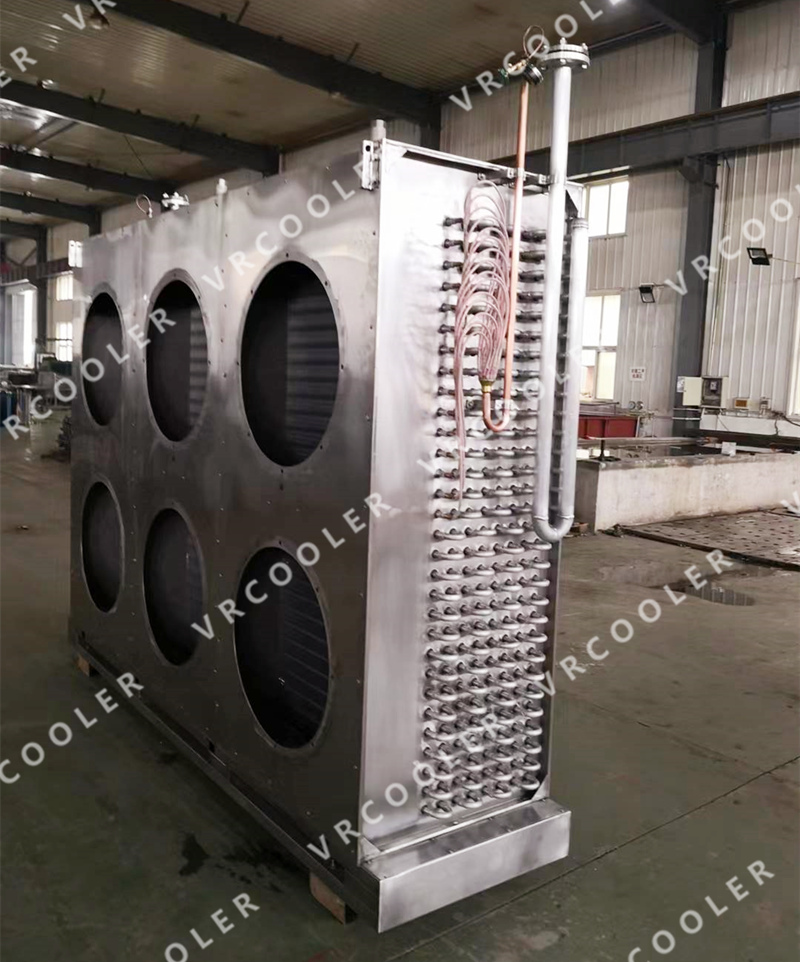

1. Evaporator: The evaporator is a heat exchanger where the ammonia absorbs heat from the products or air inside the blast freezer. As the ammonia evaporates, it changes from a liquid to a gas, absorbing heat and cooling the surrounding environment.

2. Compressor: The compressor is responsible for compressing the gaseous ammonia, raising its pressure and temperature. This high-pressure gas is then sent to the condenser for further processing.

3. Condenser: In the condenser, the high-pressure ammonia gas releases heat to the ambient air or a cooling medium, condensing back into a liquid state. This process releases the heat collected from the evaporator and prepares the ammonia to return to the evaporator for another cooling cycle.

4. Expansion Valve: The expansion valve is responsible for reducing the pressure of the ammonia, allowing it to expand rapidly and cool down as it enters the evaporator. This pressure drop causes the refrigerant to absorb heat and initiate the cooling process in the evaporator.

5. Control System: The blast freezer ammonia evaporator system is equipped with a control system that manages the operation of the refrigeration components. The control system monitors temperature and pressure conditions, adjusting the operation of the compressor and other components to maintain precise temperature control inside the blast freezer.

Benefits of using ammonia as a refrigerant in blast freezer systems include:

- Excellent thermodynamic properties: Ammonia has superior heat transfer properties compared to some other refrigerants, making it efficient in large-scale refrigeration applications.

- Low environmental impact: Ammonia is a natural refrigerant with zero ozone depletion potential (ODP) and a very low global warming potential (GWP). It does not contribute significantly to greenhouse gas emissions.

- Cost-effectiveness: Ammonia is generally more cost-effective than synthetic refrigerants, making it a preferred choice in industrial refrigeration systems.
