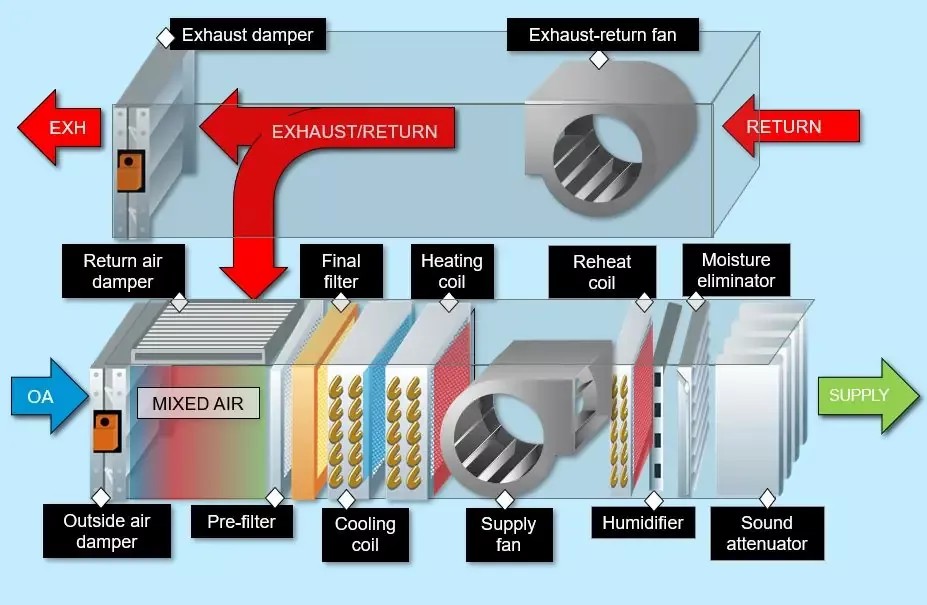

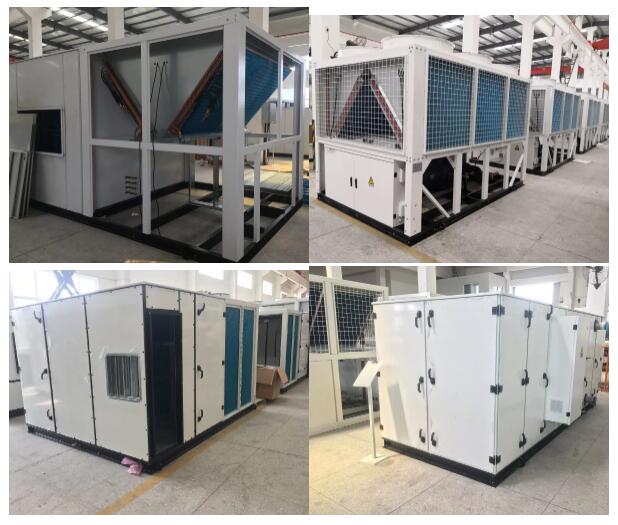

An air handling unit is a factory-manufactured package composed of one or more fans and other necessary equipment to perform one or more cycle, cleaning, heating, COO functions.
Structure
Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric agents.
Direct expansion coils with condensate drain tray.
Hermetic compressor
High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampers
Ripple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noise
Centrifugal fan
Forward curve centrifugal fans for air treatment section and axial fans for condensation section. Front, side and underside air discharge of the treatment unit. High external pressure, long air supply distance
Electric panel
Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components.
Easy operation line controller
Cooling/Heating/Auto. Error indication. Timing on/off.
