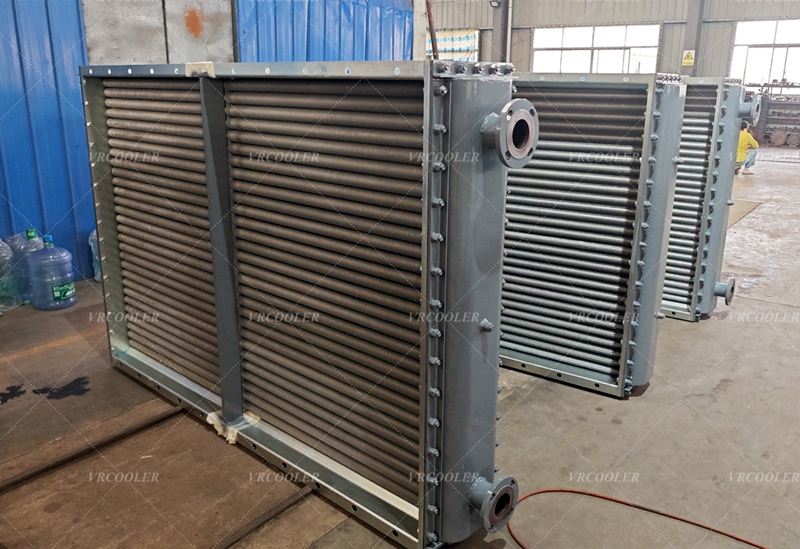

Air-Cooled Exchanger for Natural Gas Compressor Transmission Pipelines

In natural gas transmission systems, gas temperature often rises significantly after compression. This is why an air-cooled exchanger is commonly installed downstream of the compressor. Its role is to remove excess heat from the compressed gas before the gas enters the next stage of transportation, treatment, or storage. For long-distance pipeline service, this cooling step is important for system safety, equipment reliability, and stable operating performance.

A natural gas compressor increases gas pressure to keep the gas moving through the pipeline network. During compression, however, the gas also becomes hotter. If the discharge temperature remains too high, it can affect downstream valves, seals, piping, and metering equipment. It may also reduce gas density and create less favorable operating conditions for the transmission line. An air-cooled exchanger helps control this temperature by transferring heat from the gas inside the tubes to ambient air flowing across the external surface.

This type of cooler is widely used because it does not depend on a continuous cooling water supply. In many gas transmission stations, water is limited, expensive, or undesirable due to scaling, corrosion, freezing risk, or maintenance concerns. An extended-surface air cooler solves this problem by using ambient air as the cooling medium. Fans force air across the coil bundle, carrying away heat and lowering the gas outlet temperature to the required level.

For natural gas compressor pipeline duty, the cooler must be designed for high reliability and continuous operation. The equipment usually handles pressurized gas, varying ambient conditions, and round-the-clock service. Key design factors include gas flow rate, inlet and outlet temperature, operating pressure, allowable pressure drop, ambient air temperature, and site elevation. Fan arrangement, tube material, fin geometry, and structural strength must all be matched to the actual station conditions.

One major advantage of an air-cooled unit in gas pipeline service is reduced utility dependence. Since no cooling tower or large water circuit is needed, the installation can be simpler and easier to maintain. This is especially useful in remote compressor stations, desert locations, and cold regions where water treatment and water management add complexity. A properly selected gas cooler can deliver stable performance with relatively low operating attention.

Another important benefit is temperature control after compression. Lowering the gas temperature after the compressor helps protect downstream piping and process equipment. It also improves operating efficiency in later stages of gas handling. In multistage compression systems, interstage and afterstage cooling are essential for keeping the compression process within safe and efficient limits.

Material selection is also important. Depending on gas composition and environmental conditions, the cooler may require carbon steel, stainless steel, or other compatible materials for tubes, headers, and casing. In coastal or corrosive outdoor environments, protective coatings may be applied to improve service life. Structural design must also consider wind load, vibration, thermal expansion, and fan motor reliability.

Typical applications include:

• natural gas pipeline compressor stations

• booster compressor units

• gas gathering systems

• gas treatment facilities

• transmission and distribution pressure stations

• fuel gas compression packages

A well-designed pipeline gas air cooler offers dependable heat rejection, compact installation, and low water consumption. For natural gas transmission projects, it is a practical solution for managing compressor discharge temperature and supporting long-term pipeline reliability.
