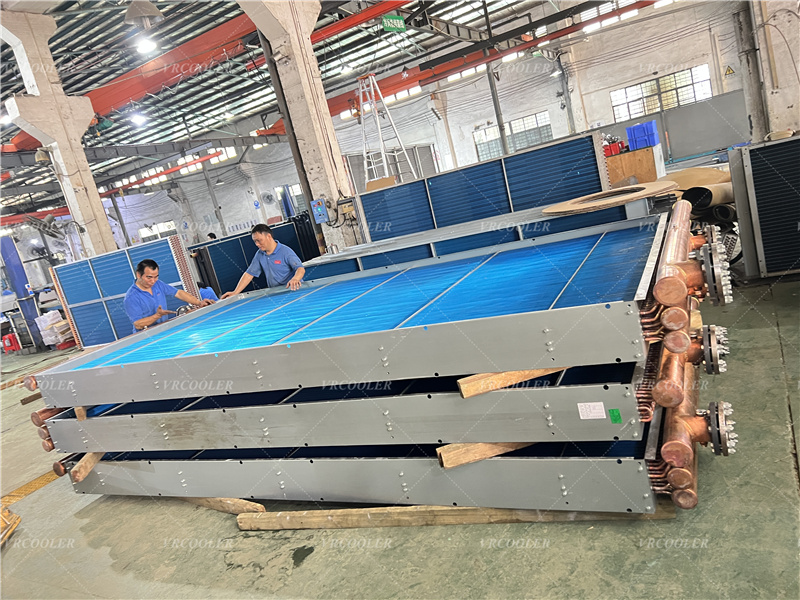

Air Aluminum Fin Heat Exchanger

Air Aluminum Fin Heat Exchanger

An air aluminum fin heat exchanger is a highly effective solution for transferring heat between fluids. Its efficiency, lightweight design, and resistance to corrosion make it a popular choice in various applications, from HVAC systems to industrial processes. Proper maintenance and design considerations can help maximize its performance and lifespan.

A heat exchanger that uses aluminum fins to improve heat transfer efficiency between two fluids—typically, one fluid is air, and the other is a refrigerant or water.

Material: Aluminum is favored due to its excellent thermal conductivity, lightweight nature, and resistance to corrosion.

How It Works

Heat Transfer Process:

The heat exchanger consists of a series of tubes with aluminum fins attached.

One fluid (e.g., refrigerant) flows through the tubes while another fluid (e.g., air) flows over the fins.

Heat is transferred from the hotter fluid to the cooler fluid through the walls of the tubes.

Fins:

The aluminum fins are designed to maximize surface area.

They conduct heat away from the tubes and into the air, enhancing the overall heat transfer efficiency.

Air Flow:

Fans or blowers may be used to move air over the fins, improving the heat exchange process by increasing the velocity of the air.

Advantages

High Efficiency: The increased surface area provided by the fins allows for greater heat transfer, making the unit more efficient than non-finned designs.

Lightweight: Aluminum is lighter than many alternative materials, making installation easier and reducing structural load.

Corrosion Resistance: Aluminum is resistant to many environmental factors, enhancing the longevity of the heat exchanger.

Versatility: Suitable for a wide range of applications, including HVAC systems, refrigeration, and industrial processes.

Applications

HVAC Systems: Used in air conditioning units and heat pumps to transfer heat between refrigerant and air.

Industrial Processes: Employed in various manufacturing processes where heat exchange is necessary.

Automotive: Often found in radiators and intercoolers to cool engine fluids.

Refrigeration Systems: Used in chillers and condensers to facilitate heat exchange.
