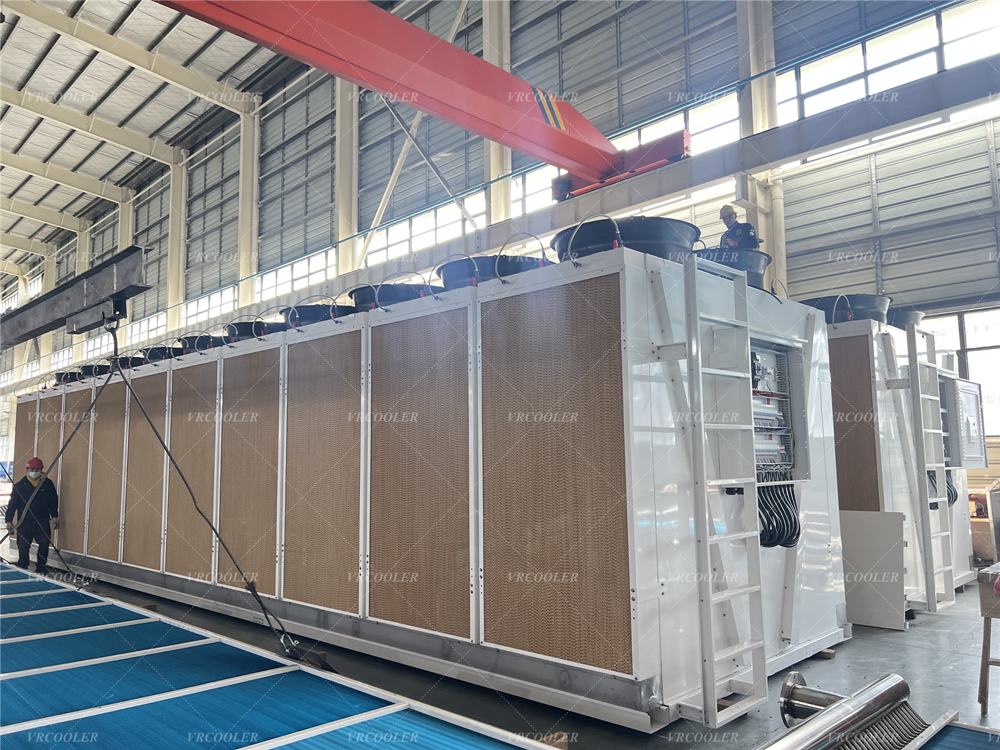

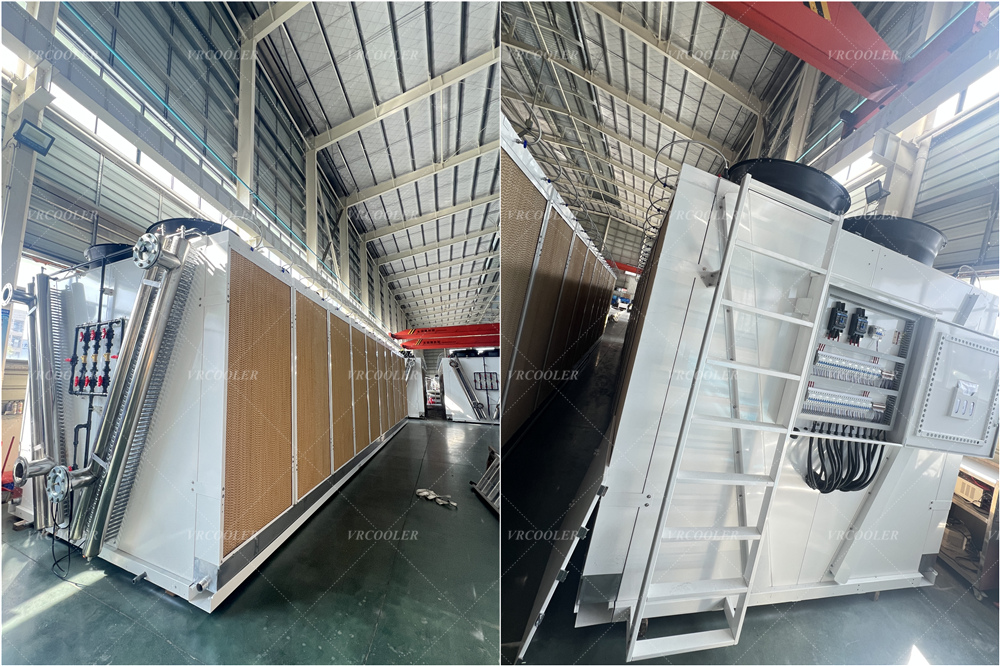

Adiabatic Dry Cooler for High‑Ambient‑Temperature Working Conditions

CST Heat Exchanger has completed batch deliveries of adiabatic dry coolers, targeting projects located in regions with persistently high ambient temperature. As a hybrid cooling unit, this adiabatic dry cooler solves the performance drop issue of conventional dry coolers under extreme hot climate conditions.

The adiabatic dry cooler runs in two working modes. Under normal ambient temperature, it works as a standard dry cooler with fully dry air‑cooled operation and zero water consumption. When outdoor temperature rises to high‑temperature threshold, the adiabatic pre‑cooling pads activate automatically. Incoming hot air is pre‑cooled by water evaporation before passing through fin‑and‑tube coils, greatly lifting heat rejection capacity without large‑volume water consumption like cooling towers.

Equipped with EC variable‑speed fans and intelligent PLC control system, the unit triggers adiabatic function only when needed. It keeps stable process fluid outlet temperature for gas engine CHP plants, immersion data centers, compressor stations and general manufacturing cooling systems, even under continuous high‑ambient‑temperature surroundings.

Coil options include copper‑aluminum, epoxy‑coated or full‑stainless‑steel construction to adapt to dusty, humid or coastal corrosive sites. Heavy‑duty galvanized powder‑coated frame supports 24/7 continuous outdoor running. Compared with cooling towers, adiabatic dry coolers cut water consumption dramatically and reduce routine water‑treatment maintenance workload for plant operators.

CST provides full custom service for adiabatic dry coolers: cooling capacity, footprint layout, fan voltage, noise requirements and anti‑corrosion surface treatments. These adiabatic dry coolers are widely exported to hot‑climate markets across Middle East, Africa, South America and South‑East Asia.

CST keeps supplying reliable adiabatic dry coolers and air‑cooled heat exchangers for global industrial cooling projects.

For datasheets, technical parameters and custom quotation, please contact info@cstheatexchanger.com
