What is Titanium Plate Heat Exchanger

What is Titanium Plate Heat Exchanger

Titanium plate heat exchanger is a device that transfers part of the heat of the hot fluid to the cold fluid, also known as a heat exchanger. Heat exchangers play an important role in chemical, petroleum, power, food and many other industrial productions. In chemical production, heat exchangers can be used as heaters, coolers, condensers, evaporators and reboilers, etc., and are widely used .

Titanium heat exchanger - installation method of titanium plate heat exchanger

1. Installation base

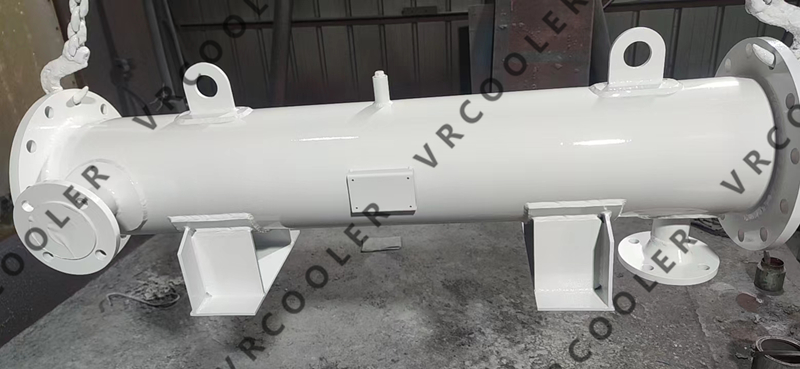

The basis for installing the heat exchanger must be satisfied so that the heat exchanger does not sink, or the pipe transfers excessive deformation to the joint of the heat exchanger. The foundation is generally divided into two types: one is a saddle-shaped foundation made of bricks, and the heat exchanger is directly placed on the saddle-shaped foundation without a saddle support. The heat exchanger and the foundation are not fixed. Move freely. The other is a concrete foundation, and the heat exchanger is firmly connected to the foundation by anchor bolts through a saddle support.

2. Before installation

Before installing the heat exchanger, the inspection and acceptance of the foundation quality should be strictly carried out. The main items are as follows: foundation surface overview; foundation elevation, plane position, shape and main size, and whether the reserved holes meet the actual requirements; the position of the anchor bolts Whether it is correct, whether the thread is in good condition, whether the nuts and washers are complete; whether the foundation surface for placing parallel irons is flat, etc.

3. Installation process

After the foundation is checked and accepted, place the shim iron on the foundation before installing the heat exchanger, and the foundation surface where the shim iron is placed must be leveled so that the two can be in good contact. The thickness of the pad iron can be adjusted so that the heat exchanger can reach the designed level. After the shim is placed, the stability of the heat exchanger on the foundation can be increased, and its weight can be evenly transferred to the foundation through the shim. Horns can be divided into flat horns, inclined horns and open horns. Among them, the inclined horns must be used in pairs. There should be shims on both sides of the anchor bolts, and the installation of shims should not hinder the thermal expansion of the heat exchanger.
