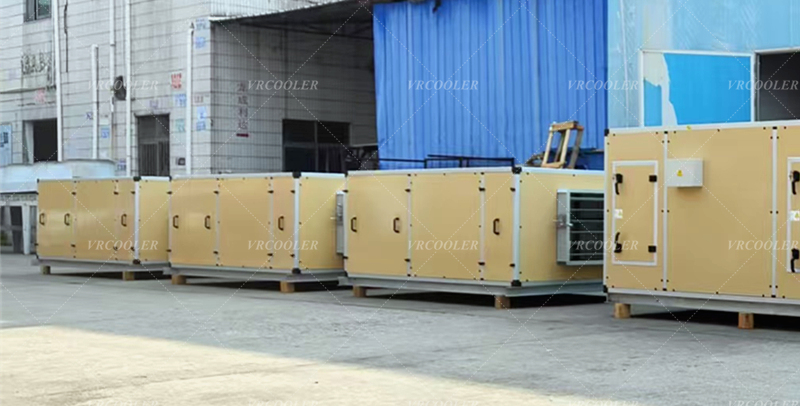

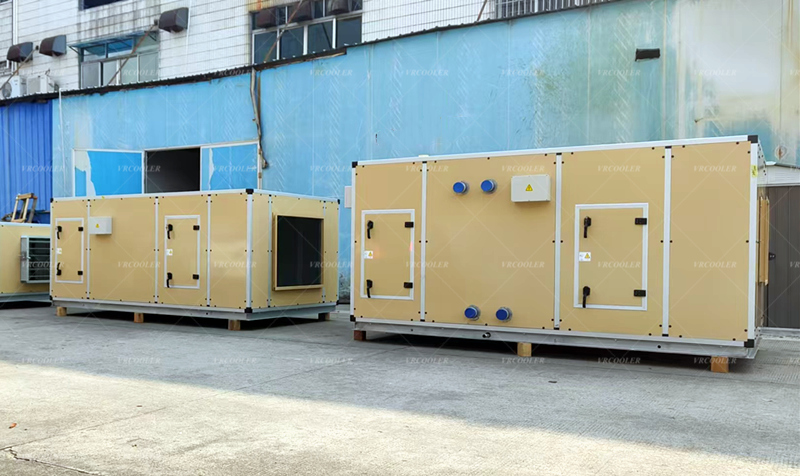

What Is DX in AHU?

In the context of an Air Handling Unit (AHU), DX stands for Direct Expansion. It refers to a type of cooling system where refrigerant flows directly through the evaporator coil (a key component of the AHU) to absorb heat from the air being processed.

How DX Cooling Works

Refrigeration Cycle:

The DX system is part of a vapor-compression refrigeration cycle, which includes four main components:

Compressor: Increases the pressure and temperature of the refrigerant.

Condenser: Releases heat from the refrigerant (often located outside the AHU, e.g., in a rooftop unit or outdoor unit).

Expansion Valve: Reduces the pressure of the refrigerant, causing it to vaporize and cool.

Evaporator Coil (DX Coil): Located inside the AHU. The low-pressure, cold refrigerant flows through this coil, absorbing heat from the air passing over it.

Direct Heat Exchange:

The term "direct expansion" refers to the refrigerant expanding (vaporizing) directly in the evaporator coil inside the AHU, unlike indirect systems (e.g., chilled water systems) where a secondary fluid (like water) transfers heat to a separate chiller.

Components of a DX System in AHU

DX Evaporator Coil:

Made of copper tubes with aluminum fins to maximize heat transfer.

Positioned in the AHU’s air stream, typically after the filter and before the fan.

Refrigerant Lines:

Suction Line: Carries low-pressure vaporized refrigerant from the evaporator back to the compressor.

Liquid Line: Carries high-pressure liquid refrigerant from the condenser to the expansion valve.

Expansion Valve:

Controls the flow of refrigerant into the evaporator coil, ensuring proper vaporization and cooling.

Advantages of DX Systems in AHUs

Simple and Compact Design:

No need for a separate chiller or chilled water loop, reducing equipment size and installation complexity.

Ideal for smaller buildings or systems where space is limited (e.g., commercial offices, retail spaces).

High Efficiency:

Direct heat exchange between refrigerant and air minimizes energy loss compared to indirect systems.

Modern DX systems often use high-efficiency refrigerants (e.g., R32, R410A) and variable-speed compressors for better part-load performance.

Quick Installation and Low Maintenance:

Pre-charged refrigerant circuits reduce on-site piping and charging time.

Fewer moving parts in the AHU (compared to chilled water systems) lower maintenance needs.

Common Uses of DX in AHUs

Commercial Buildings: Offices, hotels, and retail stores with moderate cooling needs.

Residential HVAC: Packaged terminal air conditioners (PTACs) or split systems integrated with AHUs.

Industrial Settings: Small-scale process cooling where simplicity is prioritized.
