What Are The Maintenance Requirements for A Packaged Rooftop Air Conditioner?

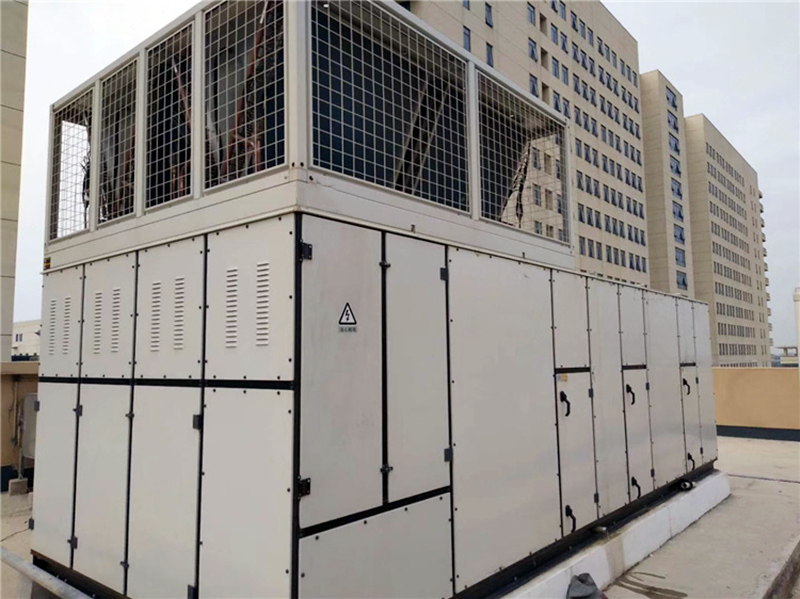

What are the maintenance requirements for a packaged rooftop air conditioner?

Maintaining a packaged rooftop air conditioner (RTU) is critical for ensuring its energy efficiency, long service life, and reliable operation—especially in high-demand environments like shopping malls, where downtime can disrupt comfort and business. Below is a comprehensive breakdown of maintenance requirements, organized by frequency (daily, monthly, quarterly, semi-annually, annually) and key system components.

1. Daily Maintenance (Quick Checks)

Daily inspections focus on real-time performance monitoring to catch immediate issues (e.g., system shutdowns, abnormal noises) before they escalate. These tasks are typically done by on-site facility staff.

2. Monthly Maintenance (Preventive Upkeep)

Monthly tasks target components prone to fast degradation (e.g., filters, coils) and ensure consistent airflow and cooling capacity.

2.1 Air Handling System

Air Filter Replacement/Cleaning:

Clogged filters reduce airflow, forcing the RTU to work harder (increasing energy costs by 5–15%) and straining coils.

Replace disposable filters (common in malls) with new ones of the same MERV rating (MERV 8–12 is typical for commercial spaces to balance dust capture and airflow).

Clean reusable filters (e.g., washable electrostatic filters) with mild detergent and water; dry completely before reinstalling.

Note: Malls with high foot traffic may need filter changes every 2–3 weeks (not monthly).

Return/Supply Air Dampers Check:

Ensure dampers are fully open/closed as per the control schedule (e.g., open during mall hours, partially closed at night). Tighten loose linkage bolts and lubricate hinge pins to prevent sticking.

2.2 Refrigerant System (Basic Checks)

Refrigerant Pressure Gauges:

Monitor suction and discharge pressures (refer to the manufacturer’s specs for the current outdoor temperature). Abnormal pressures (e.g., low suction = refrigerant leak; high discharge = dirty coils) require further investigation.

Refrigerant Lines Inspection:

Check for oil stains on lines (a sign of leaks). Ensure insulation on suction lines is intact (damaged insulation causes cold loss and condensation, leading to corrosion).

3. Quarterly Maintenance (Deep Cleaning & Component Testing)

Quarterly tasks address accumulated dirt (a major cause of RTU inefficiency) and test critical mechanical parts.

3.1 Coil Cleaning

Evaporator Coil (Indoor):

Dust and mold on the evaporator coil block heat transfer, reducing cooling capacity.

Turn off the RTU and disconnect power.

Remove the access panel and use a soft-bristle brush to loosen surface dust.

Spray with a commercial coil cleaner (non-acidic, to avoid damaging aluminum fins) and let it dwell for 10–15 minutes (dissolves dirt and mold).

Rinse gently with low-pressure water (high pressure bends fins, blocking airflow).

Dry the coil completely before restarting.

Condenser Coil (Outdoor):

The condenser coil (exposed on rooftops) collects dirt, leaves, and debris. Clean it using the same method as the evaporator coil, but pay extra attention to removing large debris (e.g., sticks, bird nests) first with gloved hands.

3.2 Fan System Maintenance

Supply/Return Fans:

Inspect fan blades for dirt buildup (clean with a damp cloth) and damage (e.g., cracks, bent edges—replace if damaged).

Check fan motor bearings: Feel for excessive heat (indicates wear) or listen for humming (signals misalignment).

Lubricate sealed bearings with the manufacturer-recommended lubricant (avoid over-lubrication, which attracts dust). For open bearings, replace old grease before adding new grease.

Condenser Fan:

Ensure the fan rotates freely and its motor is secured to the unit (loose mounts cause vibration). Clean fan guards to remove debris (prevents airflow restriction).

3.3 Electrical System Check

Terminal Connections:

Tighten loose electrical connections (e.g., at the compressor, fan motors, control board) to prevent arcing (which damages components and poses fire risks). Use a torque wrench to avoid over-tightening.

Capacitors Test:

Use a multimeter to check the capacitance of start/run capacitors (for compressors and fans). A reading 10% below the rated value means the capacitor is failing and needs replacement (weak capacitors cause motors to overheat and fail).

4. Semi-Annual Maintenance (System Calibration & Safety Checks)

Semi-annual tasks focus on system accuracy and safety compliance—critical for commercial HVAC systems in public spaces like malls.

4.1 Control System Calibration

Thermostats/Temperature Sensors:

Calibrate room thermostats and RTU-mounted temperature sensors (e.g., return air temp, outdoor temp) to ensure they read within ±1°F of a calibrated thermometer. Misaligned sensors cause the RTU to cycle on/off unnecessarily (wasting energy).

Programmable Logic Controller (PLC):

Verify that the RTU’s control schedule matches the mall’s operating hours (e.g., pre-cooling 1 hour before opening, setback to 78°F after closing). Update the schedule if the mall’s hours change (e.g., holiday extended hours).

4.2 Safety Device Testing

High/Low Pressure Switches:

These switches shut down the compressor if refrigerant pressures are unsafe. Test them by simulating a pressure spike/drop (follow manufacturer guidelines) to ensure the system shuts off as intended.

Smoke/Flame Detectors:

RTUs have built-in smoke detectors to detect overheating or electrical fires. Test them by using a test aerosol and confirm the alarm triggers a system shutdown.

Emergency Power Off (EPO) Switch:

Press the EPO switch to ensure the RTU shuts down immediately. Reset it and confirm the unit restarts normally.

5. Annual Maintenance (Comprehensive Inspection & Long-Term Care)

Annual maintenance is best performed by certified HVAC technicians and focuses on components with long-term wear (e.g., compressors, heat exchangers) and system-wide efficiency.

5.1 Refrigerant System Deep Dive

Refrigerant Leak Detection:

Use a halogen leak detector to scan all refrigerant lines, valves, and the compressor (mall RTUs often use R-410A, a high-pressure refrigerant—leaks are both inefficient and environmentally harmful). Repair leaks and recharge refrigerant to the manufacturer’s specified level (never overcharge).

Compressor Inspection:

Check the compressor for oil levels (low oil = wear) and abnormal noise/vibration. Measure the compressor’s electrical current (amps) to ensure it’s within the rated range (high amps = overloading).

5.2 Heat Exchanger Inspection (for Heat Pump RTUs)

If the RTU is a heat pump (used for heating in cold months), inspect the heat exchanger for cracks or corrosion (common in humid rooftop environments). A cracked heat exchanger leaks refrigerant and reduces heating efficiency—replace if damaged.

5.3 Drainage System Maintenance

Condensate Drain Pan & Lines:

Mall RTUs produce large amounts of condensate (from cooling). Clogged drains cause water overflow (damaging the RTU and rooftop).

Remove standing water from the drain pan with a wet vacuum.

Flush the drain line with a mixture of water and vinegar (to dissolve algae/mold) or a commercial drain cleaner.

Install a drain pan float switch (if not already present) to shut off the RTU if the pan overflows.

5.4 Structural & Rooftop Integration Check

Unit Mounting:

Ensure the RTU is securely mounted on its rooftop curb (loose mounts cause vibration and damage the unit). Check for rust on the curb and repair/replace weatherstripping around the unit (prevents water intrusion).

Roof Penetrations:

Inspect the area where the RTU connects to the roof (e.g., ductwork, electrical lines) for roof membrane damage (e.g., cracks, tears). Seal any gaps with roof-grade caulk to prevent leaks (water damage to the mall interior is costly).

5.5 Performance Testing & Documentation

System Efficiency Test:

Measure the RTU’s Seasonal Energy Efficiency Ratio (SEER) or Energy Efficiency Ratio (EER) to compare against its original rating. A drop of 10% or more indicates underlying issues (e.g., dirty coils, failing compressor).

Maintenance Log Update:

Document all annual tasks, including part replacements, refrigerant levels, and test results. This log helps track the RTU’s lifecycle and plan for future replacements (typical RTU lifespan: 15–20 years with proper maintenance).
