Tube Fin Heat Exchanger for Automotive Painting Engineering

Views: 0     Author: Site Editor     Publish Time: 2023-08-17      Origin: Site

Tube Fin Heat Exchanger for Automotive Painting Engineering

It is a type of heat exchanger equipment used for automotive paint drying and heating process. This heat exchanger usually consists of a number of long, thin tubes and fins surrounding the tubes.

In automotive painting projects, the paint shop usually needs to dry or heat the painted automotive parts. The tube and fin heat exchanger provides the required heat energy through heat transfer to cure the sprayed paint quickly or to bring the parts to the required heating temperature.

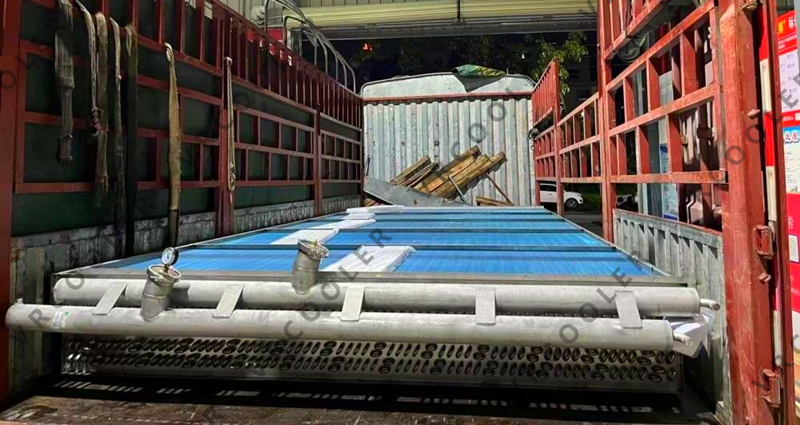

Tube Fin Heat Exchanger for Automotive Painting Engineering

Working Principle:

1. Heat source: Usually, the heat source in a heat exchanger is thermal energy supplied through gas, electricity or steam.

2. Heat transfer: The heat energy provided by the heat source is transferred to the tubes and fins. The presence of fins increases the surface area of the heat exchanger and contributes to more efficient heat transfer.

3. Heat Exchange: Sprayed automotive parts or coatings pass through the duct and fin area near the heat exchanger. Through heat transfer, the part or paint absorbs heat energy from the heat exchanger, allowing it to dry or heat up quickly to the desired temperature.

4. Cooling: A cooling system behind the heat exchanger may be used to control the temperature or to ensure that heat is not transferred to the paint shop.

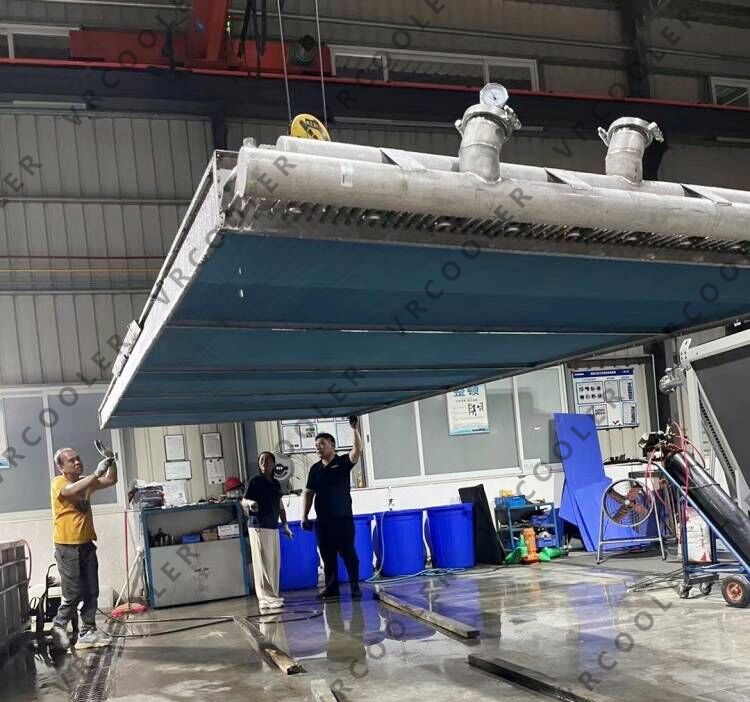

Tube Fin Heat Exchanger for Automotive Painting Engineering (2)


- Tube and fin heat exchangers have a compact design and are suitable for installation in paint shops where space is limited.

- Efficient heat transfer and heat exchange allows the sprayed paint or parts to cure or reach the required temperature quickly.

- It can be customised according to the requirements of the painting project to meet the painting needs of different models and paints.

Overall, tube and fin heat exchangers are an effective heat exchanger equipment in automotive painting projects. They provide efficient heat transfer during the heating and drying process, which helps to improve the efficiency and quality of the painting project. When using these devices, you need to ensure their safe operation and regular maintenance to maintain their performance and longevity.
