A remote radiator for an MTU 20V4000FB biogas engine is not just an accessory. It is a critical part of the generator set cooling architecture, especially in continuous-duty CHP and biogas power plants where thermal stability directly affects output, efficiency, service life, and operating cost.
For high-output biogas engines in the mtu Series 4000 family, the cooling package must handle large heat loads with stable control across varying ambient conditions. Official Series 4000 biogas data for the 20-cylinder L64FB version shows electrical output above 2.5 MWe, with engine cooling heat output around 1,538 kWth and additional low-temperature heat around 128 kWth, depending on configuration. mtu documentation also notes high robustness against derating, allowed low-load operation down to 35%, and up to 84,000 operating hours to major overhaul for the 20V4000L64FB platform.
In practice, that means the remote radiator must be engineered as a matched heat-rejection unit rather than a generic dry cooler. For biogas service, it typically needs to manage separate high-temperature and low-temperature circuits, maintain stable coolant outlet temperatures, and deliver dependable year-round operation in dusty outdoor environments.
Compared with an engine-mounted radiator, a remote radiator gives much more flexibility in plant layout. The heat exchanger can be installed on the roof, beside the engine room, or on a steel support frame outside the building. This helps reduce engine room temperature, simplify airflow management, and lower noise inside the power house.
For a biogas plant, the benefits are especially clear:
stable cooling for continuous baseload operation
easier access for engine maintenance
reduced recirculation of hot air in enclosed generator rooms
better adaptation to high ambient temperature sites
scalable fan and coil design for CHP projects with heat recovery
Because biogas engines often operate around the clock, the cooling system must be designed for reliability first, not only for peak thermal performance.
A remote radiator for this engine family is usually configured in one of these ways:

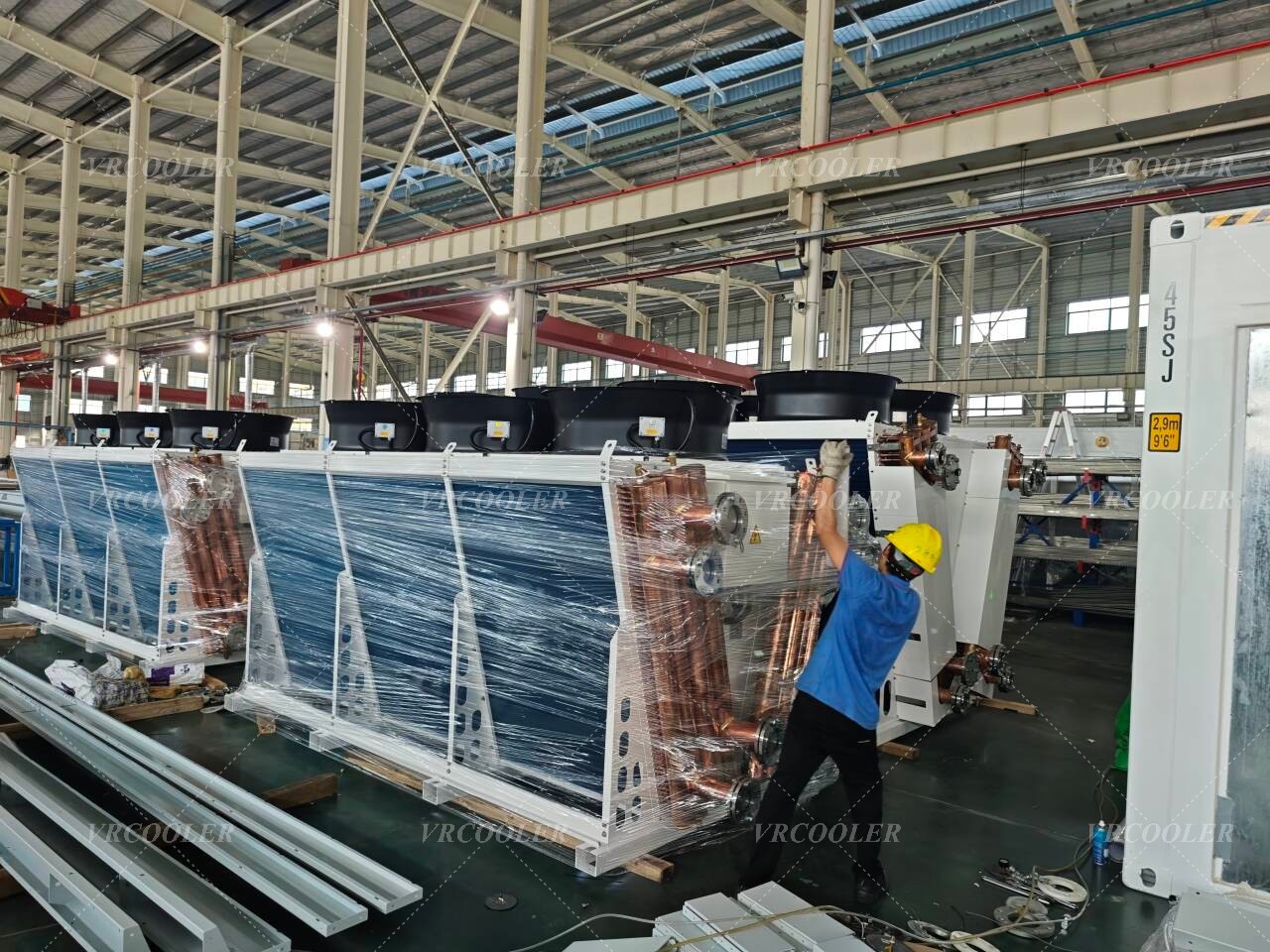

A compact skid or frame with finned tube coil, axial fans, headers, and support structure. This is suitable when the installation footprint is limited and the project needs fast site assembly.
A more advanced layout with separate sections for:
HT circuit for jacket water / engine cooling
LT circuit for charge air cooler, lube oil cooler, or auxiliary low-temperature loop
This is the more common configuration for high-output gas engines because it allows tighter thermal control and improved engine performance.
For modular biogas power stations, the radiator can be supplied as a containerized or skid-mounted outdoor package with pumps, expansion tank, controls, and weather protection.
The published mtu Series 4000 Biogas sheet lists the following for the mtu 20V4000 GS L64FB at 50 Hz:
Electrical output: 2547 kWel
Engine cooling heat output: 1538 kWth
Exhaust heat output: 1243 kWth at 120°C
Low-temperature heat output: 128 kWth at 64°C
Energy input: 5913 kW
Electrical efficiency: 43.1%
Total efficiency: 90.1%
Referenced methane number: ≥130
The same document lists the 20V4000 GS package dimensions at about 6600 × 2000 × 2600 mm for the genset platform, while the engine family uses a 90° V configuration, 20 cylinders, 170 mm bore, 210 mm stroke, and 4.77 L displacement per cylinder.
A 2025 product release for the 20V4000L64FB biogas version further states:
power output of more than 2.5 MWe
around 30% power increase versus the existing S4000L32FB reference
continuous low-load operation down to 35%
spark plug lifetime increased to 5,000 hours
engine lifetime up to 84,000 operating hours before major overhaul
Based on the published heat figures, the radiator package must reject approximately:
HT heat: about 1538 kW
LT heat: about 128 kW
So the radiator system should be designed around a total liquid-side heat rejection duty of roughly 1.66 MW, usually with an engineering margin for ambient temperature, fouling, altitude, fan control range, and seasonal degradation. That combined figure is a practical design interpretation of the published engine-cooling and low-temperature heat values.
In real projects, the final sizing depends on:
site ambient dry bulb temperature
coolant inlet and outlet temperatures
glycol concentration, if used
allowable pressure drop
fan redundancy requirement
sound limit at property boundary
installation height and airflow clearance
Biogas engines need stable thermal management. A split-circuit radiator helps maintain correct jacket water temperature while separately controlling lower-temperature cooling loads.
Biogas plants are often humid and chemically aggressive environments. Coil coating, galvanized steel structure, stainless hardware, and proper water treatment all improve service life.
Many biogas plants are close to agricultural, municipal, or mixed-use areas. Low-noise fans, variable-speed drives, and acoustic treatment are often required.
For continuous power generation, downtime is expensive. A good remote radiator design should allow easy fan motor replacement, coil cleaning, drain access, and sensor maintenance.
mtu notes strong resistance to derating for the 20V4000L64FB platform, but the radiator must still be sized correctly for local ambient temperature, humidity, and altitude to preserve that performance in the field.
A custom remote radiator for the MTU 20V4000FB biogas engine is suitable for:
landfill gas power plants
sewage treatment biogas CHP stations
agricultural biogas plants
food waste anaerobic digestion projects
distributed renewable energy power stations
industrial cogeneration plants using biogas or upgraded gas blends
The MTU 20V4000FB biogas engine platform requires a serious cooling solution. With published 20-cylinder biogas ratings above 2.5 MWe and engine cooling heat in the 1.5 MW class, the remote radiator must be sized and configured as a high-duty engineered package, not a standard catalog cooler. Proper LT/HT separation, robust outdoor construction, variable fan control, and site-specific thermal sizing are the keys to long-term reliability.
For EPC contractors, packagers, and plant operators, a custom remote radiator matched to the MTU 20V4000FB can improve thermal stability, reduce engine room heat, simplify maintenance, and support efficient continuous CHP operation.
