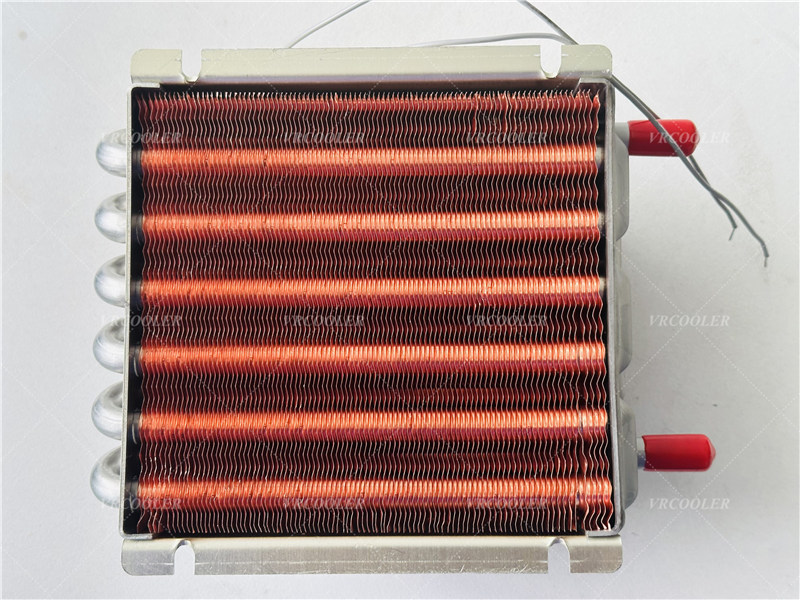

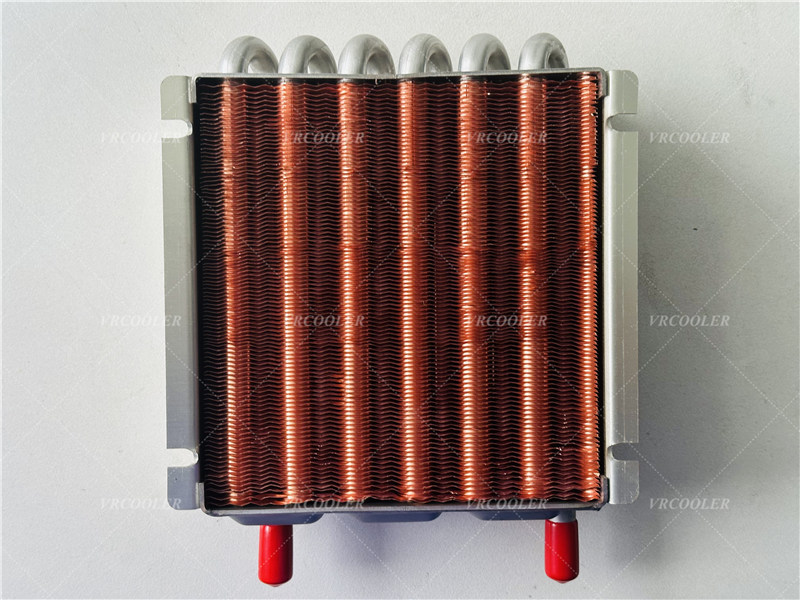

How To Choose The Appropriate Radiator for A Laser Welding Machine?

When choosing an appropriate radiator for a laser welding machine, the following factors need to be considered:

1. Laser Power and Heat Generation

Power Rating: The power of the laser welding machine is a primary consideration. High - power lasers, such as those with a power output of 5 kW or more, generate a significant amount of heat during operation. For such high - power machines, a liquid - cooled radiator is usually more suitable. Liquid - cooled systems have a higher heat - transfer coefficient and can handle the large heat loads more effectively. For example, a fiber - laser welding machine with a 10 - kW output might require a liquid - cooled radiator with a heat - dissipation capacity of at least several kilowatts to maintain the laser source and associated components at a safe operating temperature.

Duty Cycle: The duty cycle of the laser welding process (the ratio of the time the laser is on to the total cycle time) also affects heat generation. Machines with a high duty cycle will produce more cumulative heat over time. If the laser is used continuously for long periods, a more efficient radiator, such as a liquid - cooled one with a reliable cooling pump and a large - capacity heat exchanger, is needed to prevent overheating.

2. Operating Environment

Temperature and Humidity: The ambient temperature and humidity of the operating environment play a role in radiator selection. In a hot and humid environment, air - cooled radiators may have reduced efficiency because the temperature difference between the hot components and the surrounding air is smaller, limiting the rate of heat transfer. In such cases, a liquid - cooled radiator can better maintain the temperature of the laser welding equipment. Additionally, high humidity can cause condensation on the radiator surface, which may affect its performance. For example, in a tropical climate, a liquid - cooled system may be a better choice to avoid overheating due to the high ambient temperatures.

Dust and Contaminants: The presence of dust, metal particles, or other contaminants in the environment can clog the fins of air - cooled radiators or foul the cooling channels of liquid - cooled systems. If the laser welding machine is used in a dusty or dirty environment, such as a workshop with a lot of metalworking debris, a radiator with better filtration or protection against contaminants should be considered. For air - cooled radiators, this might involve using filters to prevent dust from entering the finned area. For liquid - cooled systems, it could mean having a more robust coolant filtration system to keep the coolant clean and the cooling channels unobstructed.

3. Size and Space Constraints

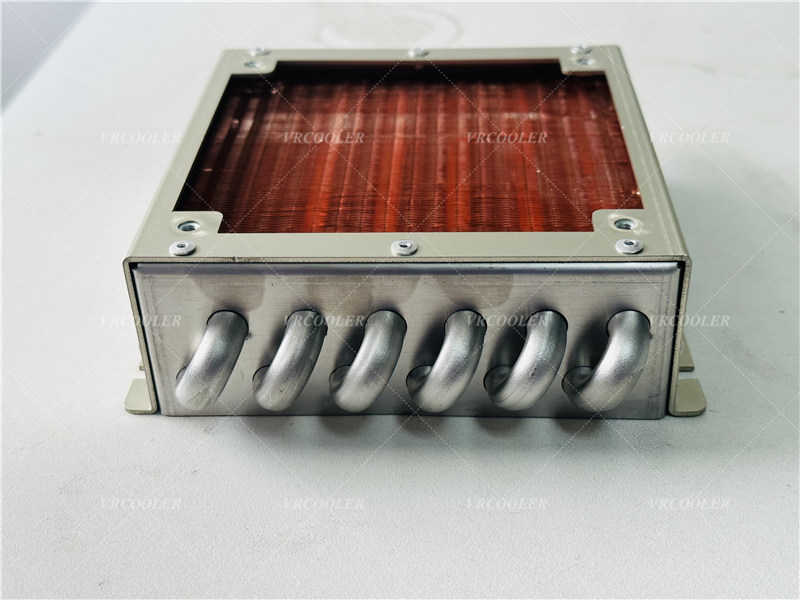

Physical Dimensions: The available space in the laser welding machine for the radiator installation is an important factor. Air - cooled radiators with their finned structures can take up a significant amount of space in terms of height and width. Liquid - cooled radiators, on the other hand, require space for the coolant reservoir, pump, and tubing. The size of the radiator must fit within the machine's enclosure without interfering with other components or the operation of the laser welding process. For example, in a compact, portable laser welding device, an air - cooled radiator might be preferred if space is at a premium, as it can be designed to have a more streamlined shape compared to a liquid - cooled system with its associated plumbing.

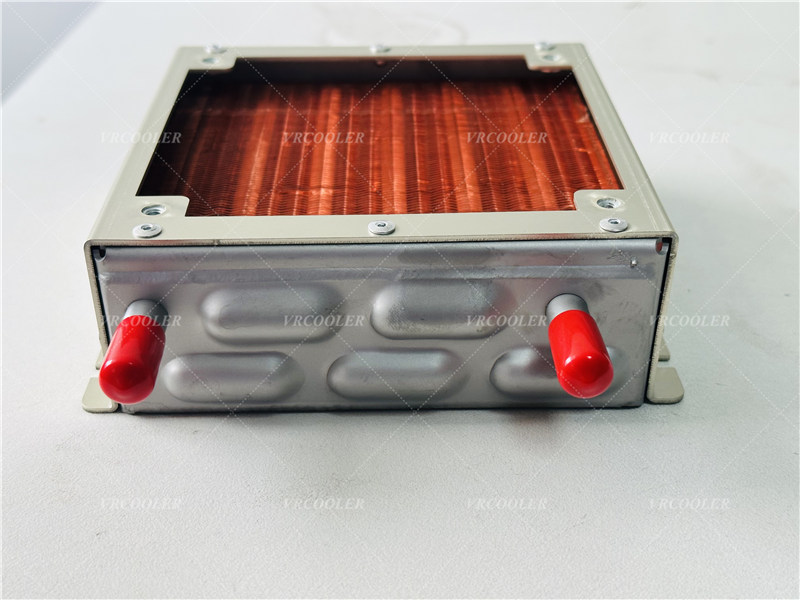

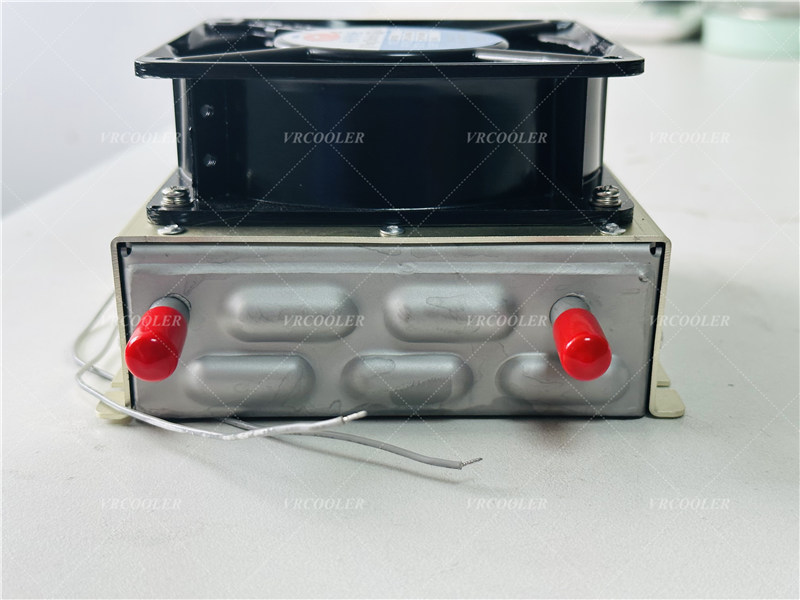

Mounting and Integration: Consider how the radiator will be mounted and integrated into the laser welding machine. The mounting points and connections should be compatible with the machine's design. For liquid - cooled radiators, the tubing connections need to be leak - proof and easy to install and maintain. Air - cooled radiators should have a secure mounting mechanism that allows for proper air - flow around the fins and easy access for cleaning and maintenance.
