How Fluid Coolers Support Thermal Stability in Utility Scale BESS Projects

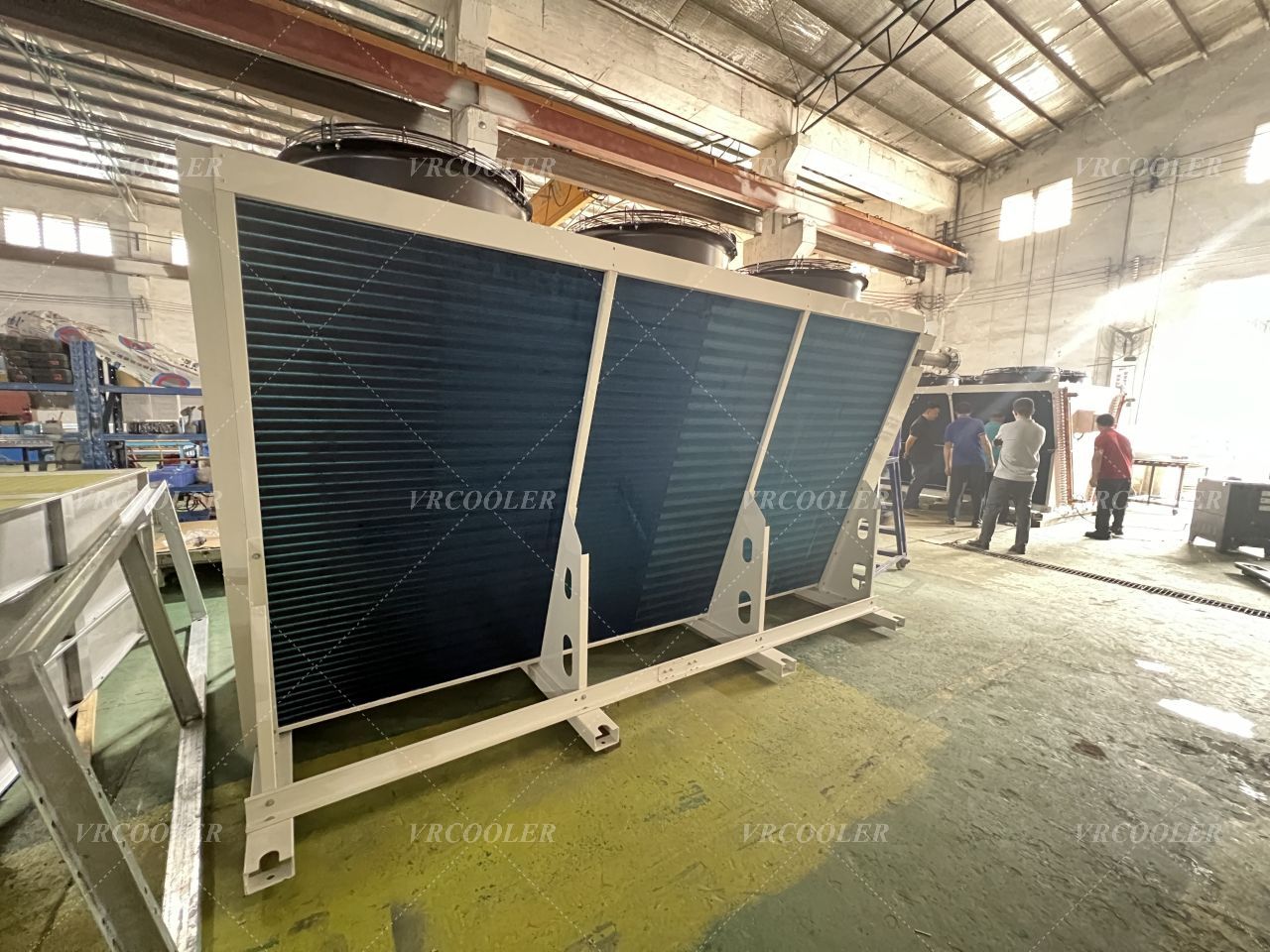

As utility-scale battery energy storage projects become larger and more power-dense, thermal control becomes a critical part of system design. A fluid cooler plays an important role in maintaining thermal stability by removing excess heat from battery cooling circuits and related electrical equipment. Without effective heat rejection, elevated temperature can reduce battery efficiency, shorten service life, and increase system risk.

In a BESS installation, heat is generated not only by the battery modules themselves, but also by inverters, converters, transformers, and auxiliary systems. A fluid cooler helps manage this heat by rejecting it to outdoor air. The warm coolant from the storage system flows through the cooler, where it is cooled before returning to the process loop. This continuous cycle supports safe and stable operation, especially during peak charging and discharging periods.

One important aspect of fluid cooler selection for BESS is ambient adaptability. Battery projects are often installed in environments with very different weather conditions, from hot desert regions to cold northern climates. The cooler must be sized to perform under the highest expected ambient temperature while also handling seasonal variation. For this reason, many energy storage projects use glycol-compatible designs and variable-speed fan control to improve flexibility.

Another important aspect is energy efficiency. In battery storage plants, auxiliary power consumption affects overall project performance. A well-designed fluid cooler can reduce fan energy demand while still delivering the required heat rejection. Optimized coil geometry, proper airflow design, and smart fan control all contribute to efficient operation.

Noise control is also a key factor, especially for projects located near commercial zones, substations, or residential areas. Low-noise fan arrangements, EC fan options, and carefully designed casing structures can help the cooler meet site-specific acoustic requirements. This makes the fluid cooler not only a thermal device, but also an important part of project compliance and site integration.

Main design considerations for BESS fluid coolers include:

• total thermal load of the storage system

• coolant type and concentration

• inlet and outlet fluid temperature

• maximum ambient temperature

• airflow requirement

• noise limitation

• installation footprint

• redundancy and reliability targets

• corrosion protection for outdoor service

Typical application areas include:

• utility-scale battery farms

• renewable energy storage stations

• solar plus storage projects

• wind plus storage plants

• grid support and peak shaving systems

• microgrid energy storage facilities

For these projects, a heat rejection unit for energy storage must deliver dependable performance under continuous cycling conditions. It should also match the modular nature of modern BESS design, where systems are often containerized and expanded in phases. Customization in coil material, fan type, frame design, and control integration can help the cooler fit the exact project layout.

A well-engineered fluid cooler for BESS improves thermal stability, supports battery health, and helps operators maintain efficient performance across changing load and weather conditions. As battery storage infrastructure continues to expand, this equipment remains a key part of dependable system cooling.
