Features of dry cooler
1. Material options
·Heavy-gauge hot-dip galvanized steel is used for unit steel panels and structural elements featuring a zinc aluminium coating.
2. Heat transfer media
·The dry cooler is constructed of staggered and seamless copper tubes (15,9 or 12,7 diameter) with aluminium, rippled and corrugated fins (0,14 or 0,17 thickness).
·2,5 mm fin spacing for optimal air turbulence
·Thick and seamless copper headers and threaded steel connections
·Pressure tested at 15 bar
·Try our options for aggressive environments: special pre-coated anti-corrosion aluminium fins or copper fins (0,2 mm thickness).
3. Air movement system
·Axial fan with exceptionally compact direct drive short integrated motor and fan guard.
·The fan features an impeller and motor and is balanced as a complete unit using dynamic single plane balancing. Balance grade is G6.3.
·Fan and motor totally maintenance free.
·Bearings seals and motor encapsulation for long service life.
Case Study
Projects name: Dry cooler for Sweden Garbage industry
Customer's request: Outdoor temp -20 to +30 driving all year, Water 10000 liters/houer In temp 80dg Out about 40c, Fan power 400volt 50Hz, Montage on the roof outdoor we have 3” pip up and down, Size inside 20 feet container
Our first solution:

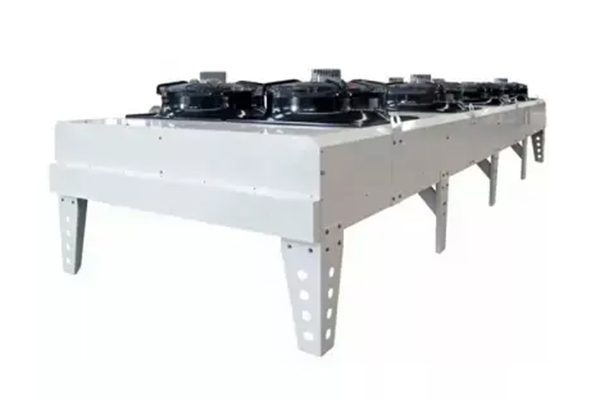

Customer's first feedback: This is a plane cooler, I want v type. I want about 2 meter x 5 meter v type. I want to have as big as possible V type. I’m going to montage more hydraulic pumps now. I don’t know what I need but pleas offer 1 ho fits in 20 feet container and then I fix the rest here in Sweden. To day we have 10 m3/h, But I can have less if you want. We are cooling water and then oil from the water.
Our reply: The cooler we designed is enough to cool the 10m3/h water. Will you increase the flow rate in the future?
Of course we can change our design to a V-type cooler.
Customer: Yes we will total have 40m3 Water in the future but maybe its better to take 2pc v type for 20m3
Please offer 2pc v type for 20m3/h.
Our second solution:

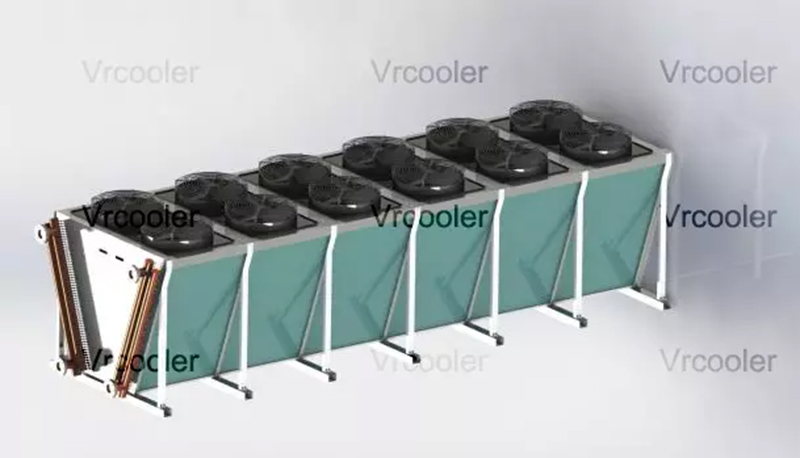

Customer's reply: Looks really good, please send me PI.
Engineering data

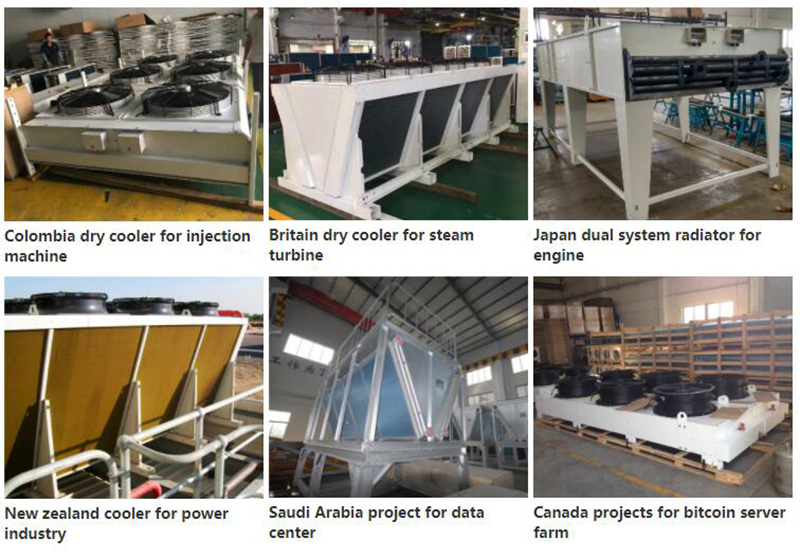

We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company.
Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
