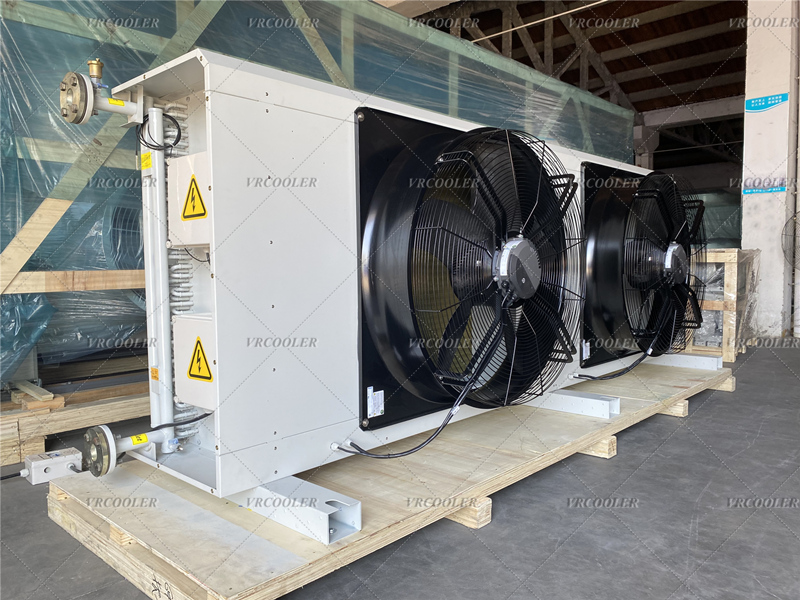

Dry Cooler for Hydro Miner Crypto Mining

Dry Cooler for Hydro Miner Crypto Mining

A dry cooler (or air-cooled heat exchanger) for hydro miner crypto mining is designed to dissipate heat generated by high-performance mining rigs, which operate 24/7 and produce significant thermal load. Unlike wet cooling systems, dry coolers use ambient air and fans to cool the working fluid (e.g., coolant or refrigerant) without water, making them suitable for water-scarce environments or eco-friendly setups.

Key Components and Working Principle

Heat Exchanger Core: Typically composed of aluminum fin copper/ss tubes, where the hot coolant from mining equipment flows through the tubes, and ambient air is forced over the fins by fans, transferring heat to the air.

Fan System: Axial or centrifugal fans that drive air across the finned tubes, crucial for heat dissipation efficiency.

Control System: Monitors coolant temperature and adjusts fan speed or operational modes to balance cooling performance and energy consumption.

Design Considerations for Crypto Mining Applications

(1) Thermal Load Calculation

Mining rigs (e.g., ASIC miners) can generate 300–1,500 W of heat per unit. A dry cooler must be sized to handle the total heat load of the mining farm (e.g., 100 miners = 30–150 kW heat).

Example: For a 50 kW heat load, a dry cooler with a heat transfer capacity of 55–60 kW (10–20% margin) is recommended to account for efficiency losses.

(2) Heat Exchanger Design

Aluminum Fin Copper/SS Tubes: corrosion-resistant, and high thermal conductivity. Fin pitch (distance between fins) should be optimized to balance heat transfer and dust accumulation (e.g., 2.5–3.5 mm pitch for dusty environments).

Tube Arrangement: Triangular or square pitch layouts; triangular layouts enhance heat transfer but may require more fan power.

(3) Fan Performance and Energy Efficiency

Fan Type: Axial fans are common for high airflow at low pressure drops, suitable for open-air setups. EC (electronically commutated) fans offer variable speed control, reducing energy use by 30–50% compared to fixed-speed fans.

Airflow Rate: Calculate based on heat load: 1 kW heat ≈ 1,000–1,200 m³/h airflow. For 50 kW, airflow needs ~50,000–60,000 m³/h.

Performance Optimization Strategies

Thermal Management Integration: Connect the dry cooler to a closed-loop coolant system for mining rigs, using glycol-water mixtures to prevent freezing in cold climates.

Hot Air Recirculation Prevention: Design the installation with proper spacing (e.g., 1–2 m between coolers) and baffles to avoid hot air being sucked back into the fans, which reduces efficiency.

Smart Controls: Implement PID (proportional-integral-derivative) controllers to adjust fan speed based on real-time temperature data, balancing cooling and noise levels.

Maintenance for Durability

Regular Cleaning:

Every 1–3 months: Inspect and clean fins with compressed air or water (if non-electric components are sealed) to remove dust, lint, or debris.

Annually: Chemical cleaning for heavy contamination (e.g., biodegradable detergents to prevent aluminum corrosion).

Component Inspection:

Check fan bearings for wear, replace every 2–3 years based on usage.

Verify tube connections for leaks (critical in closed-loop systems) and tighten loose fittings.

Monitor coolant pH and concentration (e.g., glycol ratio) to prevent corrosion and freezing.

Corrosion Protection: Apply anti-corrosion coatings on aluminum fins (e.g., epoxy or polymer-based coatings) in humid or salty environments.

Case Example: Hydro Miner Setup in a Moderate Climate

Setup: 200 ASIC miners (500 W each), total heat load = 100 kW.

Dry Cooler Specs:

Heat exchanger: Aluminum finned tubes (2.8 mm fin pitch, 19 mm tube diameter), surface area ~200 m².

Fans: Four 1.2 m diameter EC axial fans, total airflow ~120,000 m³/h.

Coolant: 50% glycol-water, flow rate ~15 m³/h.

Performance: Maintains miner inlet temperature <35°C in ambient 25°C, energy consumption ~8–10 kW (fans), water usage zero.

Challenges and Solutions

High Ambient Temperatures: In hot regions, pre-cool ambient air with misting systems (using minimal water) or install the cooler in a shaded, ventilated enclosure.

Noise Pollution: Use sound-dampening fan shrouds or acoustic baffles, especially in residential areas (target <65 dB at 10 m distance).

Cost Considerations

Initial Investment: $5,000–$15,000 for a 50–100 kW dry cooler system, depending on size and features.

Operational Savings: Compared to wet cooling, eliminate water treatment and evaporation losses (~500–1,000 L/day for a medium farm), reducing water and maintenance costs.
