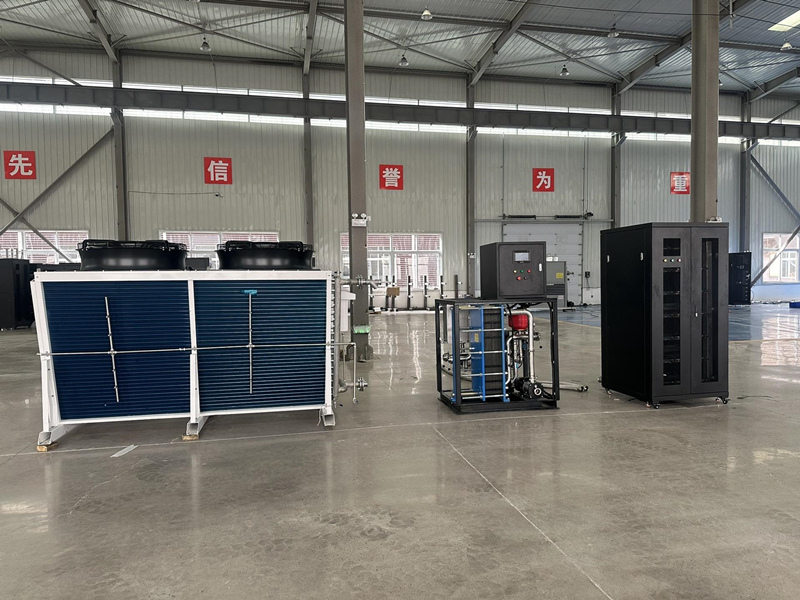

Dry Cooler And Plate Heat Exchanger for Shelf CDU Rack Solution Liquid / Liquid

The dry cooler and plate heat exchanger work together in an integrated manner in the shelf CDU rack solution. For instance, the plate heat exchanger can be used for intermediate heat transfer steps between different process liquid streams within the CDU, optimizing the temperature profiles of these streams. Then, when a final cooling step is required to bring a liquid stream down to a suitable storage or further processing temperature, the dry cooler can be utilized. The dry cooler takes the pre-cooled fluid from the plate heat exchanger and dissipates the remaining heat to the ambient air.

This combination allows for efficient use of energy and resources. It maximizes the benefits of the high heat transfer efficiency of the plate heat exchanger while leveraging the water-saving and low-maintenance aspects of the dry cooler. Overall, it helps in creating a more sustainable and efficient thermal management system for the Shelf CDU Rack Solution for liquid/liquid heat exchange.

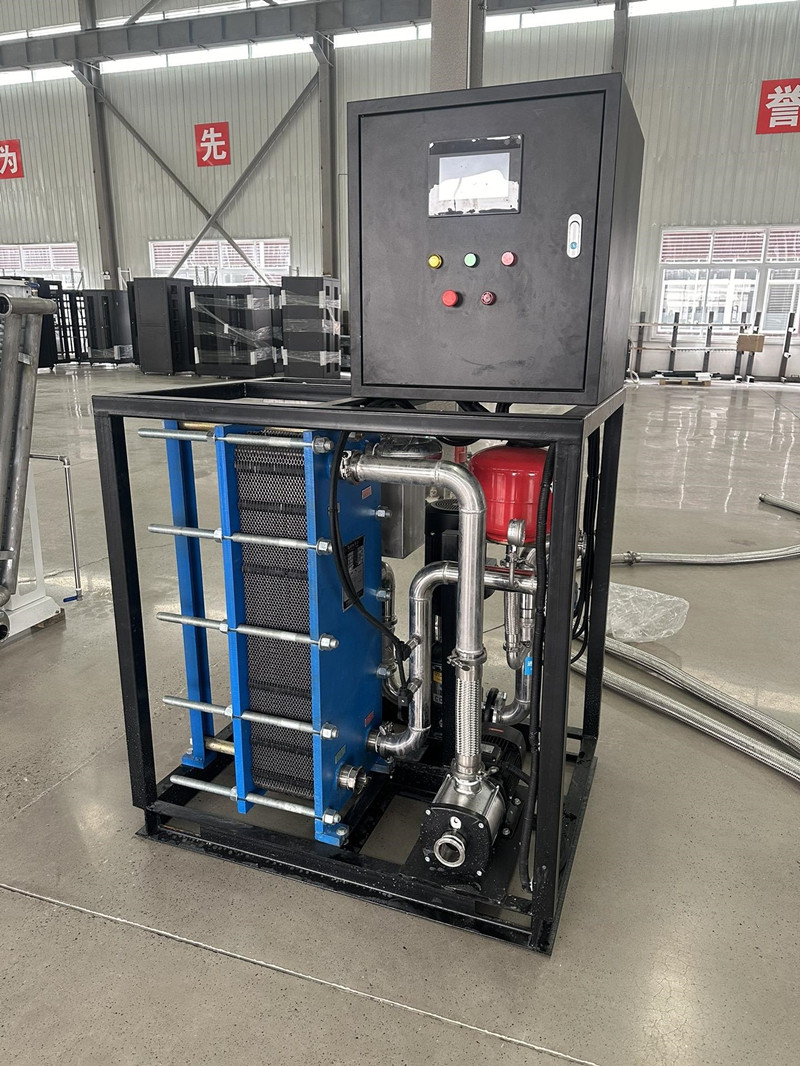

Plate Heat Exchanger

Working Principle

A plate heat exchanger consists of a series of thin, corrugated metal plates that are clamped together. Gaskets separate these plates to create distinct channels for the two liquid streams involved in the heat exchange process. The corrugations on the plates have multiple functions. They increase the surface area available for heat transfer and also induce turbulence in the fluid flow. This turbulence promotes better mixing at a microscopic level between the two liquids, enhancing the heat transfer efficiency. Heat is transferred from the warmer liquid to the colder one through the metal plates, driven by the temperature difference between the two fluid streams. The heat transfer rate follows Fourier's law of heat conduction, which relates it to factors like the temperature difference, surface area, and the thermal conductivity of the metal plates.

Advantages in Shelf CDU Rack Solution

High Efficiency: It offers a highly efficient way to transfer heat between different liquid streams within the CDU. For example, it can be used to preheat the incoming crude oil using a hotter product stream from a downstream process or to cool the distilled products with a cooling liquid. This efficient heat transfer helps in reducing energy consumption and improving the overall energy efficiency of the CDU.

Compact Design: Compared to some traditional heat exchanger designs like shell-and-tube heat exchangers, plate heat exchangers can achieve the same or even better heat transfer performance with a relatively smaller footprint. In a shelf CDU rack where space might be limited, this compactness is a valuable asset.

Customizability: The number of plates and the flow configuration can be adjusted according to the specific requirements of the liquid/liquid heat exchange in the CDU. This allows for fine-tuning the heat exchanger to match the exact flow rates and temperature differentials of the various process streams.

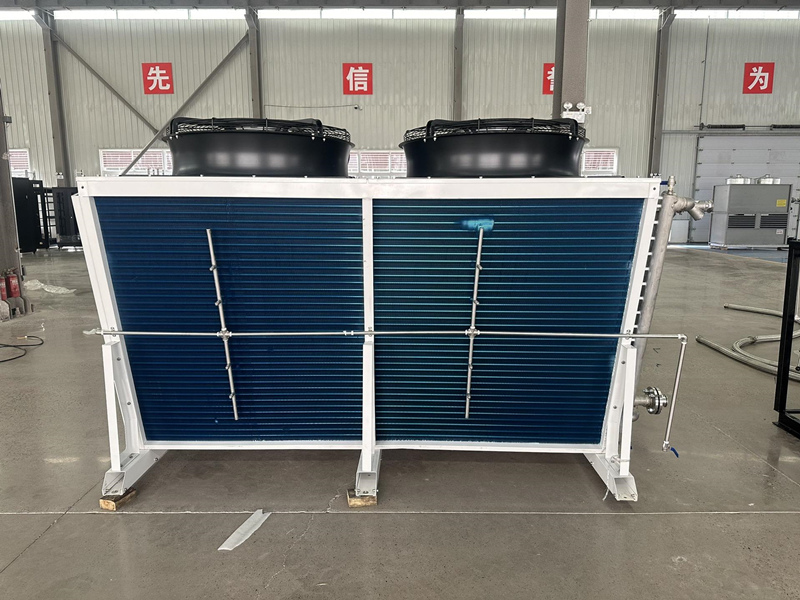

Dry Cooler Working Principle

A dry cooler operates by using ambient air to cool a fluid. It typically consists of a finned tube heat exchanger where the fluid to be cooled flows through the tubes, and ambient air is circulated around the fins. Heat is transferred from the hot fluid inside the tubes to the cooler ambient air through the walls of the tubes and the fins. The air can be circulated naturally by convection (in some cases where the temperature difference is sufficient to create a natural air flow) or, more commonly, by using fans to force the air across the fins. This forced convection enhances the cooling rate and enables more effective heat dissipation to the atmosphere.

Advantages in Shelf CDU Rack Solution

Water Conservation: Unlike some cooling systems that rely on water as a cooling medium (such as water-cooled heat exchangers that require a continuous supply of cooling water and may involve water evaporation or disposal issues), dry coolers use only ambient air. This makes them an environmentally friendly option in terms of water usage, especially in areas where water resources are scarce or where minimizing water consumption is a priority for the CDU operation.

Low Maintenance: Since there is no water involved in the cooling process, there is no need to deal with issues like water treatment, corrosion caused by water, or problems related to water leakage and scaling within the cooling system. This generally results in lower maintenance requirements compared to water-cooled alternatives.

Independence from External Water Sources: Dry coolers can operate without the need for a connection to an external water supply or a cooling water loop. This provides greater flexibility in the location of the CDU rack, especially in remote areas or in installations where setting up a reliable water supply infrastructure might be challenging.
