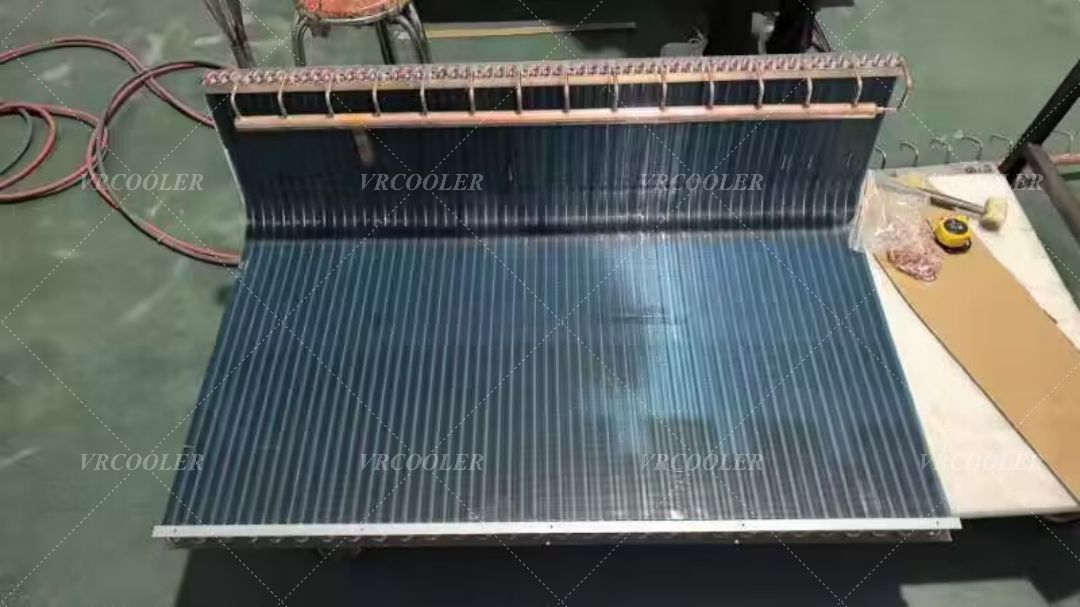

Custom-Made Air-to-Refrigerant DX Evaporator Coil for Air Source Heat Pump Systems

In an air source heat pump, the evaporator coil is one of the most important components in the entire refrigeration cycle. It is the part that absorbs heat from the air and transfers that energy to the refrigerant, allowing the system to deliver efficient heating even when outdoor temperatures are relatively low. For equipment manufacturers and system designers, a custom-made air-to-refrigerant DX evaporator coil is often the best way to achieve the right balance of performance, size, and reliability.

A DX evaporator coil works by allowing low-pressure refrigerant to expand and evaporate inside the tubes while air flows across the finned surface. As the refrigerant changes state from liquid to vapor, it absorbs heat from the passing air. In an air source heat pump, this process makes it possible to extract usable heat from ambient air and move it into the building or process being heated. The coil therefore has a direct effect on system efficiency, defrost behavior, pressure drop, and overall seasonal performance.

Standard coils can work for some applications, but many air source heat pump systems require a more specific design. That is where custom manufacturing becomes valuable. A custom-made DX evaporator coil can be engineered according to the unit’s actual operating conditions, refrigerant type, airflow, cabinet dimensions, compressor capacity, and ambient design temperature. This gives the manufacturer more freedom to optimize performance instead of trying to fit the system around a standard coil size.

The design of the evaporator coil has a major influence on how the heat pump performs in real conditions. Tube diameter, circuiting, row number, fin spacing, and face area all affect heat transfer and frost formation. In colder climates, the fin pitch must be selected carefully so the coil can maintain good airflow without frosting too quickly. In milder climates, the design may focus more on compactness and high efficiency. A well-designed DX evaporator coil helps the heat pump absorb heat efficiently while keeping refrigerant distribution balanced across the entire coil surface.

For most air source heat pumps, copper tubes and aluminum fins are a common and practical combination because they offer strong thermal conductivity and mature manufacturing quality. Depending on the installation environment, protective coatings may also be added to improve resistance to moisture, salt spray, or industrial pollution. In coastal or corrosive areas, this can make a real difference in long-term coil life. Header design, distributor arrangement, and connection orientation can also be customized to match the refrigeration circuit and unit layout.

Another advantage of a custom evaporator coil is installation flexibility. Air source heat pumps are produced in many forms, including rooftop packaged units, split systems, monobloc heat pumps, modular heating units, and OEM equipment for special applications. A custom coil can be designed to suit the available space, fan arrangement, drainage layout, and service access requirements. This is especially important when the unit has a compact cabinet or when multiple components must fit into a limited enclosure.

In actual operation, the evaporator coil does more than absorb heat. It also affects how smoothly the unit defrosts, how stable the suction conditions remain, and how efficiently the compressor can work. If the coil is undersized, the system may struggle in low ambient conditions. If the refrigerant circuiting is poor, performance may drop and uneven evaporation can occur. Good custom design helps avoid these problems and supports more stable heating capacity across a wider operating range.

For OEMs and project developers, a custom-made air-to-refrigerant DX evaporator coil is not just a coil supplier item. It is a critical thermal component that influences the efficiency, durability, and market competitiveness of the complete heat pump. With the right design, the coil can improve heat absorption, reduce airflow resistance, support reliable defrosting, and help the final unit perform better in everyday use.

As demand for energy-efficient heating continues to grow, air source heat pumps are being used in residential, commercial, and industrial applications more than ever before. In all of these systems, the evaporator coil remains a core part of the design. A custom-made DX evaporator coil gives manufacturers the ability to tailor performance to real-world conditions and build heat pump systems that are compact, efficient, and dependable.
