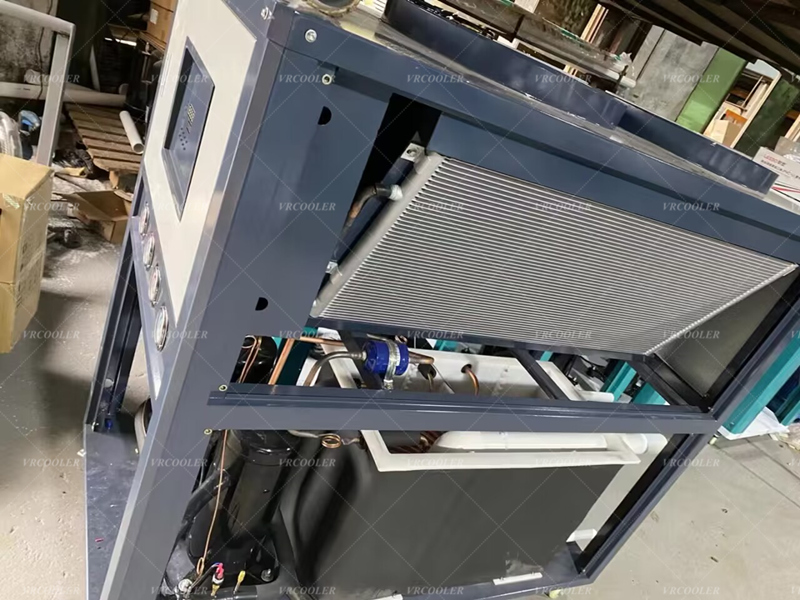

Case Study: Implementation of Microchannel Heat Exchanger Condenser for R407C Gas

Case Study: Implementation of Microchannel Heat Exchanger Condenser for R407C Gas

Overview

This case study explores the replacement of a traditional condenser with a microchannel heat exchanger (MCHE) condenser using R407C refrigerant gas. The objective was to improve cooling efficiency, reduce refrigerant charge, and enhance overall system performance in an HVAC application.

Background

An industrial facility faced issues with the efficiency and performance of its existing HVAC system, which used a conventional fin-and-tube condenser with R407C refrigerant. Frequent maintenance and high energy consumption prompted the need for an upgrade. A microchannel heat exchanger condenser was chosen due to its advantages in heat transfer efficiency and reduced refrigerant charge.

Objectives

Improve the cooling efficiency of the HVAC system.

Reduce the refrigerant charge required for the system.

Decrease energy consumption and operational costs.

Enhance system reliability and reduce maintenance frequency.

Solution: Microchannel Heat Exchanger Condenser

Key Components

Microchannel Heat Exchanger (MCHE) Condenser: High-efficiency condenser designed for use with R407C refrigerant.

R407C Refrigerant: A widely used HFC refrigerant blend suitable for air conditioning applications.

Control System: Automated controls for optimizing condenser operation and monitoring system performance.

Safety Equipment: Pressure sensors, safety valves, and other safety mechanisms to ensure reliable operation.

Implementation Steps

Assessment and Planning

Conducted a thorough assessment of the existing HVAC system, including cooling load calculations and system specifications.

Evaluated the feasibility of integrating an MCHE condenser with the current system.

Selected a suitable MCHE condenser model based on the cooling capacity required and compatibility with R407C refrigerant.

Selection of Microchannel Heat Exchanger Condenser

Preparation for Installation

Scheduled the replacement during a planned maintenance period to minimize disruption.

Ensured all necessary tools, equipment, and safety gear were available.

Arranged for qualified HVAC technicians to perform the installation.

System Shutdown and Refrigerant Recovery

Safely shut down the existing HVAC system.

Recovered the existing R407C refrigerant using a refrigerant recovery machine to comply with environmental regulations.

Removal of the Old Condenser

Disconnected the electrical connections and refrigerant lines.

Removed the old fin-and-tube condenser from the system.

Inspected other system components for any signs of damage or wear.

Installation of the MCHE Condenser

Installed the new MCHE condenser, ensuring proper alignment and secure mounting.

Connected the refrigerant lines and electrical connections.

Integrated the condenser with the control system for automated operation.

Refrigerant Charging and System Testing

Conducted a vacuum test to check for leaks in the system.

Recharged the system with the recovered R407C refrigerant, ensuring the correct charge amount.

Performed thorough testing to ensure the MCHE condenser operated correctly and efficiently.

Monitored system performance, checking for proper temperature and pressure levels.

Training and Maintenance Plan

Provided training to the maintenance staff on the operation and maintenance of the MCHE condenser.

Developed a regular maintenance schedule to ensure optimal performance and longevity of the system.

Included routine inspections, cleaning, and monitoring of refrigerant levels and system pressures.

Results

Improved Efficiency: The MCHE condenser significantly improved the cooling efficiency of the HVAC system, leading to better performance.

Reduced Refrigerant Charge: The system required less refrigerant due to the higher efficiency of the MCHE, reducing overall operational costs.

Energy Savings: Enhanced heat transfer efficiency led to lower energy consumption, resulting in cost savings.

Increased Reliability: The new condenser reduced the frequency of maintenance issues, enhancing system reliability.

Environmental Benefits: The reduced refrigerant charge and improved efficiency contributed to a lower environmental impact.

Conclusion

The replacement of the traditional condenser with a microchannel heat exchanger condenser using R407C refrigerant successfully addressed the cooling and efficiency challenges faced by the industrial facility. The implementation resulted in improved system performance, reduced operational costs, and enhanced reliability. This case study highlights the benefits of using advanced heat exchanger technology in modern HVAC applications.
