Aluminum Heat Exchanger Vs Stainless Steel Vs Copper
When selecting a heat exchanger material (aluminum, stainless steel, or copper), the core trade-off lies in heat transfer efficiency, corrosion resistance, cost, weight, and processability—factors that directly determine adaptability to specific application scenarios (e.g., heat pumps, HVAC, industrial cooling). Below is a comprehensive comparison of the three materials, including key performance indicators, advantages/disadvantages, and typical application alignments.
| Performance Indicator | Aluminum | Stainless Steel (e.g., 304, 316) | Copper |
|---|---|---|---|
| Thermal Conductivity (W/m·K) | ~237 (medium, 60% of copper) | ~16-21 (low, 4-5% of copper) | ~385 (high, best among the three) |
| Corrosion Resistance | Moderate (depends on coating) | Excellent (resists acids, salts, humidity) | Poor (susceptible to acids, ammonia, seawater) |
| Density (g/cm³) | 2.7 (lightest, 1/3 of steel) | 7.9 (heaviest) | 8.9 (heavy, ~80% of steel) |
| Cost (per unit weight) | Lowest (1/3 of copper, 1/2 of 304 SS) | Highest (2-3x copper for 316 SS) | Medium |
| Processability | Good (easy to bend, weld, form fins) | Poor (hard to weld; requires special processes) | Excellent (easy to solder, draw into thin tubes) |
| Working Temperature Range | -270°C ~ 120°C (long-term) | -270°C ~ 870°C (wide range) | -270°C ~ 250°C (long-term) |
| Service Life (typical) | 5-10 years (with coating) | 15-20+ years (no coating) | 10-15 years (no severe corrosion) |
Detailed Advantage/Disadvantage Analysis
A. Aluminum Heat Exchangers
Aluminum is a "cost-performance balanced" option, optimized for scenarios where weight and cost are critical, and corrosion risks are low.
Advantages:
Lightweight & Low Cost: Its density is only 1/3 that of stainless steel and 1/3.3 that of copper, reducing equipment weight (e.g., 30% lighter outdoor units for air-source heat pumps) and easing installation (e.g., ceiling-mounted fan coils). Cost per unit weight is the lowest—ideal for mass-produced household appliances.
Good Formability: Easy to extrude into thin tubes (φ5-9.5mm) and press into fins (0.1-0.15mm thick), enabling compact designs (e.g., slim evaporators for heat pump water heaters).
Natural Oxide Film Protection: Aluminum forms a dense Al₂O₃ film (5-10nm) on its surface, resisting mild corrosion from dry air or clean water. With additional coatings (e.g., hydrophilic, anti-corrosion spray), it can withstand moderate humidity (e.g., southern China’s rainy seasons).
Disadvantages:
Low Thermal Conductivity: Only 60% of copper, requiring larger heat transfer areas (e.g., more fins or longer tubes) to match copper’s efficiency—unsuitable for high-heat-load scenarios.
Poor Corrosion Resistance in Harsh Environments: The oxide film is easily damaged by acids, alkalis, or high-salt fog (e.g., coastal areas with direct sea breeze), leading to pitting corrosion.
Limited High-Temperature Tolerance: Long-term use above 120°C causes softening, making it incompatible with high-temperature heat pumps (e.g., industrial drying above 150°C).
B. Stainless Steel Heat Exchangers
Stainless steel (especially 316L) is a "durability-focused" option, designed for corrosive, high-temperature, or high-pressure scenarios where service life is a top priority.
Advantages:
Exceptional Corrosion Resistance: Chromium (Cr) and nickel (Ni) in stainless steel form a passive film that resists acids (e.g., industrial wastewater), alkalis, seawater, and high-salt fog. 316L (with molybdenum) is even suitable for marine or chemical environments.
Wide Temperature & Pressure Range: Tolerates long-term use at -270°C (cryogenic) to 870°C (high-temperature) and high pressures (e.g., 10-20MPa), making it ideal for industrial heat pumps (e.g., chemical material heating).
Long Service Life: Unaffected by most harsh media, with a typical lifespan of 15-20+ years—2-3x that of aluminum (with coating).
Disadvantages:
Extremely Low Thermal Conductivity: Only 4-5% of copper, requiring significantly larger heat transfer areas or enhanced designs (e.g., micro-channels) to avoid inefficiency.
High Cost & Weight: 316L stainless steel costs 2-3x more than copper, and its density is higher than copper—increasing equipment manufacturing and installation costs (e.g., requiring stronger brackets for heavy industrial units).
Poor Processability: Hard to weld (needs argon arc welding) and difficult to form into thin fins or complex tube shapes—limiting use in compact consumer devices (e.g., household heat pumps).

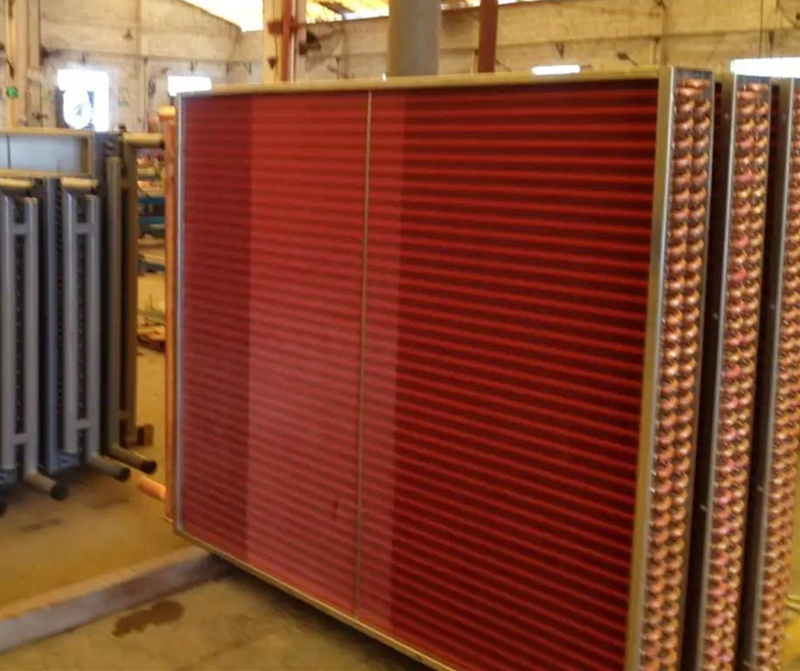

C. Copper Heat Exchangers
Copper is an "efficiency-focused" option, dominating scenarios where heat transfer speed and reliability are critical.
Advantages:
Superior Thermal Conductivity: The highest among the three (385 W/m·K), enabling fast heat exchange with smaller volumes—ideal for high-efficiency requirements (e.g., air-source heat pumps in frigid regions [-20°C below]).
Excellent Processability: Easy to solder, draw into ultra-thin tubes (φ3-5mm), and bond with fins (e.g., copper tube-copper fin structures), supporting high-performance designs (e.g., multi-pass evaporators).
Reliable in Moderate Environments: Resists mild humidity and clean water corrosion (e.g., indoor HVAC systems), with a stable 10-15 year lifespan—no need for frequent maintenance.
Disadvantages:
High Cost & Weight: More expensive than aluminum (3x) and heavier than aluminum—increasing the cost of household appliances (e.g., raising air-source heat pump prices by 15-20%).
Poor Corrosion Resistance in Specific Media: Susceptible to corrosion from acids (e.g., acidic rain), ammonia (e.g., industrial exhaust), and seawater—unsuitable for coastal or chemical environments without anti-corrosion treatment (e.g., nickel plating).
Risk of "Copper Plating" in Water Systems: When in contact with aluminum components in water (e.g., water-side heat pumps), electrochemical reactions can cause copper ions to deposit on aluminum, reducing efficiency.
Application Alignment in Heat Pump Systems
The choice of material directly depends on the heat pump’s working medium (air/water/chemicals), operating environment (temperature/humidity/corrosion), and cost targets. Below is a scenario-specific breakdown:
| Heat Pump Type | Recommended Material | Rationale |
|---|---|---|
| Household Air-Source Heat Pumps (Mild Climates) | Aluminum | Low cost, lightweight (easy to install on balconies), and sufficient efficiency for -5°C~5°C. Hydrophilic coatings solve mild humidity issues. |
| Air-Source Heat Pumps (Frigid Regions [-20°C below]) | Copper | High thermal conductivity ensures efficient heat absorption in low temperatures; avoids performance loss from aluminum’s lower efficiency. |
| Water-Source Heat Pumps (Direct Contact with Groundwater/Seawater) | Stainless Steel (316L) | Resists corrosion from mineral-rich groundwater or seawater; long lifespan reduces maintenance costs. |
| Water-Source Heat Pumps (Indoor Fan Coils) | Aluminum/Copper | Indoor air is clean (no corrosion); aluminum for cost savings, copper for high-efficiency models. |
| Industrial Heat Pumps (High-Temperature/Corrosive Media) | Stainless Steel (316L) | Tolerates high temperatures (e.g., 150°C industrial drying) and corrosive chemicals (e.g., chemical wastewater heating). |
| Marine Heat Pumps (Coastal Areas) | Stainless Steel (316L) | Resists high-salt fog corrosion; avoids copper/aluminum’s rapid degradation. |
| Commercial Air-Source Heat Pumps (Cost-Sensitive) | Aluminum | Modular design (multiple evaporators) benefits from aluminum’s low cost; lightweight reduces roof load-bearin pressure. |
Summary of Selection Guidelines
Prioritize Cost & Weight: Choose aluminum (e.g., household air-source heat pumps in southern China).
Prioritize High Efficiency & Frigid Environments: Choose copper (e.g., air-source heat pumps in northeastern China).
Prioritize Corrosion Resistance & Long Lifespan: Choose stainless steel (e.g., marine heat pumps, industrial chemical heat pumps).
Balance Efficiency & Cost: Use hybrid designs (e.g., copper for core heat-transfer sections, aluminum for auxiliary sections in medium-efficiency heat pumps).
