Advantages and disadvantages of fin and tube heat exchangers?

Views: 2     Author: Site Editor     Publish Time: 2023-08-16      Origin: Site

Advantages and disadvantages of fin and tube heat exchangers?

Fin and tube heat exchanger is a widely used heat exchanger whose main feature is the addition of fins to the outside of the traditional heat exchanger tube. These fins greatly increase the contact area with the external fluid, thereby improving heat transfer efficiency. The core component of the finned heat exchanger is the finned tubes, which have a series of fins on the outside of these tubes for increasing the contact area with the external fluid to achieve higher heat transfer efficiency.

The Fin and tube heat exchanger tubes are predominantly 15.88mm, 12.7mm and 9.52mm. In finned heat exchanger, the refrigerant circulates in the heat exchanger tube and exchanges heat through contact with the fins.

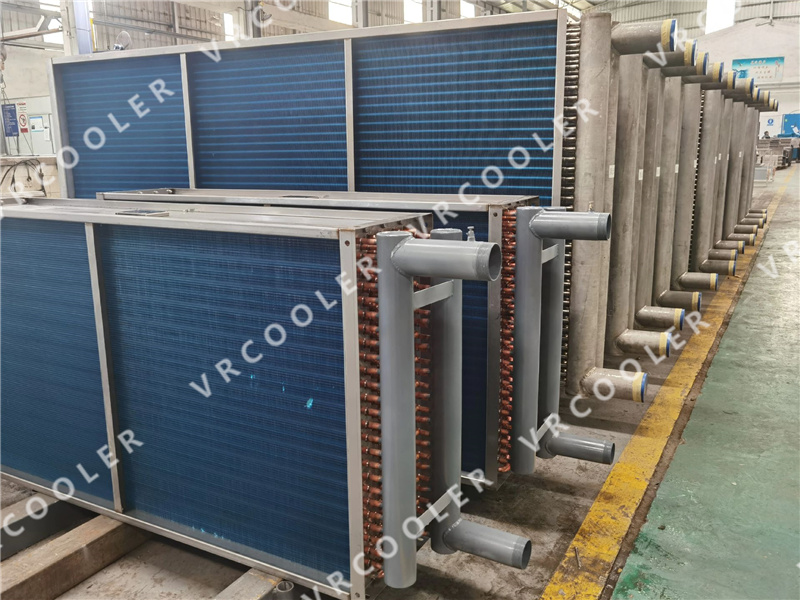

Air-Water Heat Exchanger

A Fin and tube heat exchanger consists of the following main components:

Fin: usually made of aluminium or other high thermal conductivity material used to increase the heat transfer area.

Tubes: the main channel through which the fluid flows and can be round, oval or flat.

Collector: used to distribute and collect the fluid, ensuring that it is evenly distributed throughout the tubes.


Highly efficient heat transfer performance: due to the addition of fins, the heat transfer area is greatly increased, thus improving the heat transfer efficiency.

Flexible design: fins and tubes of different shapes and sizes can be selected as required.

Space saving: due to its efficient heat transfer performance, finned heat exchangers are usually smaller and lighter than other types of heat exchangers.


Higher manufacturing costs: manufacturing costs are usually higher due to the additional materials and machining processes required.

More difficult to clean and maintain: due to the small gap between the fins and the tubes, this can lead to the accumulation of dust and impurities, requiring regular cleaning.
