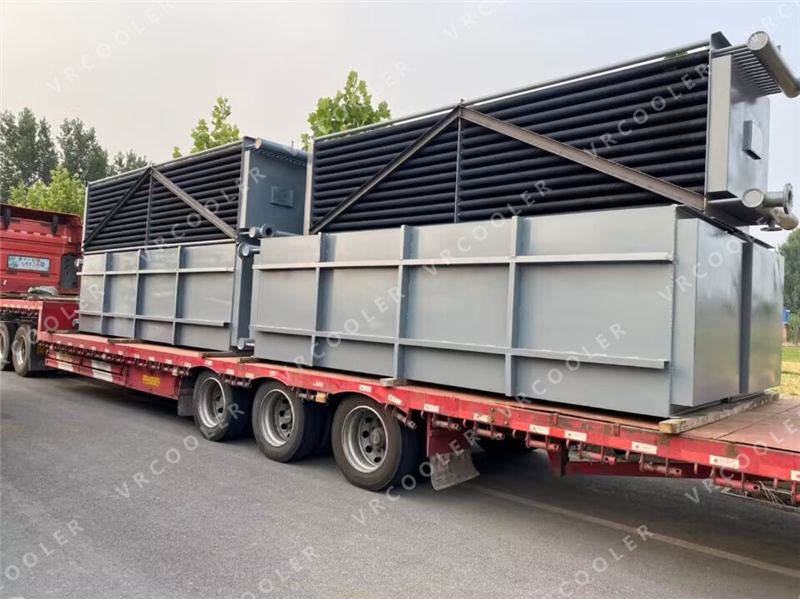

Finned Aluminum Pipe Boiler Economizers

Finned aluminum pipe boiler economizers are heat exchange devices installed in the lower part of the flue at the boiler's tail, which play a crucial role in enhancing boiler efficiency and conserving energy.

Structure and Working Principle

Structure: They typically consist of steel base tubes with aluminum fins closely attached to the surface. The aluminum fins can be in the shape of spirals or rectangles. The fins are joined to the steel tubes by processes like high-frequency welding, rolling, or rolling forming.

Working Principle: Boiler flue gas contains a great deal of heat. As the flue gas flows over the finned aluminum pipes, the high thermal conductivity of the aluminum fins allows them to quickly absorb the heat from the flue gas and transfer it to the steel base tubes. The water flowing through the steel tubes absorbs the heat, increasing its temperature and reducing the temperature of the flue gas, thus achieving the recovery and utilization of waste heat.

Advantages

High Heat Exchange Efficiency: The aluminum fins significantly increase the heat exchange area. For example, compared to ordinary bare tube economizers, the heat exchange efficiency can be increased by 20% - 50%, which improves the heat transfer rate and enables more efficient use of heat energy in the flue gas.

Good Corrosion Resistance: Aluminum has good corrosion resistance in many environments. The aluminum fins can protect the steel base tubes to a certain extent, reducing the corrosion risk of the economizer and prolonging its service life.

Lightweight and Easy to Install: Aluminum has a relatively low density, so the finned aluminum pipe economizer is lightweight. This makes it convenient to transport, install, and maintain, reducing installation costs and labor intensity.

Compact Structure: It can be designed into a compact structure, taking up less space in the boiler room and being suitable for various boiler installation environments, which helps to optimize the layout of the boiler system.

Applications

Finned aluminum pipe boiler economizers are widely used in various industrial fields that use boilers, such as the power, chemical, metallurgical, and building materials industries. They are applicable to different types of boilers, including coal-fired boilers, oil-fired boilers, gas-fired boilers, and biomass boilers.

Selection Considerations

Boiler Parameters: It is necessary to select an appropriate finned aluminum pipe boiler economizer based on the boiler's rated power, flue gas volume, flue gas temperature, and other parameters to ensure that it can match the boiler's heat exchange requirements.

Working Environment: Consider the characteristics of the flue gas, such as its composition, humidity, and dust content. If the flue gas contains corrosive gases or a large amount of dust, it is necessary to choose an economizer with better corrosion resistance and anti-wear performance.

Material Quality: Ensure that the aluminum fins and steel base tubes are of high quality to guarantee the economizer's heat exchange performance and service life. High-quality materials have better thermal conductivity, corrosion resistance, and mechanical strength.
